8 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 17" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable
8 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 17" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support - Image 2
8 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 17" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support - Image 3
8 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 17" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support - Image 4
8 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 17" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support - Image 5
8 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 17" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support - Image 6
8 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 17" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support - Image 7

8 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 17" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support

$1,837.99

KVM Console | 1U | VGA | 1280x1024 | Cables & Mounting Hardware Included

SKU: RKCONS1708K Category:

Specifications & Compliance

UPC
065030872485
Brand
StarTech.com
Included in Package

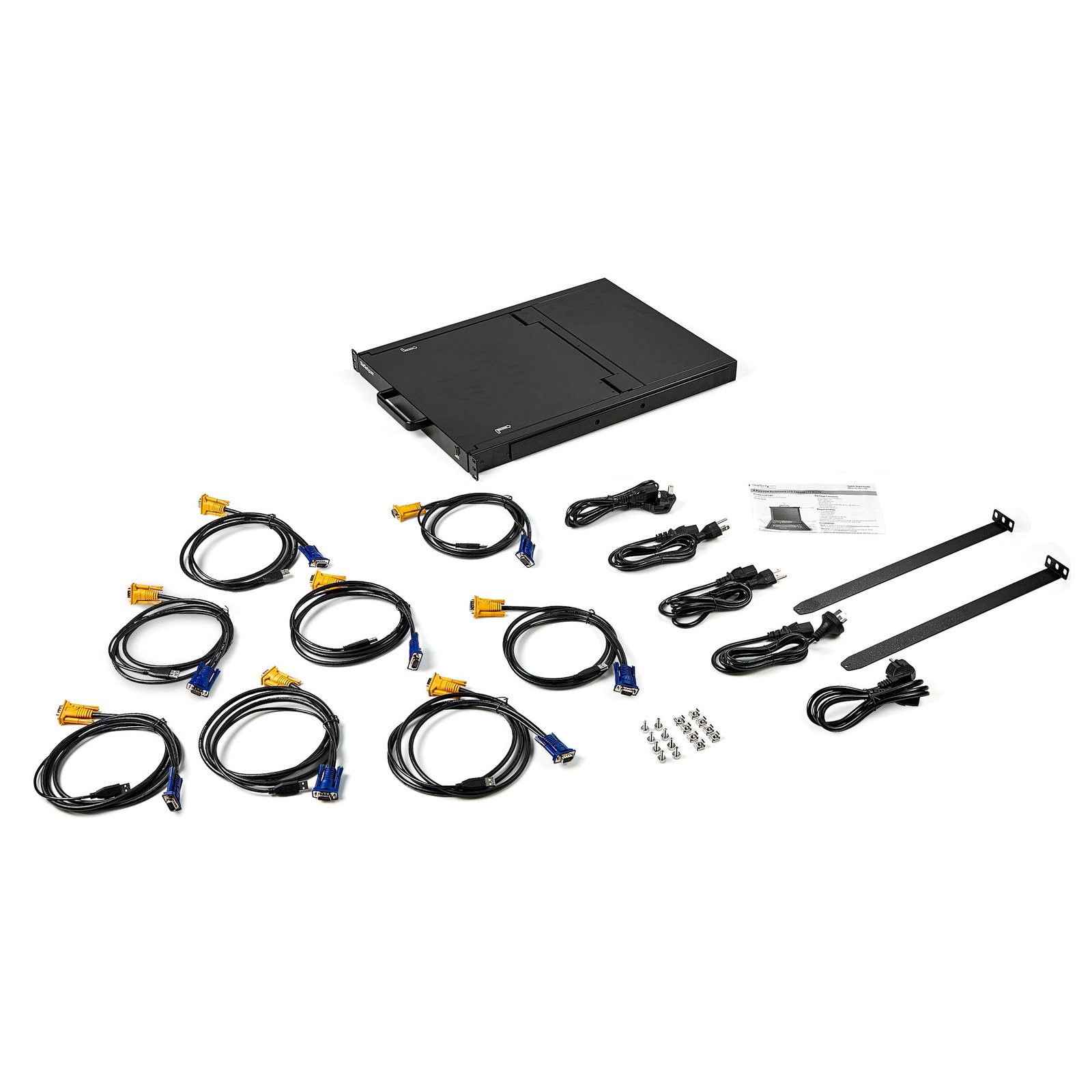

1 - KVM console, 8 - KVM cables, 8 - M5 cage nuts, 8 - M5 screws, 5 - Power Cords (NA, JP, UK, EU, ANZ), 2 - Mounting Rails, 1 - Quick-Start Guide
Shipping (Package) Weight
43.4 lb [19.7 kg]
Weight of Product
37.5 lb [17.0 kg]
Product Length
24.5 in [62.3 cm]
Product Width
18.9 in [48.0 cm]
Product Height
16.5 in [42.0 cm]
Package Depth
30.2 in [76.7 cm]
Package Width
24.2 in [61.5 cm]
Package Height
7.2 in [18.2 cm]
Color
Black
Warranty
2 Years
Connector 1
VGA
Connector 1 (Quantity)
1
Package Quantity
1
Connector 2
VGA
Connector 2 (Quantity)
1
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Humidity
10 ~ 80% RH
Material
Steel
Power Source
International Power Cords
Special Notes
The minimum mounting depth of this rackmount console is less than the length of the console itself. Please consider the length of the rackmount console when evaluating if it will fit into your rack.
Input Voltage
100 - 240 AC
Connector 3
USB-A (480Mbps, 2.5W)
Connector 3 (Quantity)
2
Power Consumption
17W
MTBF
50, 000 Hrs
LED Indicators
8 - Green/Red - Online/Selected LED
Input Current
1.5A
Host Connector 1
VGA
Host Connector 1 (Quantity)
8
Audio
No
Supported Resolutions
Resolutions up to 1280 x 1024 @ 60Hz
Maximum Analog Resolutions
1280 x 1024
Cascadable
No
Rack-Mountable
Yes
U Height
1U
Number of KVM Ports
8
IP Control
No
Supported Platforms
USB
PC Video Type
VGA
Number of Monitors Supported
1
On-Screen Display
Yes
Cables Included
Yes
Port Selection Support
Push Button, Hotkeys, and OSD (On Screen Display)
Maximum Mounting Depth
35.4 in [90 cm]
Maximum Number of Users
1
Aspect Ratio
5:4
Minimum Mounting Depth
22.0 in [56 cm]
Front Door Key Lock
No
Display Size
17"
