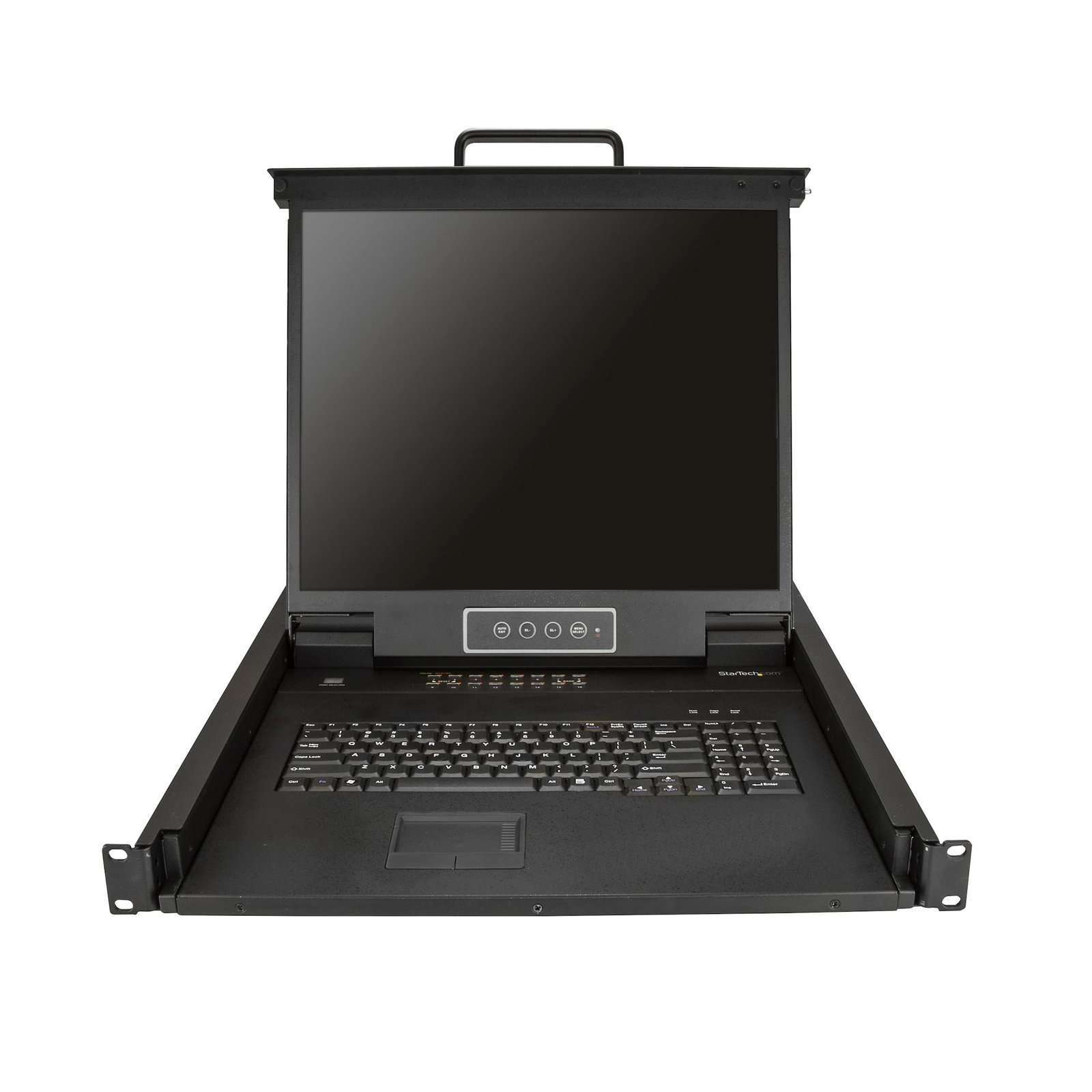

16 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 19" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support

Specifications & Compliance

UPC

065030872539

Brand

StarTech.com

Included in Package

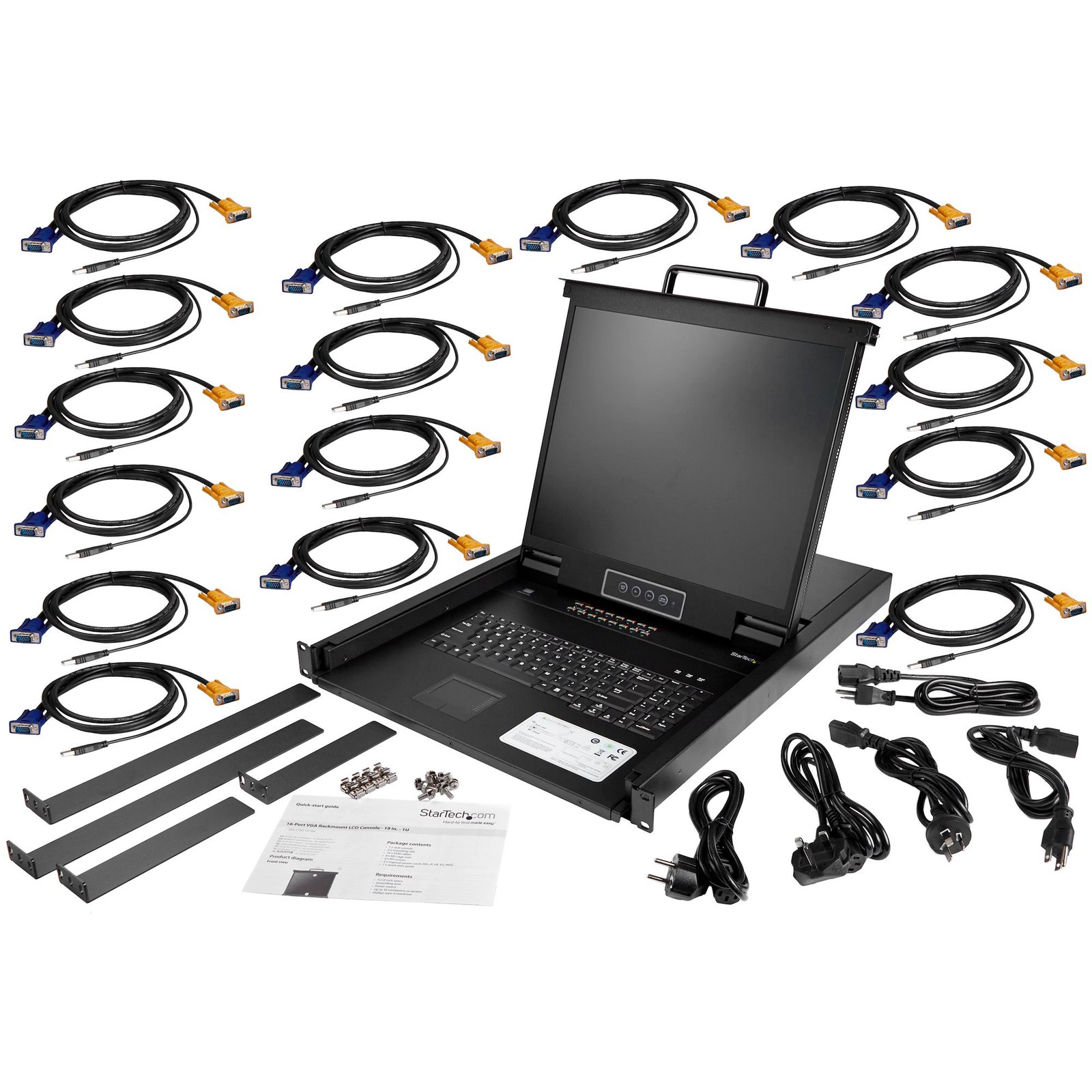

1 - KVM console, 16 - 6 ft [1.8 m] KVM cables, 8 - M5 cage nuts, 8 - M5 screws, 5 - regional power cords (NA, JP, UK, EU, ANZ), 4 - mounting rails (variable lengths), 1 - quick-start guide

Shipping (Package) Weight

46.3 lb [21 kg]

Weight of Product

29.8 lb [13.5 kg]

Product Length

25.3 in [64.3 cm]

Product Width

19.0 in [48.3 cm]

Product Height

1.7 in [43.0 mm]

Package Depth

24.2 in [61.5 cm]

Package Width

30.1 in [76.5 cm]

Package Height

7.5 in [19 cm]

Color

Black

Warranty

2 Years

Connector 1

VGA

Connector 1 (Quantity)

1

Package Quantity

1

Connector 2

USB-A (480Mbps, 2.5W)

Connector 2 (Quantity)

2

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

Humidity

10 ~ 80% RH

Material

Steel

Power Source

International Power Cords

Input Voltage

100 - 240 AC

Connector 3

VGA

Connector 3 (Quantity)

1

Power Consumption

23W

MTBF

50, 000 Hrs

Input Current

1.5A

Host Connector 1

VGA

Host Connector 1 (Quantity)

1

Audio

No

Connector 4

VGA

Connector 4 (Quantity)

16

Supported Resolutions

1024x768<br> 1280x720 (High-definition 720p)<br> 1280 x 1024<br><br><i>Lower resolutions are also supported</i>

Maximum Analog Resolutions

1280 x 1024

Cascadable

No

Rack-Mountable

Yes

U Height

1U

Number of KVM Ports

16

IP Control

No

Supported Platforms

USB

PC Video Type

VGA

Number of Monitors Supported

1

On-Screen Display

Yes

Cables Included

Yes

Maximum Mounting Depth

35.0 in [89 cm]

Maximum Number of Users

1

Minimum Mounting Depth

23.8 in [60.5 cm]

Front Door Key Lock

No

Display Size

19"
