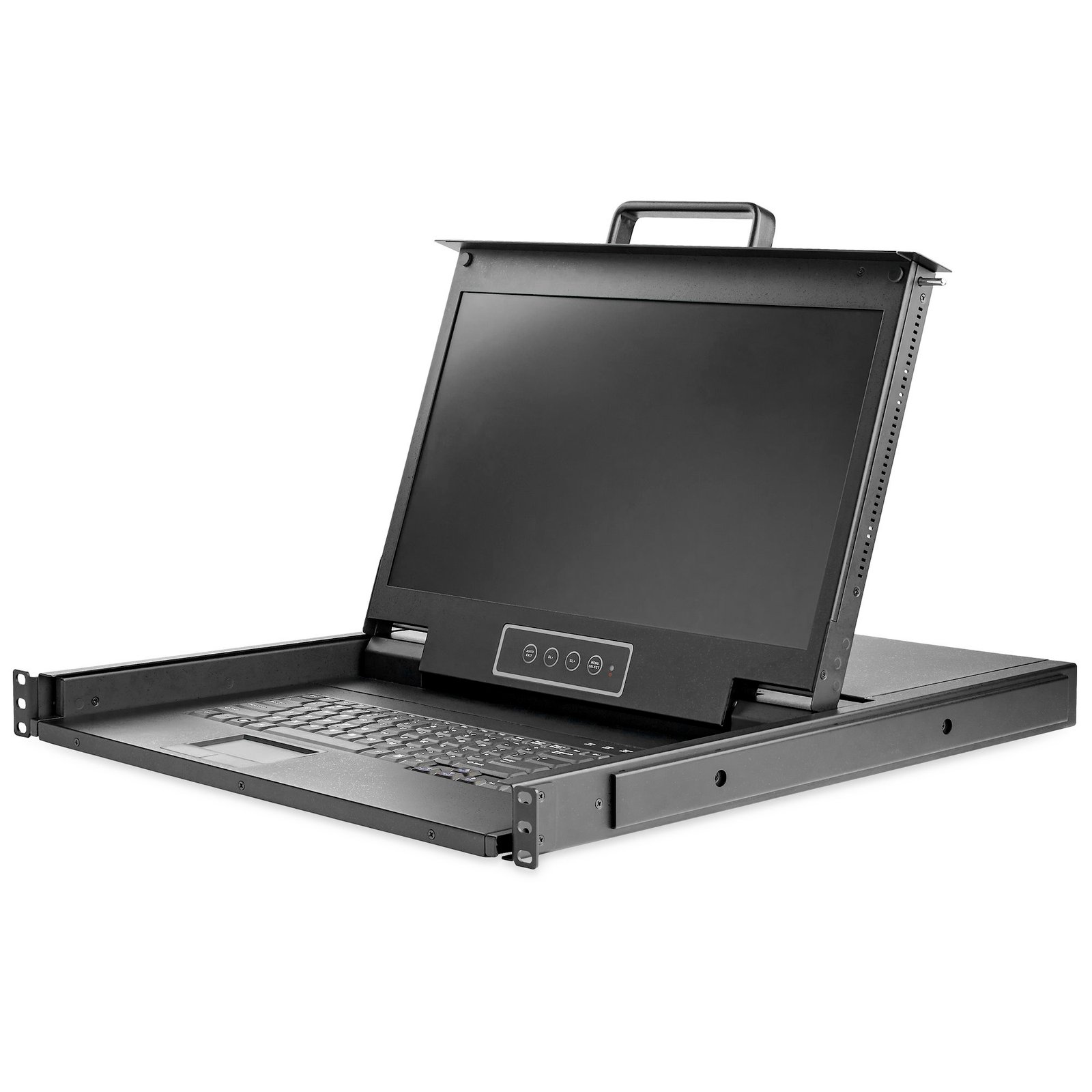

Rackmount KVM Console HD 1080p - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF

Specifications & Compliance

UPC

065030872478

Brand

StarTech.com

Included in Package

1 - KVM console, 1 - KVM cable, 8 - M5 cage nuts, 8 - M5 screws, 5 - regional power cords (NA, JP, UK, EU, ANZ), 1 - quick-start guide, 2 - mounting rails

Shipping (Package) Weight

36.0 lb [16.3 kg]

Weight of Product

24.7 lb [11.2 kg]

Product Length

22.2 in [56.5 cm]

Product Width

19.0 in [48.3 cm]

Product Height

1.7 in [43.0 mm]

Package Depth

30.7 in [78 cm]

Package Width

24.3 in [61.6 cm]

Package Height

7.5 in [19.1 cm]

Color

Black

Warranty

2 Years

Connector 1

IEC C14 (250V AC, 10A)

Connector 1 (Quantity)

1

Package Quantity

1

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

Humidity

10 ~ 80% RH

Material

Steel

Power Source

International Power Cords

Special Notes

The minimum mounting depth of this rackmount console is less than the length of the console itself. Please consider the length of the rackmount console when evaluating if it will fit into your rack.

Input Voltage

100 - 240 AC

Power Consumption

13W

MTBF

44,230 hours

LED Indicators

1 - Power / Status LED

Input Current

1.5A

Host Connector 1

VGA

Host Connector 1 (Quantity)

1

Audio

No

Supported Resolutions

Resolutions up to 1920x1080 @ 60Hz

Maximum Analog Resolutions

1920x1080

Rack-Mountable

Yes

U Height

1U

Number of KVM Ports

1

IP Control

No

Supported Platforms

USB

PC Video Type

VGA

Number of Monitors Supported

1

On-Screen Display

Yes

Cables Included

Yes

Maximum Mounting Depth

33.5 in [85 cm]

Maximum Number of Users

1

Aspect Ratio

16:9

Minimum Mounting Depth

20.1 in [51 cm]

Display Size

17.3"
