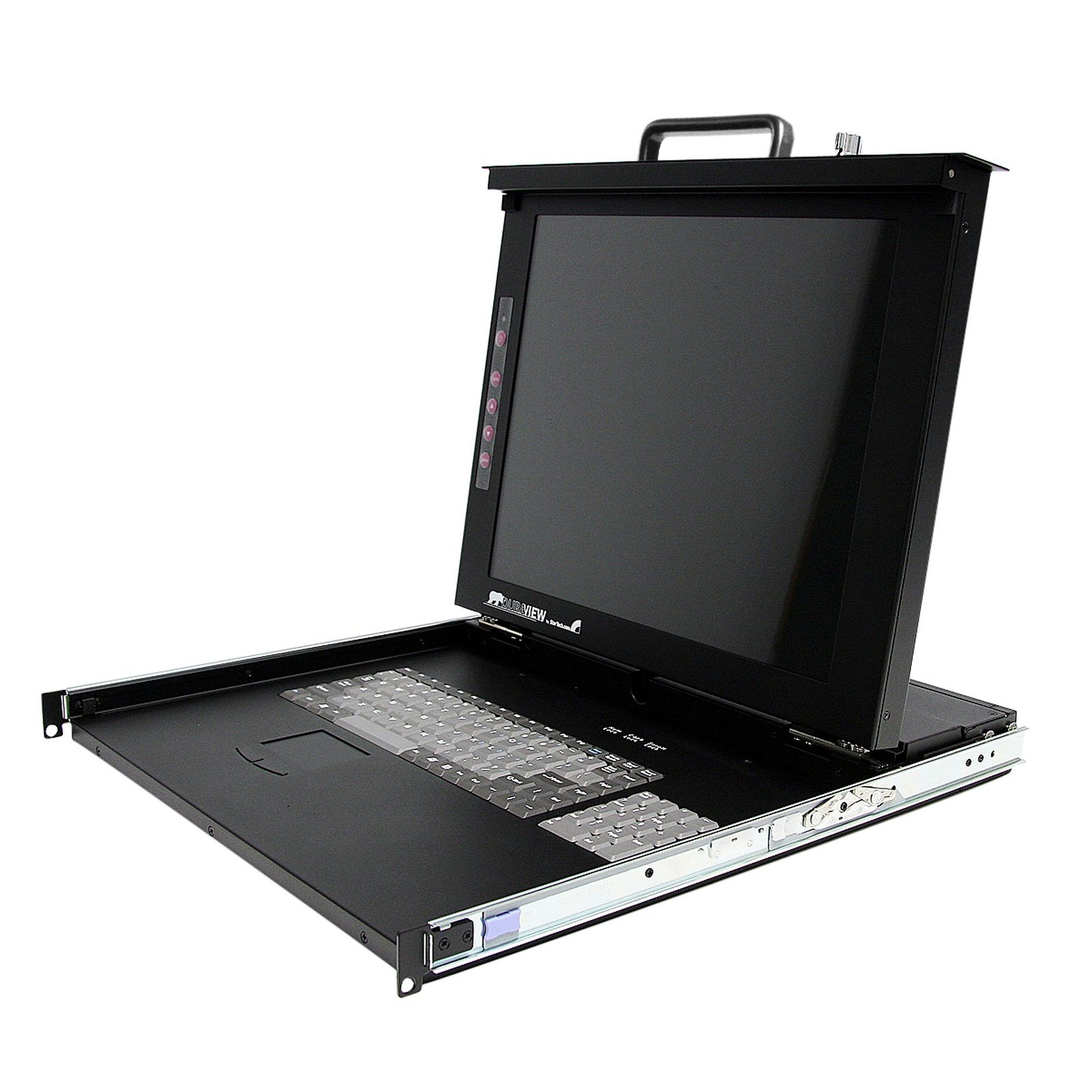

1U 17" Rackmount LCD Console with 8 Port Multi-Platform KVM

$1,330.99

Control up to 8 servers or KVM switches with this 1U rack-mountable LCD console

SKU: RACKCONS1708 Category:

Specifications & Compliance

UPC
065030824262
Brand
StarTech.com
Included in Package
1 - 1U LCD Rack Console Drawer, 1 - 1U 8 Port Multi-Platform KVM Switch, 1 - Mounting Rails (Set), 1 - Power Adapter, 1 - Instruction Manual
Shipping (Package) Weight
44.4 lb [20.1 kg]
Weight of Product
24.3 lb [11.0 kg]
Product Length
24.9 in [63.3 cm]
Product Width
19.0 in [48.3 cm]
Product Height
1.8 in [45.0 mm]
Package Depth
30.7 in [78 cm]
Package Width
22.4 in [56.8 cm]
Package Height
8.3 in [21.1 cm]
Color
Black
Warranty
2 Years
Connector 1
VGA
Connector 1 (Quantity)
1
Package Quantity
1
Connector 2
PS/2
Connector 2 (Quantity)
2
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Humidity
10~90% RH
Material
Heavy Duty Steel
Power Source
AC Adapter Included
Output Voltage
12V DC
Power Consumption
48
MTBF
60,000 Hours
Output Current
4
Host Connector 1
VGA
Host Connector 1 (Quantity)
8
Audio
No
Maximum Analog Resolutions
1280X1024 (SXGA)
Cascadable
Yes
Rack-Mountable
Yes
Number of KVM Ports
8
IP Control
No
Supported Platforms
USB and PS/2
PC Video Type
VGA
Number of Monitors Supported
1
On-Screen Display
Yes
Port Selection Support
Hotkeys and OSD (On Screen Display)
Maximum Mounting Depth
31.6 in [80.2 cm]
Maximum Number of Users
1
Aspect Ratio
4:3
Minimum Mounting Depth
25.8 in [65.5 cm]
Front Door Key Lock
Yes
Display Size
17"

Questions & Answers

Everything is hooked up but nothing is working. What should I do?
When you troubleshoot issues with a rack console, there are some quick tests that you can complete to rule out potential problems. You can test to make sure that the following components are working correctly and are not the source of the issue: Video cables Video source Monitor USB/PS2 cables Before you test the components, make sure that the rack console is properly mounted to a rack. For more information, see the documentation that came with the rack console. To test your setup components, try the following: Use the video cables, video source, monitor, and USB/PS2 cable(s) in another setup to see if the problem is with the components or the setup. Use a different video cable, video source, monitor, and USB/PS2 cable(s) in your setup to see if the problem persists. Ideally, you should test a component that you know works in another setup. Note: When testing with a different keyboard, mouse, and monitor, connect the devices directly to your computer. When you test your cables, it is recommended that you do the following: Test each cable individually. Use short cables, with the least amount of adapters. When you test the video cables, video source, and monitor, it is recommended that you do the following: Use a resolution that is compatible with the monitor and any KVM switches that you may use. When a KVM switch is used with the rack console, make sure that you selected the correct source. If some of the sources are working but not others, you may be experiencing issues with the KVM switch in your setup. For more information, see the KVM Troubleshooting FAQ.
