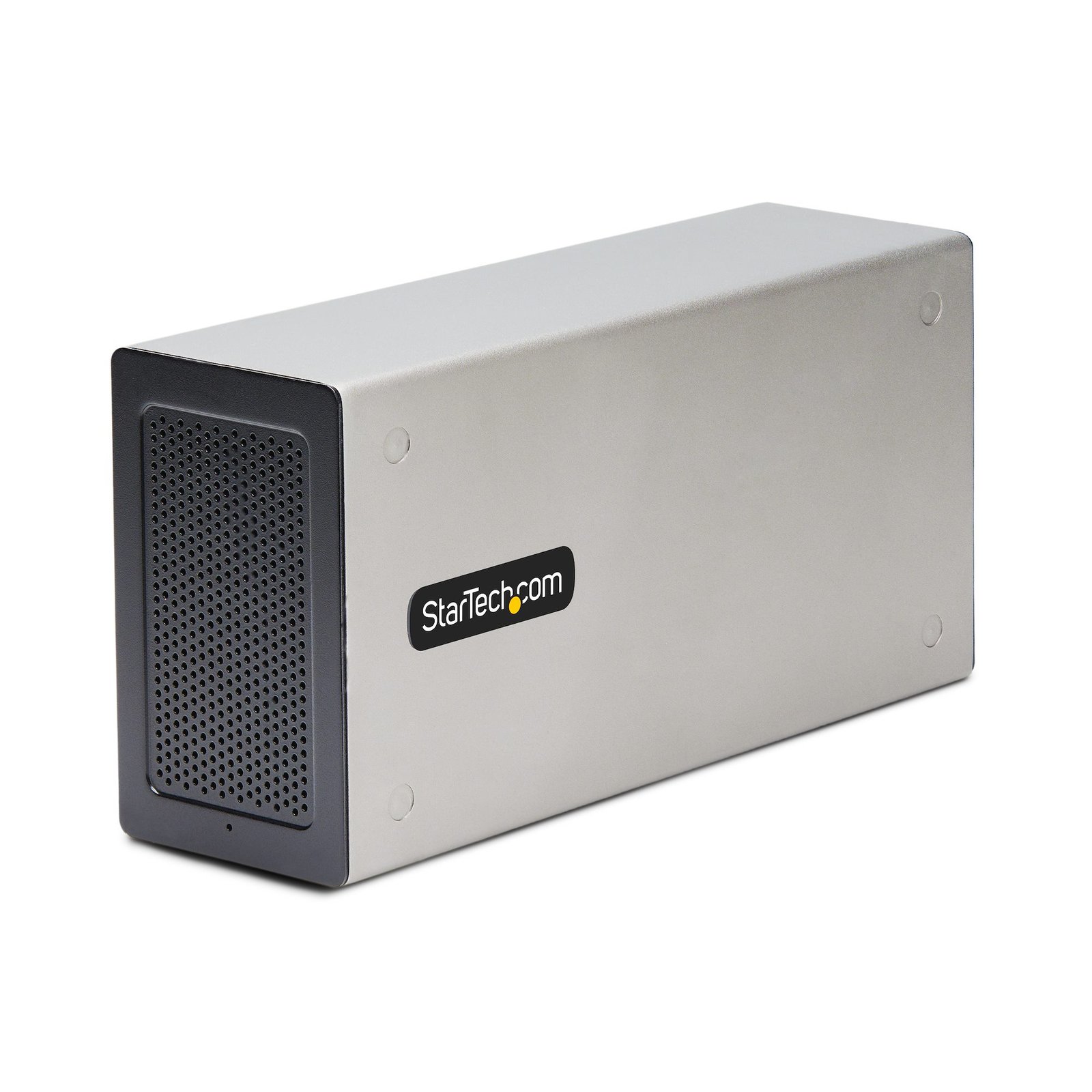

Thunderbolt 3 PCIe Expansion Chassis, External Enclosure W/Dual PCI Express Slots, PCIe Box for Laptops/Desktops, 8K/4K Output Via TB3/DP

Thunderbolt 3 PCIe Expansion Chassis, External Enclosure W/Dual PCI Express Slots, PCIe Box for Laptops/Desktops, 8K/4K Output Via TB3/DP 1.4 Ports, For Video Capture/Fiber/Ethernet Cards - TAA

$562.71

Add dual external PCIe (PCI Express 3.0) slots, Thunderbolt 3 ports, and a DisplayPort connection to a Thunderbolt 3 equipped system.

SKU: 2TBT3-PCIE-ENCLOSURE Category:

Specifications & Compliance

UPC
065030895002
Brand
StarTech.com
Included in Package

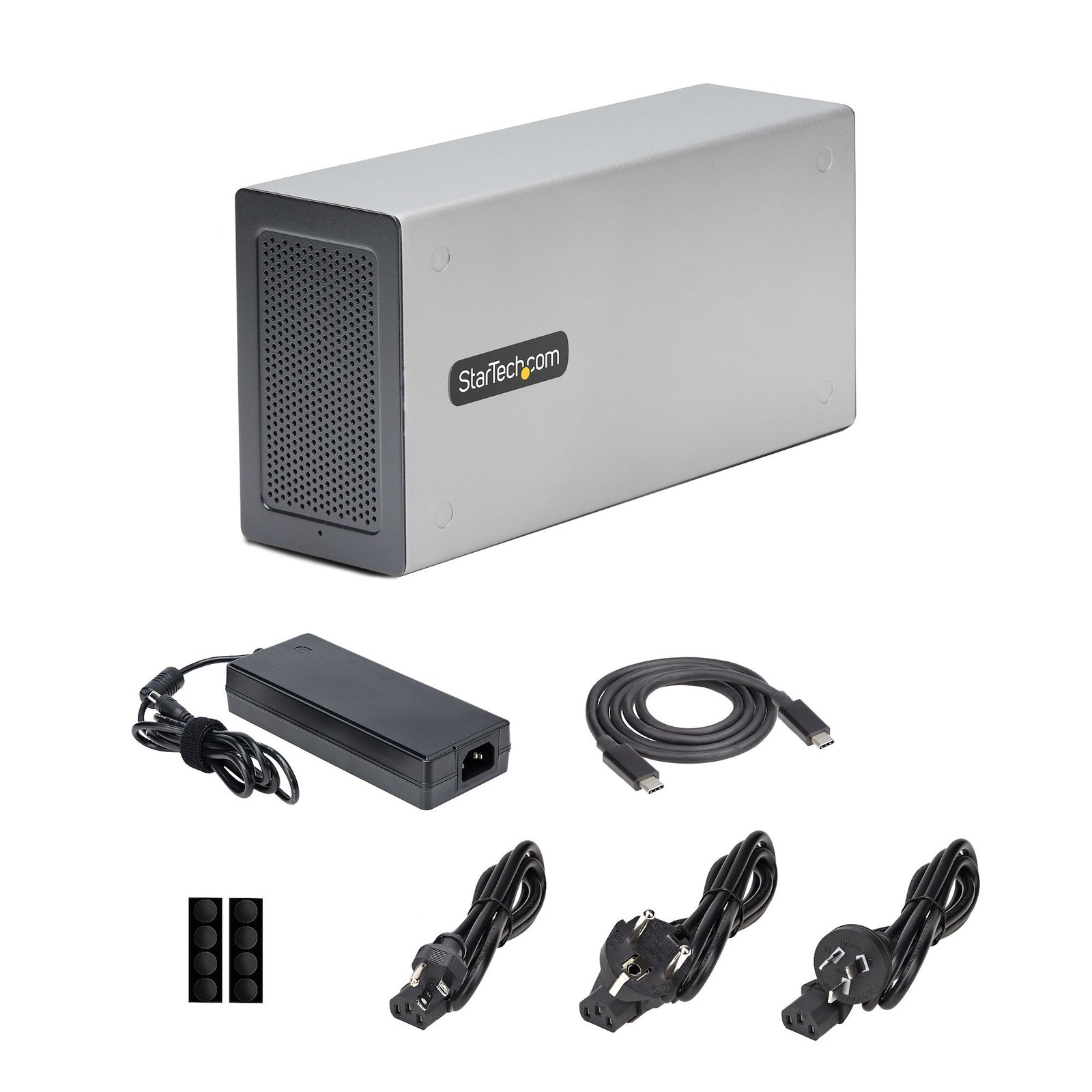

1 - TB3 PCIe Expansion Chassis, 1 - 3.3ft [1m] Thunderbolt Host Cable, 1 - Power Adapter, 1 - Foot-Pad Set, 1 - Quick-Start Guide
Shipping (Package) Weight
7.8 lb [3.5 kg]
Weight of Product
3.6 lb [1.6 kg]
Product Length
3.3 in [84.0 mm]
Product Width
11.1 in [28.1 cm]
Product Height
5.6 in [14.2 cm]
Package Depth
11.5 in [29.2 cm]
Package Width
14.3 in [36.2 cm]
Package Height
5.7 in [14.6 cm]
Color
Black
Warranty
2 Years
Connector 1
USB-C (Thunderbolt 40Gbps)
Connector 1 (Quantity)
2
Package Quantity
1
Connector 2
DisplayPort
Connector 2 (Quantity)
1
Operating Temperature
5 to 65°C (41 to 149°F)
Storage Temperature
-20 to 65°C (-4 to 149°F)
Humidity
20 to 80%
Material
Aluminum
Maximum Data Transfer Rate
40 Gbps (Thunderbolt 3)
Industry Standards
Thunderbolt 3, DisplayPort 1.4, PCI Express 3.0
Power Source
AC Adapter Included
Chipset ID
Titan Ridge DSL7440 (x2), Ti TPS65983B (x2)
Special Notes

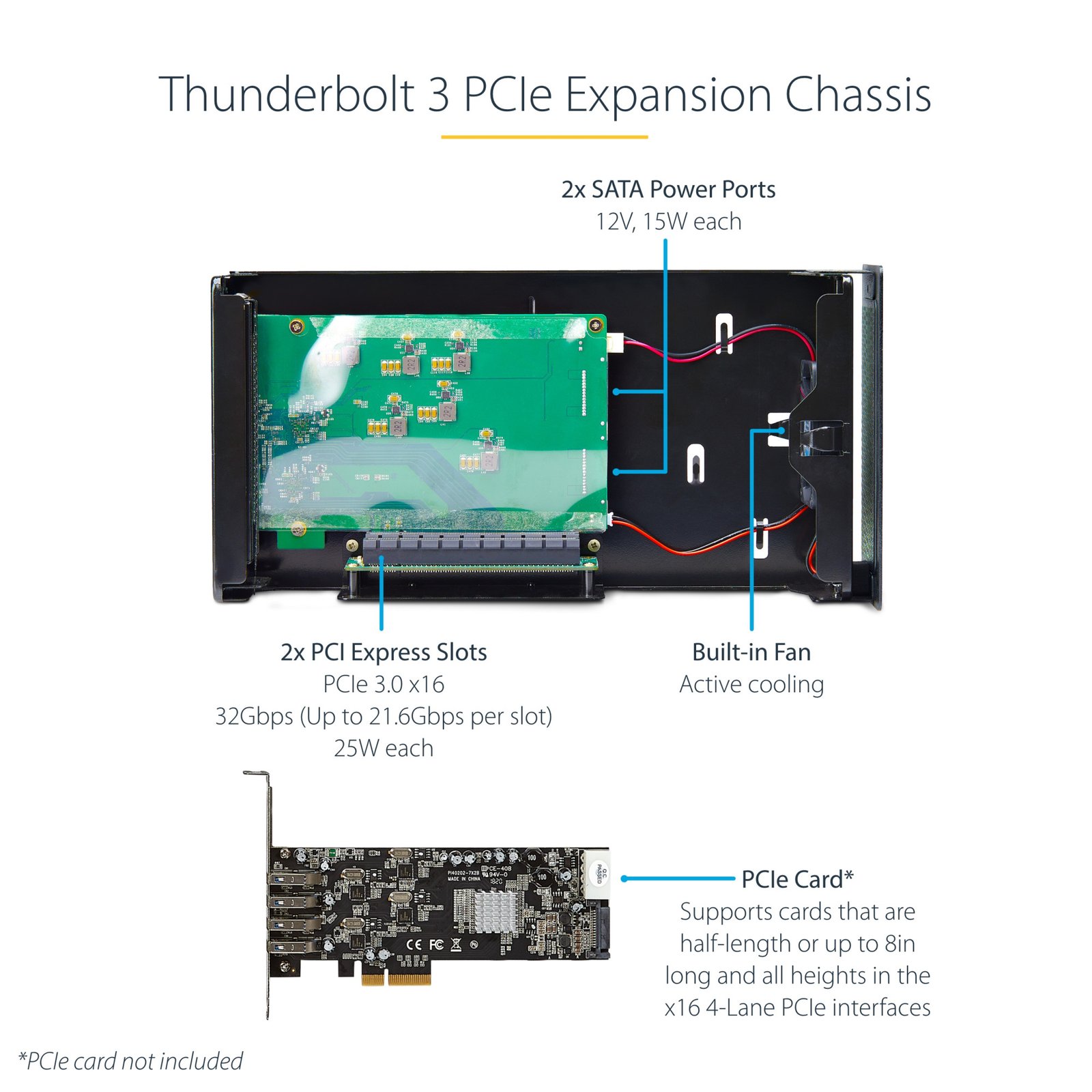

Requires a Thunderbolt 3 or 4 host computer with Windows (7 and up) and macOS (10.12 and up) operating systems that is also Thunderbolt certified to ensure device and OS interoperability., This product does not support graphics cards (GPUs)., The PCIe Expansion Chassis supports up to two PCIe 3.0 cards using x16 mechanical slots. However, the slots are in x4 mode., When using DisplayPort and a 8K monitor a video adapter from DisplayPort to HDMI is needed., The available bandwidth per slot is 21.6Gbps. When two PCIe cards are installed, up to 32Gbps of dynamic bandwidth are available for the cards to use.
Input Voltage
100 - 240 AC
Output Voltage
12V DC
Connector 3
PCI Express x16
Connector 3 (Quantity)
2
Power Consumption
120
LED Indicators
1 - Solid Blue: Receiving Power </br> Off: No Power
Number of Ports
3
Interface
Thunderbolt
Bus Type
PCI Express
Input Current
3A
Output Current
10
Type and Rate
Thunderbolt 3 (40Gbps)
Plug Type
N
Center Tip Polarity
Positive
Connector 4
SATA (15-Pin)
Connector 4 (Quantity)
2
Number of Displays
1
Maximum Cable Length
3.3 ft [1 m]
Port Style
External Hub
Fans Included? Yes/No
Yes
Fans
1 - 60 mm
Bandwidth
3.94 GB/s (x4 PCIe 3.0 )
Total Available Power Output
120W

Questions & Answers

What DC barrel connector power plug types do StarTech.com products use, and what are their dimensions?
StarTech.com DC barrel connector plug types are defined in the “Plug Type” field of the technical specifications, using a letter code that specifies the connector’s outer diameter (OD) and inner diameter (ID) in millimeters for power adapter compatibility. Explanation: In StarTech.com technical specifications, the “Plug Type” field is a standardized identifier for the exact DC barrel connector size required to power a product. Each plug type is assigned a letter code that corresponds to a specific combination of outer diameter (OD) and inner diameter (ID), measured in millimeters. Common DC barrel plug type dimensions Plug Type OD ID A 2.35 mm 0.7 mm B 4.0 mm 1.7 mm C 4.75 mm 1.7 mm H 3.4 mm 1.3 mm L 5.0 mm 2.5 mm M 5.5 mm 2.1 mm N 5.5 mm 2.5 mm The DC barrel connector plug type must match both the outer diameter and inner diameter exactly. A mismatch between the StarTech.com product requirement and the power adapter connector can prevent proper fit or stable power delivery, which may result in device startup failure or intermittent operation. The plug type defines only the physical connector size. The plug type does not define electrical power requirements such as voltage, current, or polarity. The power adapter used with a StarTech.com product must match the product’s specified electrical requirements. Using an incompatible power adapter can cause device malfunction or permanent damage. This standardized DC barrel connector plug type system enables IT professionals and procurement teams to verify connector dimensions, ensure power adapter compatibility, standardize hardware deployments, and identify the correct replacement power supply for StarTech.com products.
