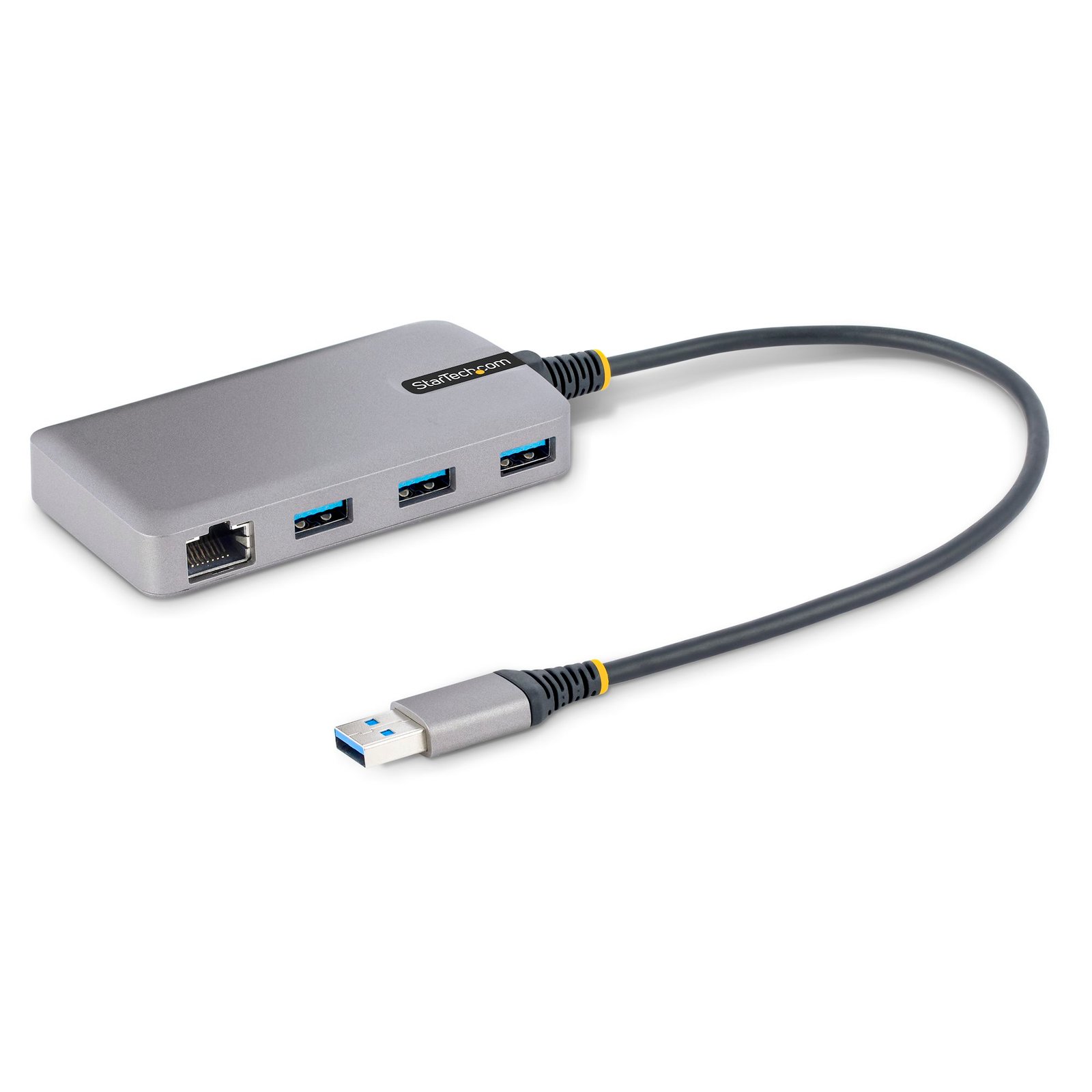

3-Port USB Hub with Ethernet - 3x USB-A Ports - Gigabit Ethernet (RJ-45) - USB 3.0 5Gbps - Bus-Powered - 1ft/30cm Long Cable - Portable

3-Port USB Hub with Ethernet - 3x USB-A Ports - Gigabit Ethernet (RJ-45) - USB 3.0 5Gbps - Bus-Powered - 1ft/30cm Long Cable - Portable Laptop USB Hub Adapter w/ GbE

$54.99

10/100/1000Mbps Ethernet | USB Type-A to 3x USB Type-A | USB 3.2 Gen 1 (5Gbps) | 1ft (30cm) Built-In Host Cable

SKU: 5G3AGBB-USB-A-HUB Category:

Specifications & Compliance

UPC
065030893244
Brand
StarTech.com
Included in Package
1 - USB Hub
Shipping (Package) Weight
4.7 oz [134 g]
Weight of Product
3.0 oz [84.0 g]
Product Length
16.5 in [42.0 cm]
Product Width
2.0 in [50.0 mm]
Product Height
0.6 in [15.0 mm]
Package Depth
6.7 in [17 cm]
Package Width
5.7 in [14.5 cm]
Package Height
1.2 in [31 mm]
Color
Space Gray
Cable Length
11.8 in [30 cm]
Warranty
2 Years
Connector 1
USB-A (5Gbps, 4.5W)
Connector 1 (Quantity)
3
Package Quantity
1
Connector 2
RJ-45
Connector 2 (Quantity)
1
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-40°C to 80°C (-40°F to 176°F)
Humidity
0% ~ 85% RH (no condensation)
Material
Plastic
Maximum Data Transfer Rate
5 Gbps (USB 3.2 Gen 1) <br /> 2 Gbps (Ethernet; Full-Duplex)
Industry Standards
IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control, 802.1q VLAN Tagging, 802.1p Layer 2 Priority Encoding, USB 3.0 - Backward compatible with USB 2.0 and 1.1
Power Source
Bus Powered
Chipset ID
VIA - VL817, Asix - AX88179A
Special Notes
USB 3.2 Gen 1 (5Gbps) is also known as USB 3.1 Gen 1 (5Gbps) and USB 3.0 (5Gbps)., Wake-on-LAN (WoL) functionality can be disabled by the host computer, if the host computer USB controller enters power save mode. It's recommended that USB power save modes be disabled within your operating system, if the WoL functionality is required for your application.
Connector 3
USB Micro-B (2.5W Power Only)
Connector 3 (Quantity)
1
LED Indicators
1 - Network Link LED - Green, 1 - Network Activity LED - Amber
Number of Ports
3
Interface
USB 3.2 Gen 1 (5Gbps), RJ45 (Gigabit Ethernet)
Bus Type
USB 3.2 Gen 1 (5Gbps)
Type and Rate
USB 5Gbps
Host Connector 1 (Quantity)
1
Compatible Networks
10/100/1000 Mbps
UASP Support
Yes
Auto MDIX
Yes
Full Duplex Support
Yes
Fast-Charge Port(s)
No
Jumbo Frame Support
9K max.
Flow Control
Full duplex flow control
Form Factor
Compact
USB-C Host Connection
No
USB-C Device Port(s)
No
Network Adapter Form Factor
Attached Cable

Questions & Answers

I am having issues with my new network interface card (NIC) and my on-board NIC is still enabled. What do I do in Windows?
Sometimes an on-board network interface card (NIC) conflicts with a new NIC. In these cases it is best to disable the on-board NIC. The best way to disable your on-board NIC is to go into your BIOS and disable it there if possible. To do this, consult your motherboard manual. You can also disable any NIC in Windows. Here is how you do this: First click Start , or, in Windows 10 and 8, hold down the Windows key and press X . Then click Control Panel . Windows 10 Click Network and Internet . Click Network and Sharing Center . On the left, click Change adapter settings . Right-click the NIC that you would like to disable and select Disable . Windows 8 Click Network and Sharing Center . On the left, click Change adapter settings . Right-click the NIC that you would like to disable and select Disable . Windows 7 Click Network and Internet . Click Network and Sharing Center . On the left, click Change adapter settings . Right-click the NIC that you would like to disable and select Disable . Windows Vista Click Network and Sharing Center . On the left, click Manage network connections . Right-click the NIC that you would like to disable and select Disable . Windows XP Click Network Connections . Right-click the NIC that you would like to disable and select Disable .

Why do I have speed or connectivity issues?
If you are experiencing speed or connectivity issues, it is best to set a specific speed at half or full duplex in your settings. You can set your network adapter to perform at a certain speed, but the device that the adapter is connected to (whether it is a router, switch, or computer) must also be able to perform at the same speed. Note : You must log in as the local administrator before you continue. To open Device Manager: Press Windows key + R . Type devmgmt.msc . Click OK . Open the Networking adapters section. Right-click the network adapter that you want to change and select Properties . Click the Advanced tab. Scroll down to Speed & Duplex . By default, it is set to Auto-Negotiate . Select any of the speeds that you see in the list. Click OK and restart your computer.

Can I use my network card for a Preboot Execution Environment (PXE)?
StarTech.com does not support a Preboot Execution Environment (PXE) as this requires third-party software. However, our devices can be used as long as the following conditions are met: The BIOS must support PXE. The BIOS must see the card. The environment must have drivers for the chipset used in the card. If using a USB networking card, the environment must have support for USB devices as well.
