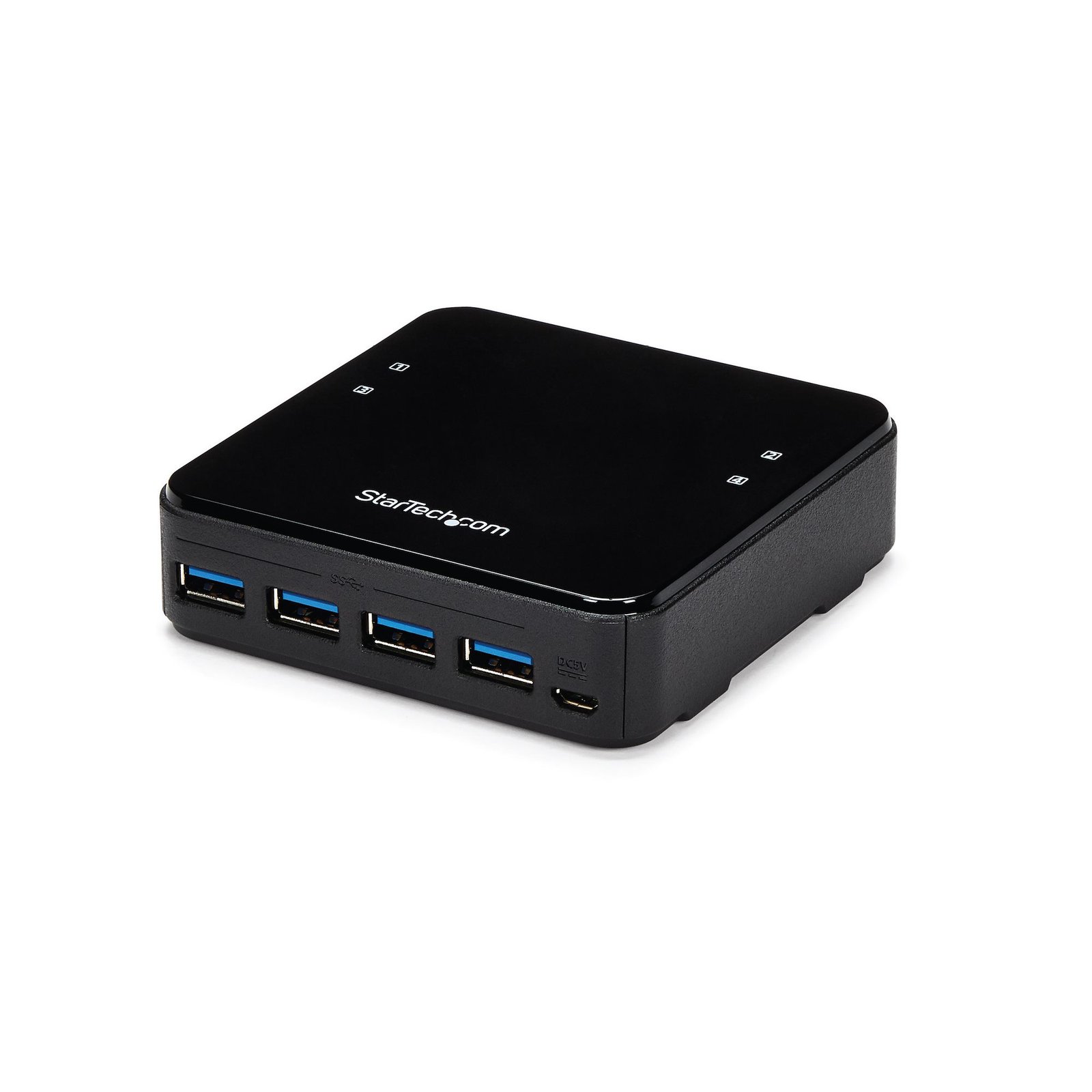

4 to 4 USB 3.0 Peripheral Sharing Switch

Specifications & Compliance

UPC

065030879156

Brand

StarTech.com

Included in Package

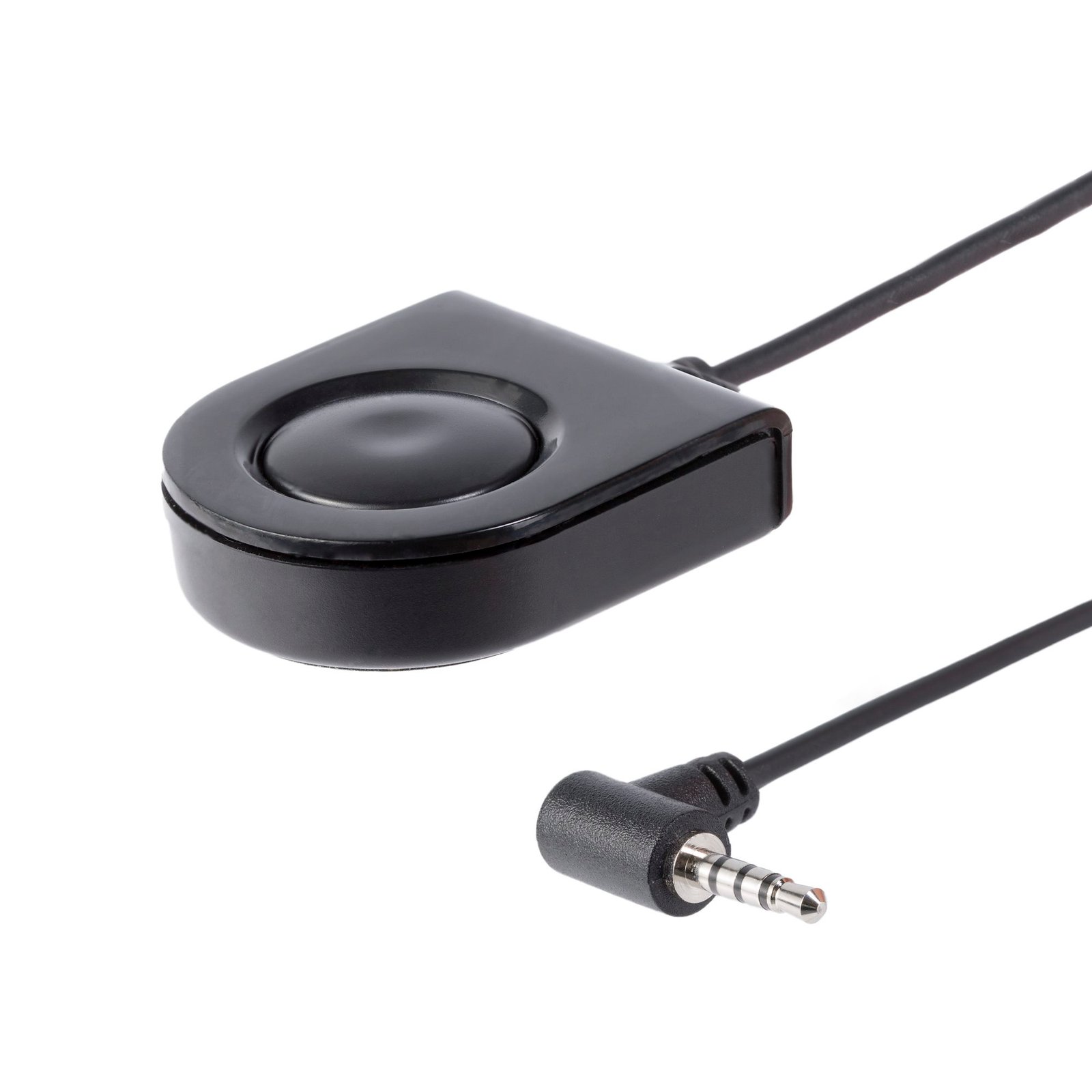

1 - peripheral sharing switch, 1 - 1.8 m [6 ft] remote port selector, 4 - USB 3.0 cables - USB-A to USB-B<br> 2x 1.2 m [4 ft] / 2x 1.8 m [6 ft], 1 - quick-start guide

Shipping (Package) Weight

19.8 oz [562 g]

Weight of Product

4.4 oz [124.0 g]

Product Length

3.7 in [94.0 mm]

Product Height

1.0 in [26.0 mm]

Package Depth

6.3 in [16.1 cm]

Package Width

9.4 in [24 cm]

Package Height

2.5 in [63 mm]

Color

Black

Warranty

2 Years

Connector 1

USB-A (5Gbps, 4.5W)

Connector 1 (Quantity)

4

Package Quantity

1

Connector 2

USB-B (5Gbps, 4.5W)

Connector 2 (Quantity)

4

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

Humidity

0~80% RH

Material

Plastic

Maximum Data Transfer Rate

5 Gbps (USB 3.2 Gen 1)

Power Source

USB-Powered

Special Notes

The switch does not require an external power source as it draws power from the computers that it’s connected to. If you have a special application that requires additional power, such as higher powered USB peripherals or if less than 4 hosts are connected and powered at one time, connect a 5V source to the power adapter port (USB Micro-B).

Input Voltage

5V DC

Output Voltage

5 DC

Connector 3

USB Micro-B (2.5W Power Only)

Connector 3 (Quantity)

1

LED Indicators

4 - Computer selection indicators

Number of Ports

4

Interface

USB 3.2 Gen 1

Bus Type

USB 3.2 Gen 1 (5Gbps)

Type and Rate

USB 5Gbps

General Specifications

Optional power requirements: 5V 2A

Fast-Charge Port(s)

No

Form Factor

Compact

USB-C Host Connection

No

USB-C Device Port(s)

No
