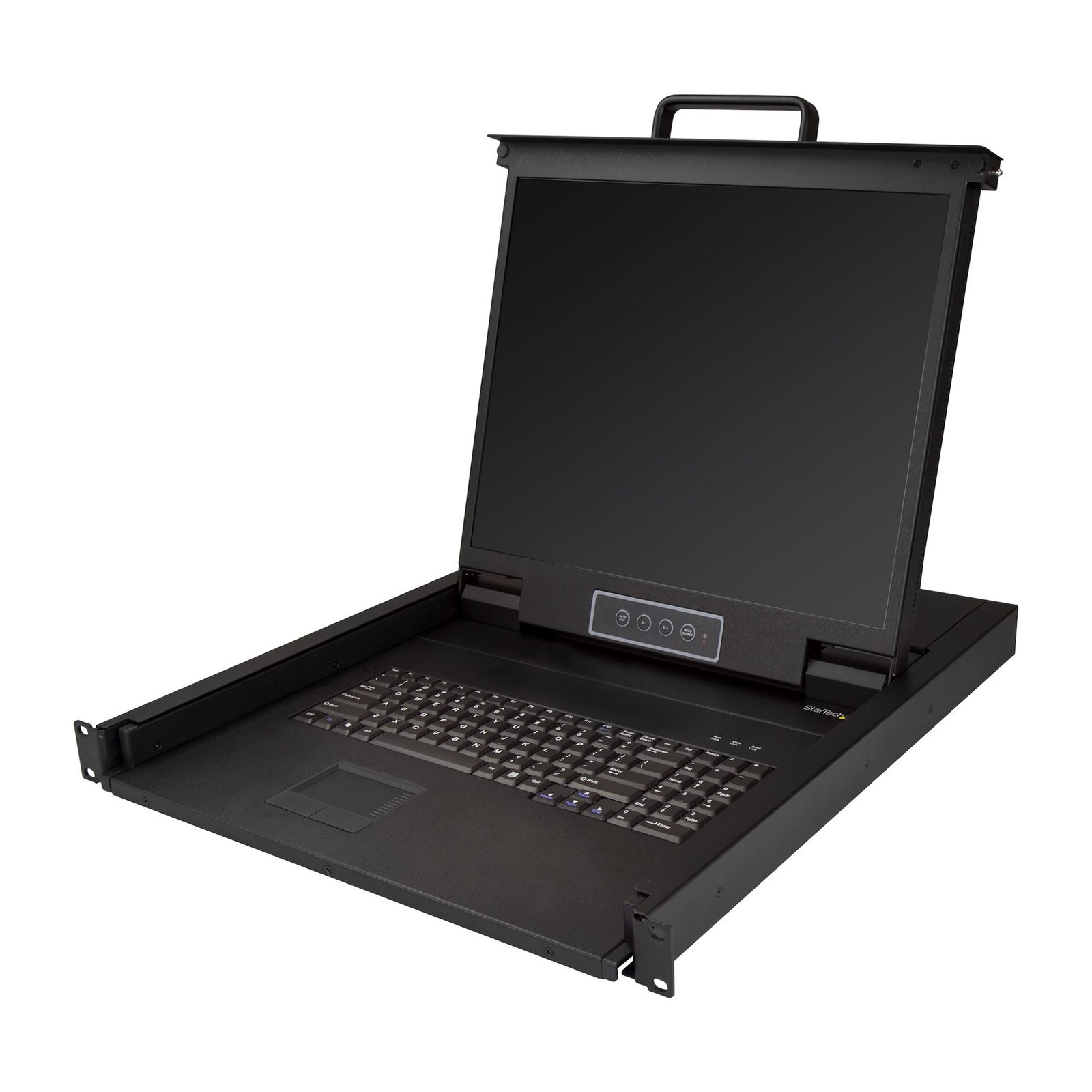

Rackmount KVM Console - Single Port VGA KVM with 19" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF

Specifications & Compliance

UPC

065030872492

Brand

StarTech.com

Included in Package

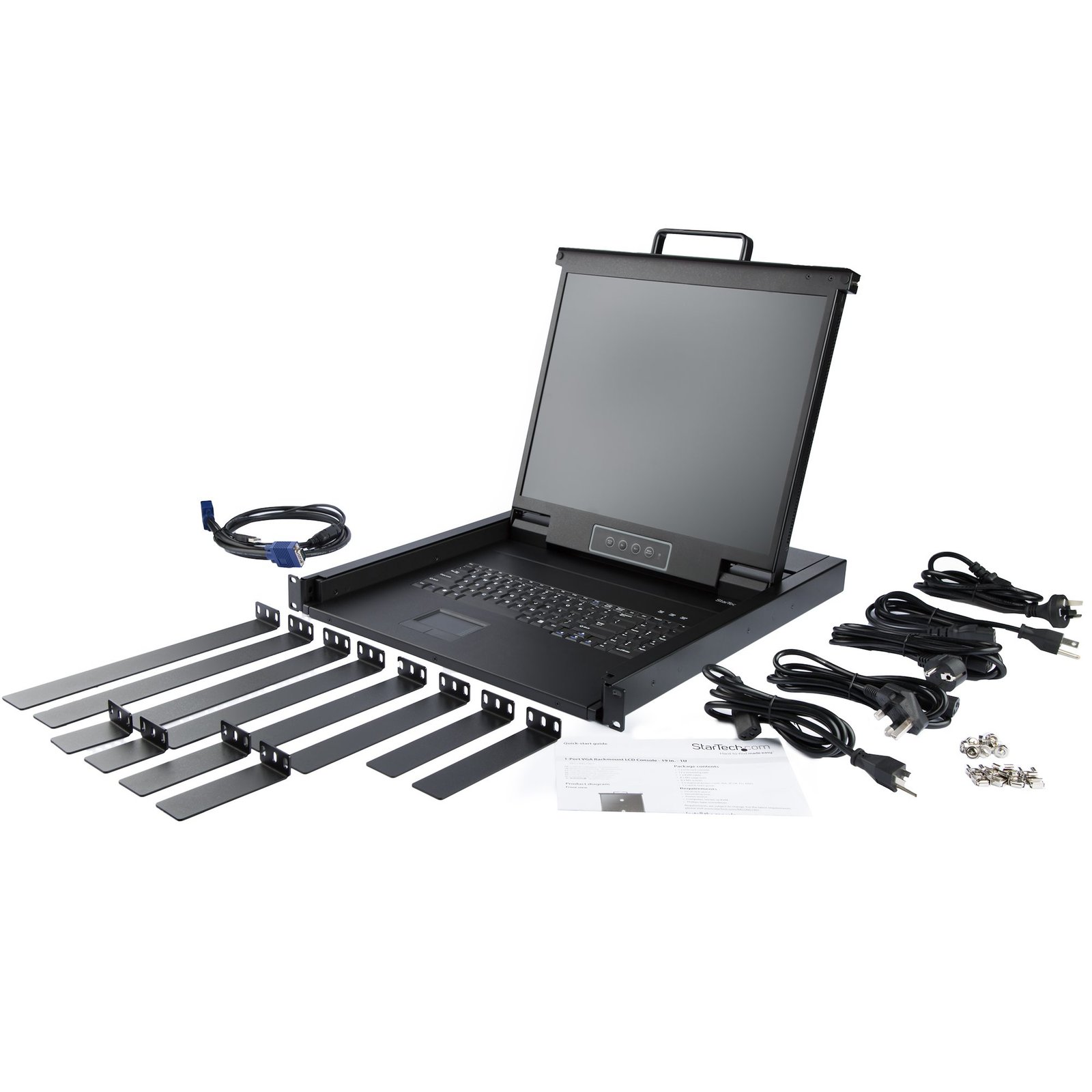

1 - KVM console, 1 - 6 ft [1.8 m] KVM cable, 8 - M5 cage nuts, 8 - M5 screws, 5 - regional power cords (NA, JP, UK, EU, ANZ), 2 - mounting rails (variable length), 1 - quick-start guide

Shipping (Package) Weight

42.5 lb [19.3 kg]

Weight of Product

26.9 lb [12.2 kg]

Product Length

21.5 in [54.5 cm]

Product Width

19.0 in [48.3 cm]

Product Height

1.7 in [43 mm]

Package Depth

30.7 in [78.1 cm]

Package Width

24.4 in [61.9 cm]

Package Height

7.5 in [19 cm]

Color

Black

Cable Length

6.0 ft [1.8 m]

Warranty

2 Years

Connector 1

VGA

Connector 1 (Quantity)

1

Package Quantity

1

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

Humidity

10 ~ 80% RH

Material

Steel

Power Source

International Power Cords

Input Voltage

100 - 240 AC

Output Voltage

100 ~ 200 AC

Power Consumption

17W

MTBF

50, 000 Hrs

LED Indicators

1 - power / status LED

Audio

No

Supported Resolutions

1024x768<br> 1280x720 (High-definition 720p)<br> 1280 x 1024<br><br><i>Lower resolutions are also supported</i>

Maximum Analog Resolutions

1280 x 1024

Rack-Mountable

Yes

U Height

1U

Number of KVM Ports

1

IP Control

No

Supported Platforms

USB

PC Video Type

VGA

Number of Monitors Supported

1

On-Screen Display

Yes

Cables Included

Yes

Maximum Mounting Depth

30.7 in [78 cm]

Maximum Number of Users

1

Minimum Mounting Depth

19.7 in [50 cm]

Front Door Key Lock

No

Display Size

19"
