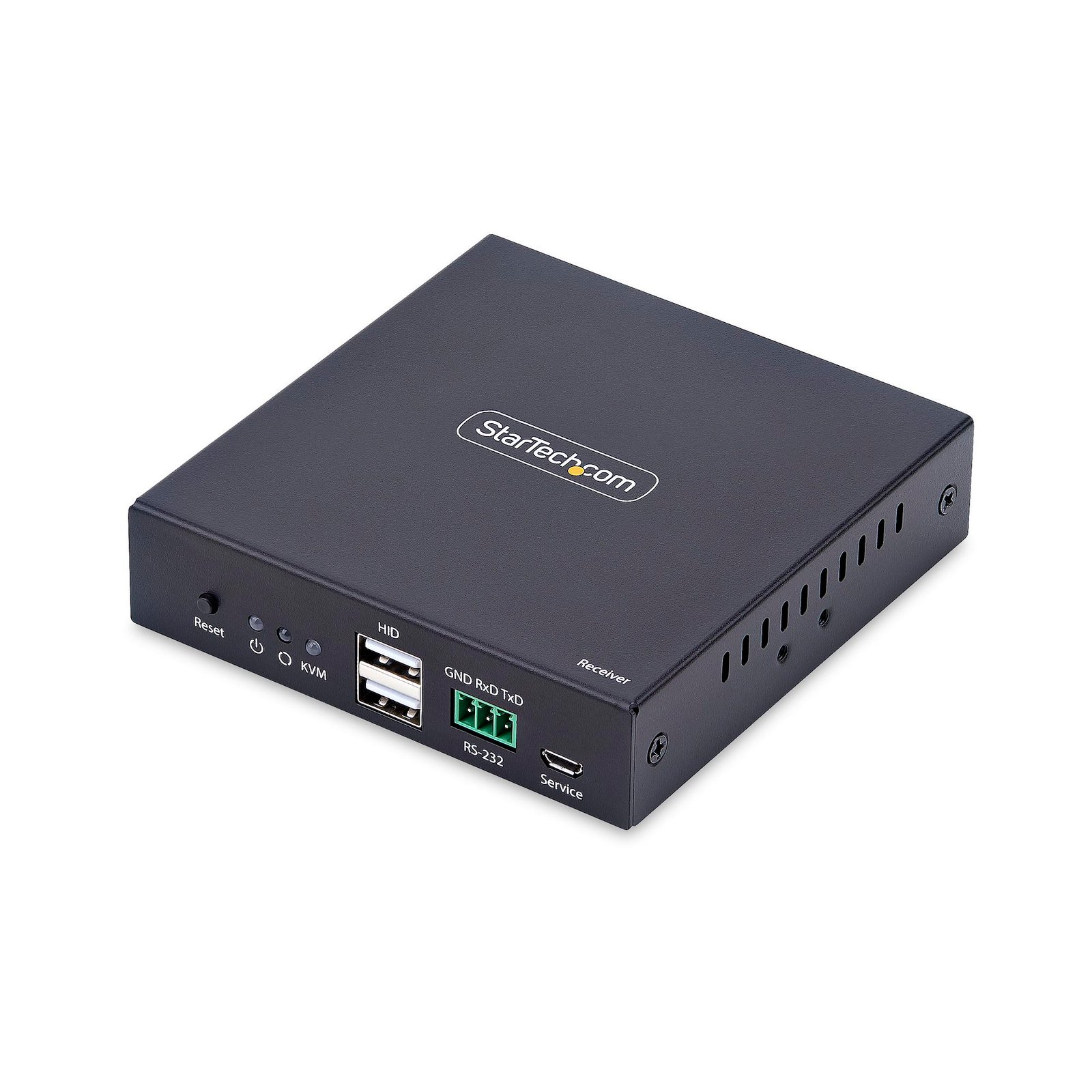

HDMI KVM Receiver Over IP Network for the IH2006 Product Series, 4K 60Hz, Driverless, AVoIP, Includes Mounting Kit, Receiver Only

HDMI KVM Receiver Over IP Network for the IH2006 Product Series, 4K 60Hz, Driverless, AVoIP, Includes Mounting Kit, Receiver Only

$230.61

Use this receiver unit with IH2006-KVM-EXTENDER to extend an HDMI-enabled computer over IP, with support for RS-232 pass-through and 3.5mm audio

SKU: IH2006-KVM-RX Category:

Specifications & Compliance

UPC
065030912679
Brand
StarTech.com
Included in Package
1 - IP KVM Receiver, 1 - Set of Rubber Feet, 1 - RS-232 Terminal Header, 1 - Mounting Kit, 1 - Universal Power Adapter (NA/UK/EU/ANZ)
Shipping (Package) Weight
17.3 oz [490 g]
Weight of Product
10.4 oz [294 g]
Product Length
4.2 in [10.6 cm]
Product Width
4.1 in [10.3 cm]
Product Height
1.0 in [25 mm]
Package Depth
7.8 in [19.9 cm]
Package Width
5.9 in [14.9 cm]
Package Height
3.1 in [80 mm]
Color
Black
Warranty
2 Years
Connector 1
USB Micro-B (480Mbps, 2.5W)
Connector 1 (Quantity)
1
Connector 2
USB-A (480Mbps, 2.5W)
Connector 2 (Quantity)
2
Operating Temperature
-20°C to 60°C (-4°F to 140°F)
Storage Temperature
-30°C to 70°C (-22°F to 158°F)
Humidity
0% ~ 90% RH (non-condensing)
Material
Steel
Power Source
AC Adapter Included
Special Notes
- Your router must support IGMP snooping and 9K jumbo frames. Please refer to your network switch or router documentation to ensure that IGMP snooping is supported and enabled., - Each transmitter requires its own dedicated network for itself and all connected receivers; VLANs are insufficient.
Input Voltage
100 - 240 AC
Output Voltage
5 DC
Connector 3
Terminal Block (3 Wire)
Connector 3 (Quantity)
1
Power Consumption
10W
LED Indicators
1 - Power LED:<br> <b>Solid Blue:</b> Indicates the unit is receiving Power, 1 - Sync LED: <br><b>Off:</b> Transmitter and Receiver have no established a connection <br><b>Slow Orange Flash:</b> Transmitter and Receiver are connected via Gigabit Ethernet but no Video is transmitting <br><b>Quick Orange Flash:</b> Transmitter and Receiver are connected via 100Mbps Ethernet but no Video is transmitting <br><b>Solid Orange:</b> Video is transmitting, 1 - KVM LED: <br><b>Flashing:</b> KVM data is transmitting <br><b>Solid:</b> Computer and USB Port are connected
Input Current
0.3A
Output Current
2
Maximum Digital Resolutions
3840 x 2160 @ 60Hz
Audio
Yes
Plug Type
M
Center Tip Polarity
Positive
Connector 4
3.5mm (3 Conductors, TRS)
Connector 4 (Quantity)
1
Audio Specifications
HDMI - 2 Channel Audio
Connector 5
RJ-45
Connector 5 (Quantity)
1
Rack-Mountable
No
Number of KVM Ports
1
IP Control
Yes
Supported Platforms
USB
PC Video Type
HDMI
Video Revision
HDMI 2.0
Connector 6
HDMI
Connector 6 (Quantity)
1
On-Screen Display
No
Cables Included
No
Port Selection Support
Not Applicable
Hot-Key Selection
No

Questions & Answers

What DC barrel connector power plug types do StarTech.com products use, and what are their dimensions?
StarTech.com DC barrel connector plug types are defined in the “Plug Type” field of the technical specifications, using a letter code that specifies the connector’s outer diameter (OD) and inner diameter (ID) in millimeters for power adapter compatibility. Explanation: In StarTech.com technical specifications, the “Plug Type” field is a standardized identifier for the exact DC barrel connector size required to power a product. Each plug type is assigned a letter code that corresponds to a specific combination of outer diameter (OD) and inner diameter (ID), measured in millimeters. Common DC barrel plug type dimensions Plug Type OD ID A 2.35 mm 0.7 mm B 4.0 mm 1.7 mm C 4.75 mm 1.7 mm H 3.4 mm 1.3 mm L 5.0 mm 2.5 mm M 5.5 mm 2.1 mm N 5.5 mm 2.5 mm The DC barrel connector plug type must match both the outer diameter and inner diameter exactly. A mismatch between the StarTech.com product requirement and the power adapter connector can prevent proper fit or stable power delivery, which may result in device startup failure or intermittent operation. The plug type defines only the physical connector size. The plug type does not define electrical power requirements such as voltage, current, or polarity. The power adapter used with a StarTech.com product must match the product’s specified electrical requirements. Using an incompatible power adapter can cause device malfunction or permanent damage. This standardized DC barrel connector plug type system enables IT professionals and procurement teams to verify connector dimensions, ensure power adapter compatibility, standardize hardware deployments, and identify the correct replacement power supply for StarTech.com products.
