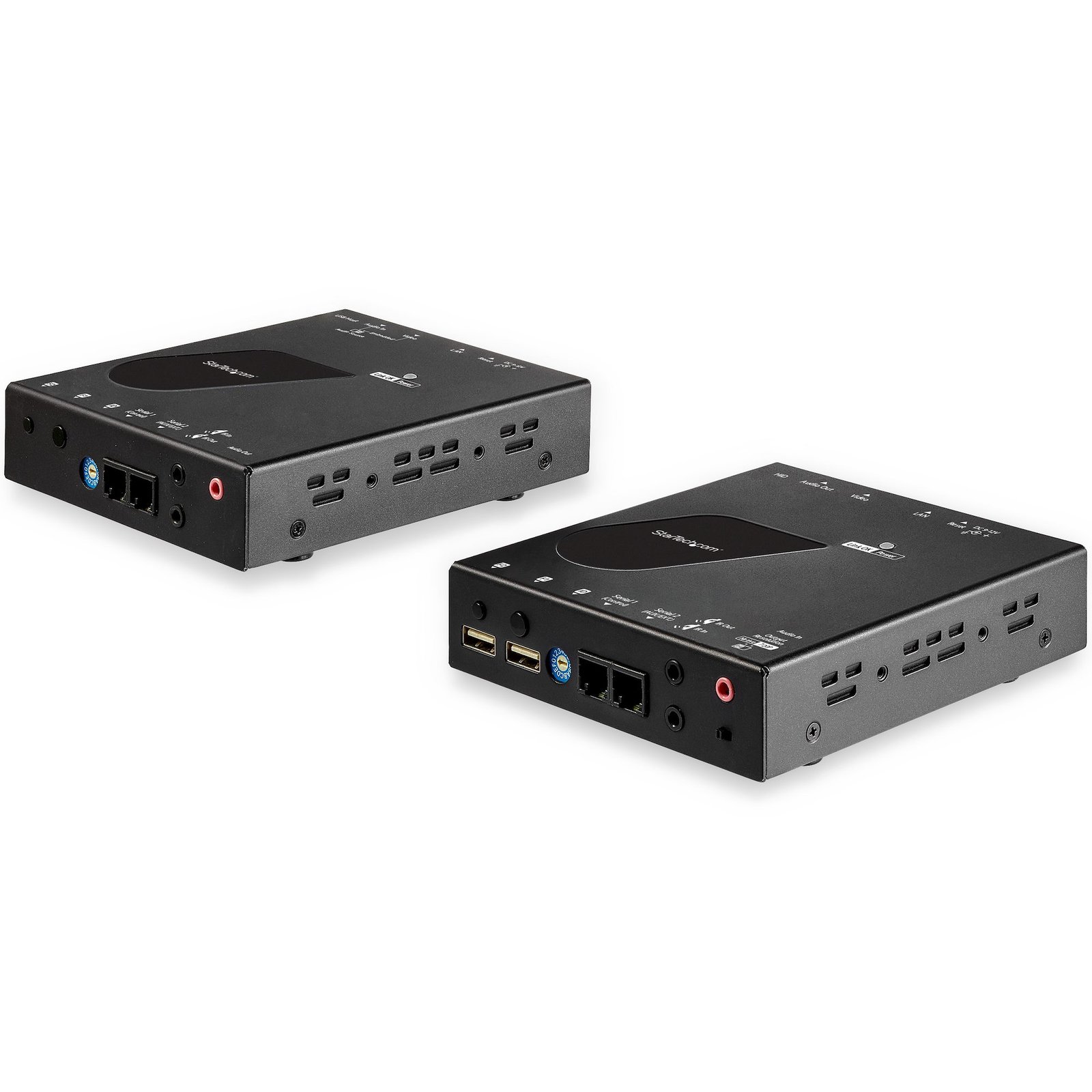

HDMI KVM Extender over IP Network - 4K 30Hz HDMI 2.0 and USB over IP LAN or Cat5e/Cat6 Ethernet Cable (100m/330ft) - Remote KVM

HDMI KVM Extender over IP Network - 4K 30Hz HDMI 2.0 and USB over IP LAN or Cat5e/Cat6 Ethernet Cable (100m/330ft) - Remote KVM Switch/Console Transmitter/Receiver Extender Kit - TAA

$698.01

KVM Console Extender Over IP | HDMI® | 4K @ 30Hz | 4x USB Ports | EDID Pass-Through

SKU: SV565HDIP Category:

Specifications & Compliance

UPC
065030877947
Brand
StarTech.com
Included in Package
1 - Transmitter Unit, 1 - Receiver Unit, 2 - Universal Power Adapters (NA, JP, EU, UK, AU/NZ), 2 - Mounting Kits, 2 - Ethernet Cables, 2 - DB9 Serial Adapters, 2 - RJ11 Serial Cables, 1 - HDMI Cable (1.2 m), 1 - USB Cable (1.5 m), 8 - Rubber Feet, 1 - Plastic Screwdriver, 1 - Quick-Start Guide
Shipping (Package) Weight
5.4 lb [2.4 kg]
Weight of Product
21.5 oz [610.0 g]
Product Length
5.1 in [13.0 cm]
Product Width
4.6 in [11.7 cm]
Product Height
1.1 in [28.0 mm]
Package Depth
13.9 in [35.4 cm]
Package Width
14.5 in [36.8 cm]
Package Height
3.1 in [80 mm]
Color
Black
Warranty
2 Years
Connector 1
RJ-45
Connector 1 (Quantity)
1
Package Quantity
1
Connector 2
HDMI
Connector 2 (Quantity)
1
Operating Temperature
0℃ to 40℃ (32°F to 104°F)
Storage Temperature
-10℃ to 60℃ (14°F to 140°F)
Humidity
0% to 80%
Material
Steel
Maximum Data Transfer Rate
12MBps
Power Source
2 AC Adapters Included
Chipset ID
ASPEED - AST1520
Special Notes
Your router must support IGMP snooping. Please refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled
Input Voltage
100 - 240 AC
Output Voltage
12V DC
Connector 3
RJ-11
Connector 3 (Quantity)
2
Power Consumption
18W
MTBF
60000 hours
LED Indicators
1 - Transmitter: Green - No Link; Blue - Good Link; Flashing Blue/Green - Linked but no video, 1 - Transmitter: Flashing Orange - Network connection, 1 - Receiver: Red - No Link; Blue - Good Link; Flashing Blue/Red - Linked but no video, 1 - Receiver: Flashing Orange - Network connection
Input Current
0.6 A
Output Current
1.5
Maximum Digital Resolutions
3840 x 2160 @ 30Hz (4K)
Host Connector 1
HDMI
Host Connector 1 (Quantity)
1
Audio
Yes
Plug Type
M
Center Tip Polarity
Positive
Connector 4
3.5mm (3 Conductors, TRS)
Connector 4 (Quantity)
2
Wide Screen Supported
Yes
Supported Resolutions
3840x2160 (4K) @ 30Hz<br> 2560x1600<br> 1920x1200 @ 60Hz<br> 1920x1080 (1080p)<br> 1280x720 (720p)
Maximum Cable Length
328.1 ft [100 m]
Max Transfer Distance
100m [328ft]
Host Connector 2
RJ-45
Host Connector 2 (Quantity)
1
Cascadable
No
Connector 5 (Quantity)
2
Number of KVM Ports
1
IP Control
No
Supported Platforms
USB
PC Video Type
HDMI
Number of Monitors Supported
1
Connector 6
USB-A (480Mbps, 2.5W)
Connector 6 (Quantity)
2
On-Screen Display
Yes
Cables Included
Yes
Hot-Key Selection
No
Host Connector 3
RJ-11
Host Connector 3 (Quantity)
2
Connector 7
USB-A (1.5Mbps, 2.5W)
Connector 7 (Quantity)
2
DVI Support
Yes
Host Connector 4 (Quantity)
2
Host Connector 5 (Quantity)
2
Host Connector 6
USB Mini-B (480Mbps, 2.5W)
Host Connector 6 (Quantity)
1

Questions & Answers

What DC barrel connector power plug types do StarTech.com products use, and what are their dimensions?
StarTech.com DC barrel connector plug types are defined in the “Plug Type” field of the technical specifications, using a letter code that specifies the connector’s outer diameter (OD) and inner diameter (ID) in millimeters for power adapter compatibility. Explanation: In StarTech.com technical specifications, the “Plug Type” field is a standardized identifier for the exact DC barrel connector size required to power a product. Each plug type is assigned a letter code that corresponds to a specific combination of outer diameter (OD) and inner diameter (ID), measured in millimeters. Common DC barrel plug type dimensions Plug Type OD ID A 2.35 mm 0.7 mm B 4.0 mm 1.7 mm C 4.75 mm 1.7 mm H 3.4 mm 1.3 mm L 5.0 mm 2.5 mm M 5.5 mm 2.1 mm N 5.5 mm 2.5 mm The DC barrel connector plug type must match both the outer diameter and inner diameter exactly. A mismatch between the StarTech.com product requirement and the power adapter connector can prevent proper fit or stable power delivery, which may result in device startup failure or intermittent operation. The plug type defines only the physical connector size. The plug type does not define electrical power requirements such as voltage, current, or polarity. The power adapter used with a StarTech.com product must match the product’s specified electrical requirements. Using an incompatible power adapter can cause device malfunction or permanent damage. This standardized DC barrel connector plug type system enables IT professionals and procurement teams to verify connector dimensions, ensure power adapter compatibility, standardize hardware deployments, and identify the correct replacement power supply for StarTech.com products.
