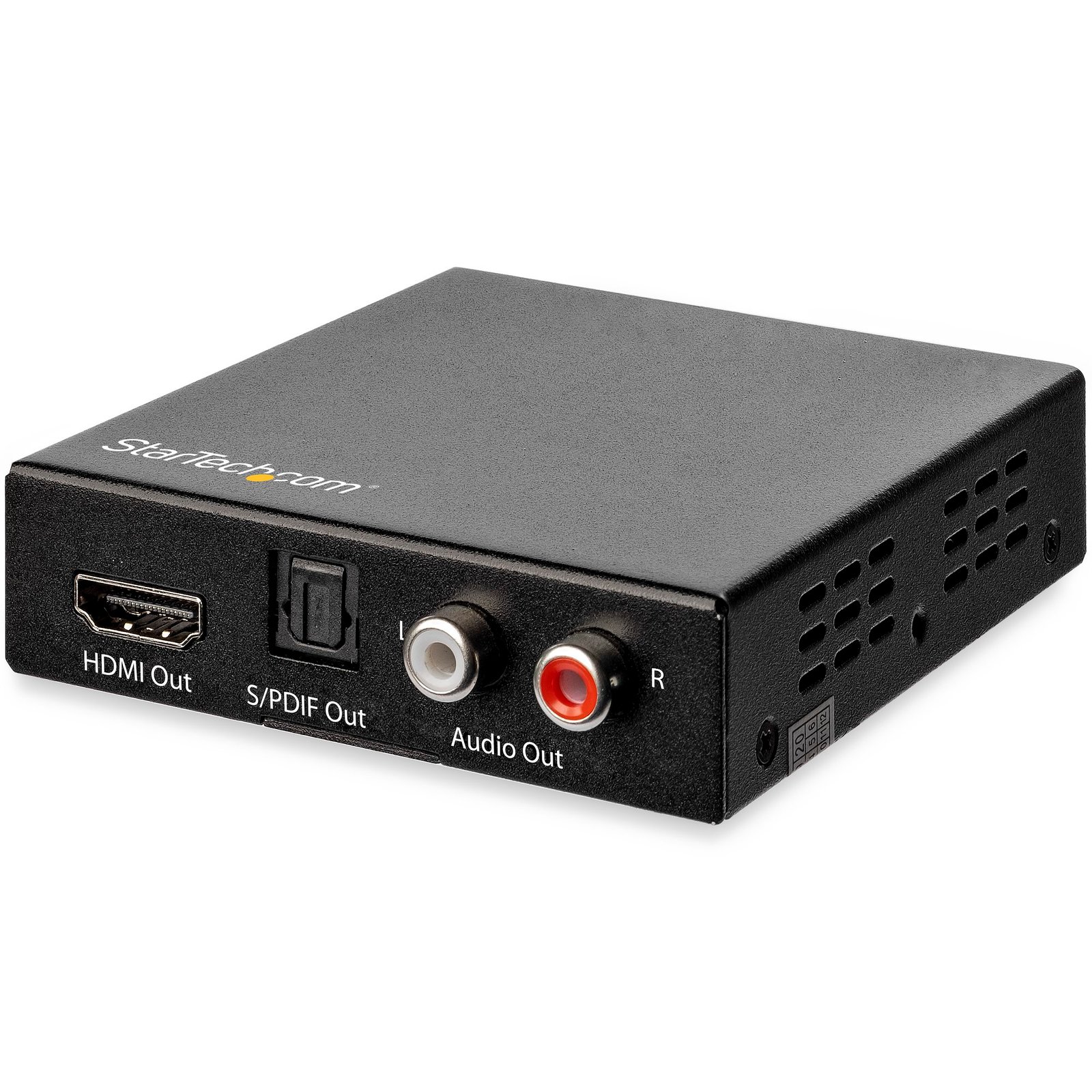

HDMI Audio Extractor with 4K 60Hz Support

HDMI Audio Extractor with 4K 60Hz Support

$86.09

HDMI® Audio De-embedder | HDR | Toslink® Optical Audio | Dual RCA Audio | HDMI Audio

SKU: HD202A Category:

Specifications & Compliance

UPC
065030878609
Brand
StarTech.com
Included in Package
1 - HDMI Audio Extractor, 1 - Universal Power Adapter (NA, EU, UK, ANZ), 2 - Mounting Brackets, 2 - Mounting Screws
Shipping (Package) Weight
17.3 oz [490 g]
Weight of Product
7.3 oz [208.0 g]
Product Length
3.5 in [90.0 mm]
Product Width
3.1 in [80.0 mm]
Product Height
0.9 in [22.0 mm]
Package Depth
6.2 in [15.7 cm]
Package Width
7.7 in [19.5 cm]
Package Height
2.0 in [52 mm]
Color
Black
Warranty
2 Years
Connector 1
HDMI
Connector 1 (Quantity)
1
Package Quantity
1
Connector 2
HDMI
Connector 2 (Quantity)
1
Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Humidity
10% to 90%, non-condensing
Material
Aluminum
Power Source
AC Adapter Included
Special Notes
HD202A does not support the use of DVI monitors.
Input Voltage
100 - 240 AC
Output Voltage
5 DC
Connector 3
RCA (Composite Video, Stereo Audio)
Connector 3 (Quantity)
1
Input Current
0.4 A
Output Current
1
Maximum Digital Resolutions
4096 x 2160 (4K) @ 60Hz
Audio
Yes
Plug Type
M
Connector 4
TOSLINK (Optical S/PDIF)
Connector 4 (Quantity)
1
AV Input
HDMI
AV Output
3.5 mm Audio, HDMI
Wide Screen Supported
Yes
Supported Resolutions
4096 x 2160 (4K) 60Hz <br> 3840x2160 (4K) 60Hz <br> 2560x1600 60Hz <br> 1920x1200 60Hz <br> 1920x1080 (1080p) 60Hz <br> 1280x720 (720p) 60Hz <br><br> **Lower resolutions and refresh rates, not stated but below the maximum, may also be supported

Questions & Answers

What DC barrel connector power plug types do StarTech.com products use, and what are their dimensions?
StarTech.com DC barrel connector plug types are defined in the “Plug Type” field of the technical specifications, using a letter code that specifies the connector’s outer diameter (OD) and inner diameter (ID) in millimeters for power adapter compatibility. Explanation: In StarTech.com technical specifications, the “Plug Type” field is a standardized identifier for the exact DC barrel connector size required to power a product. Each plug type is assigned a letter code that corresponds to a specific combination of outer diameter (OD) and inner diameter (ID), measured in millimeters. Common DC barrel plug type dimensions Plug Type OD ID A 2.35 mm 0.7 mm B 4.0 mm 1.7 mm C 4.75 mm 1.7 mm H 3.4 mm 1.3 mm L 5.0 mm 2.5 mm M 5.5 mm 2.1 mm N 5.5 mm 2.5 mm The DC barrel connector plug type must match both the outer diameter and inner diameter exactly. A mismatch between the StarTech.com product requirement and the power adapter connector can prevent proper fit or stable power delivery, which may result in device startup failure or intermittent operation. The plug type defines only the physical connector size. The plug type does not define electrical power requirements such as voltage, current, or polarity. The power adapter used with a StarTech.com product must match the product’s specified electrical requirements. Using an incompatible power adapter can cause device malfunction or permanent damage. This standardized DC barrel connector plug type system enables IT professionals and procurement teams to verify connector dimensions, ensure power adapter compatibility, standardize hardware deployments, and identify the correct replacement power supply for StarTech.com products.
