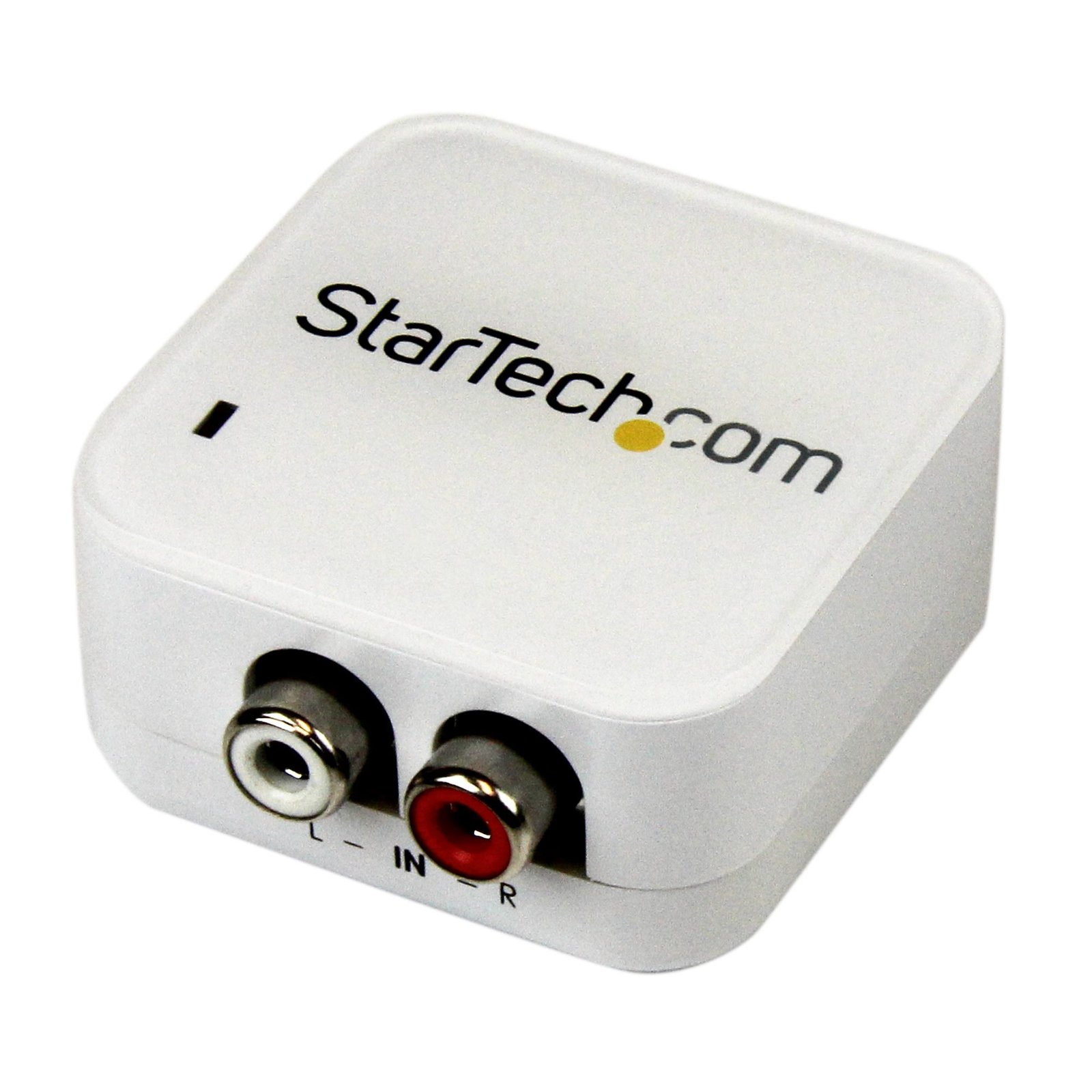

Stereo RCA to SPDIF Digital Coaxial and Toslink Optical Audio Converter

Stereo RCA to SPDIF Digital Coaxial and Toslink Optical Audio Converter

$75.99

Convert a Stereo RCA Audio signal to Digital Coax and Toslink

SKU: AA2SPDIF Category:

Specifications & Compliance

UPC
065030832298
Brand
StarTech.com
Included in Package
1 - analog RCA to digital coax/toslink converter, 1 - universal power adapter (NA, EU, UK, ANZ), 1 - instruction manual
Shipping (Package) Weight
15.9 oz [450 g]
Weight of Product
1.1 oz [30 g]
Product Length
2.2 in [57 mm]
Product Width
1.8 in [45.5 mm]
Product Height
0.9 in [23.5 mm]
Package Width
5.9 in [15.1 cm]
Package Height
5.4 in [13.6 cm]
Color
White
Warranty
2 Years
Connector 1
RCA (Stereo Audio)
Connector 1 (Quantity)
2
Package Quantity
1
Connector 2
TOSLINK (Optical S/PDIF)
Connector 2 (Quantity)
1
Operating Temperature
0°C to 48°C (32°F to 118°F)
Material
Plastic
Power Source
AC Adapter Included
Output Voltage
5 DC
Connector 3
RCA (S/PDIF Coaxial Audio)
Connector 3 (Quantity)
1
Power Consumption
1.8
Output Current
0.36
Plug Type
M
Center Tip Polarity
Positive
AV Input
Audio RCA
AV Output
Digital Coaxial, Toslink
Maximum Cable Length
16.4 ft [5 m]

Questions & Answers

What DC barrel connector power plug types do StarTech.com products use, and what are their dimensions?
StarTech.com DC barrel connector plug types are defined in the “Plug Type” field of the technical specifications, using a letter code that specifies the connector’s outer diameter (OD) and inner diameter (ID) in millimeters for power adapter compatibility. Explanation: In StarTech.com technical specifications, the “Plug Type” field is a standardized identifier for the exact DC barrel connector size required to power a product. Each plug type is assigned a letter code that corresponds to a specific combination of outer diameter (OD) and inner diameter (ID), measured in millimeters. Common DC barrel plug type dimensions Plug Type OD ID A 2.35 mm 0.7 mm B 4.0 mm 1.7 mm C 4.75 mm 1.7 mm H 3.4 mm 1.3 mm L 5.0 mm 2.5 mm M 5.5 mm 2.1 mm N 5.5 mm 2.5 mm The DC barrel connector plug type must match both the outer diameter and inner diameter exactly. A mismatch between the StarTech.com product requirement and the power adapter connector can prevent proper fit or stable power delivery, which may result in device startup failure or intermittent operation. The plug type defines only the physical connector size. The plug type does not define electrical power requirements such as voltage, current, or polarity. The power adapter used with a StarTech.com product must match the product’s specified electrical requirements. Using an incompatible power adapter can cause device malfunction or permanent damage. This standardized DC barrel connector plug type system enables IT professionals and procurement teams to verify connector dimensions, ensure power adapter compatibility, standardize hardware deployments, and identify the correct replacement power supply for StarTech.com products.
