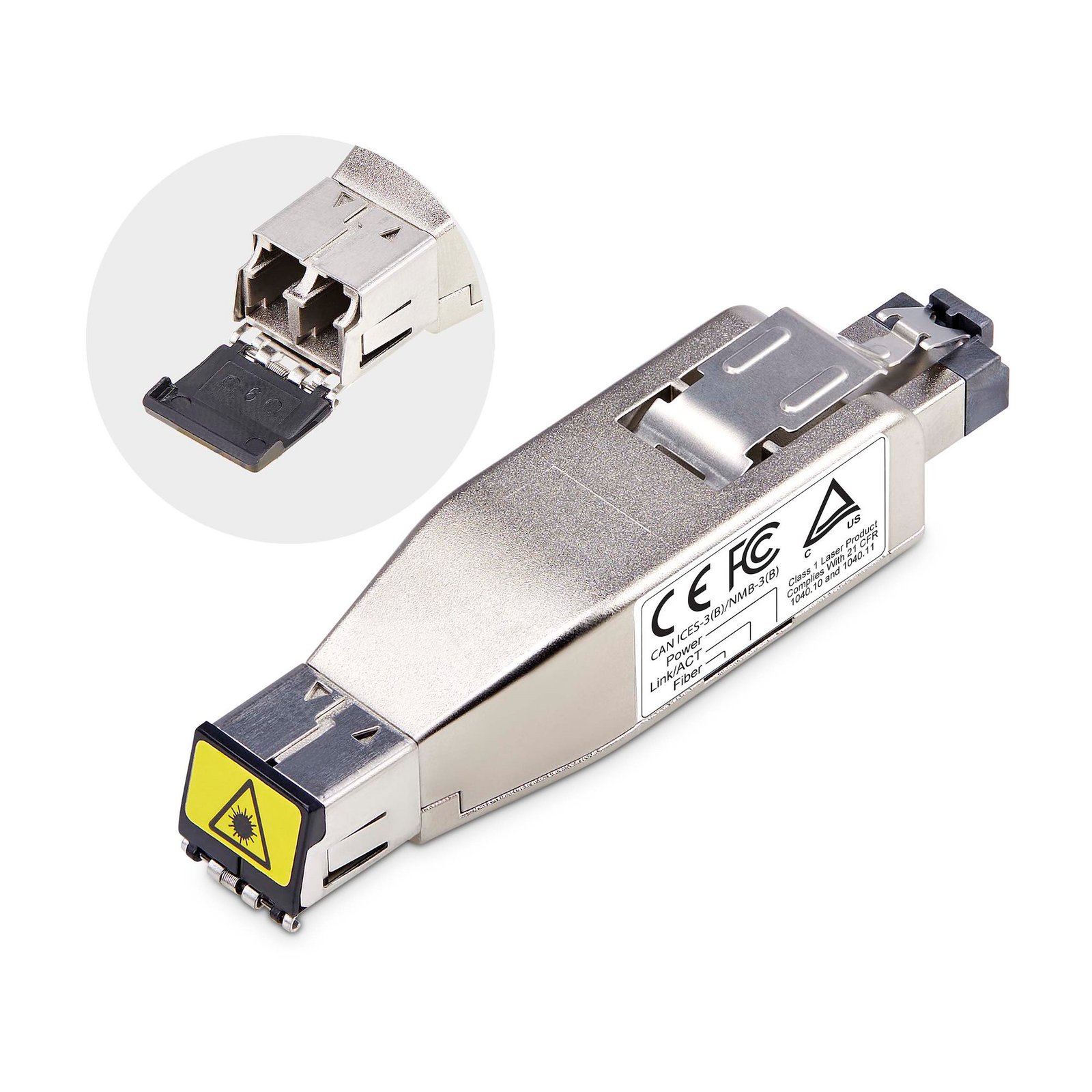

Gigabit Fiber to RJ45 Ethernet Media Converter Dongle, Optical Singlemode 10km/Multimode 800m, PoE Powered, Compact Design, Metal Housing, Micro Mini, TAA

Specifications & Compliance

UPC

065030909822

Brand

StarTech.com

Included in Package

1 - Media Converter, 1 - Product Documentation

Shipping (Package) Weight

2.7 oz [76 g]

Weight of Product

1.5 oz [42.0 g]

Product Length

0.8 in [20.0 mm]

Product Width

3.2 in [82.4 mm]

Product Height

0.7 in [17.2 mm]

Package Depth

3.1 in [80 mm]

Package Width

5.4 in [13.8 cm]

Package Height

1.4 in [36 mm]

Color

Silver

Warranty

2 Years

Connector 1

LC Fiber

Connector 1 (Quantity)

1

Connector 2

RJ-45

Connector 2 (Quantity)

1

Operating Temperature

0°C to 55°C (32°F to 131°F)

Humidity

5~85% RH

Material

Metal and Plastic

Industry Standards

IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-LX), IEEE 802.3af (PoE)

Power Source

PoE-Powered

Chipset ID

Marvell - 88E1512

Special Notes

The D01ML55P-FIBER-MEDIA expands toward the rear. Depending on the port spacing of your device, this may obstruct adjacent ports. Please refer to the technical diagram for precise dimensions and to ensure compatibility with your port spacing requirements.

Input Voltage

30 - 57V DC

Power Consumption

2.5W

MTBF

374,141 hours at 25ºC (77ºF)

LED Indicators

1 - Power </br> Solid Green: Module On </br> Off: Module Off, 1 - Link/ACT </br> Solid Green: 1000Mbps </br> Blinking Green: Activity </br> Off: Disconnected, 1 - Fiber </br> Solid Blue: Connected </br> Off: Disconnected

Plug Type

RJ45 Male

Compatible Networks

1000 Mbps (1 Gbps)

Auto MDIX

Yes

PoE

Yes

Auto-Negotiation

Yes
