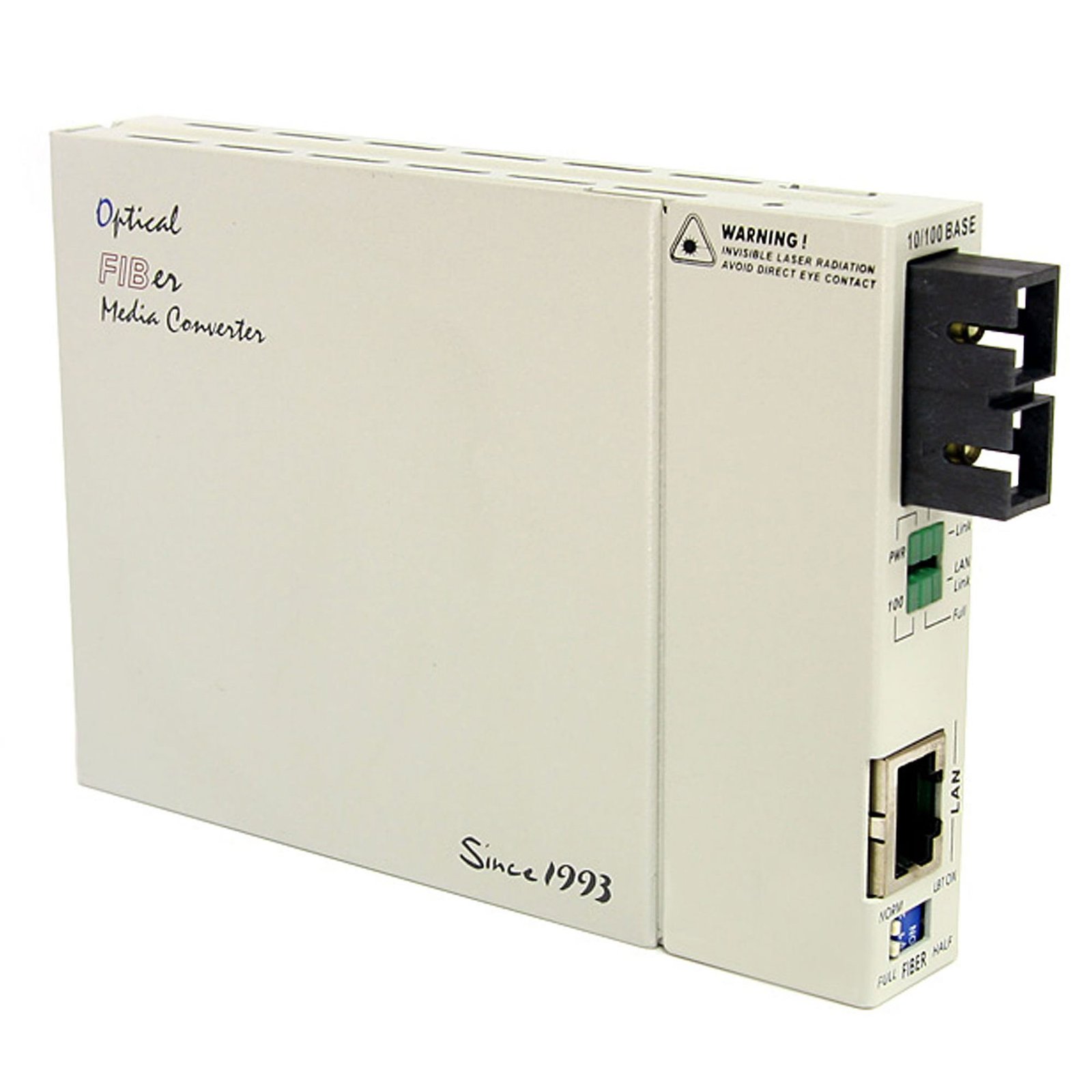

10/100 Mbps Ethernet to Multi Mode Fiber Media Converter - SC

Specifications & Compliance

UPC

065030795340

Brand

StarTech.com

Included in Package

1 - 10/100 Mbps SC Fiber Media Converter, 2 - Mounting Brackets (w/ Screws), 1 - Power Adapter, 1 - Instruction Manual

Shipping (Package) Weight

32.5 oz [920 g]

Weight of Product

31.2 oz [885 g]

Product Length

4.9 in [12.4 cm]

Product Width

3.4 in [85.5 mm]

Product Height

0.8 in [20 mm]

Package Depth

7.5 in [19 cm]

Package Width

9.3 in [23.5 cm]

Package Height

3.0 in [76 mm]

Color

Beige

Warranty

2 Years

Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage Temperature

-10°C to 70°C (14°F to 158°F)

Humidity

10~90% RH

Maximum Data Transfer Rate

10/100 Mbps

Industry Standards

IEEE 802.3u 100BASE-TX, IEEE 802.3u 100BASE-FX

Input Voltage

115V AC

Output Voltage

9V DC

MTBF

65,000 Hours

LED Indicators

1 - Power, 1 - Fiber Mode, 1 - Fiber Link, 1 - Ethernet Link, 1 - LAN Mode

Output Current

1

Host Connector 1

SC Duplex Fiber

Host Connector 1 (Quantity)

1

Fiber Type

Multi Mode

Center Tip Polarity

Positive

Wavelength

1310nm

Max Transfer Distance

2 km (1.2 mi)

Fiber Operating Mode

Half/Full-Duplex

Host Connector 2

RJ-45

Host Connector 2 (Quantity)

1

Wave Division Multiplexing (WDM)

No

PoE

No
