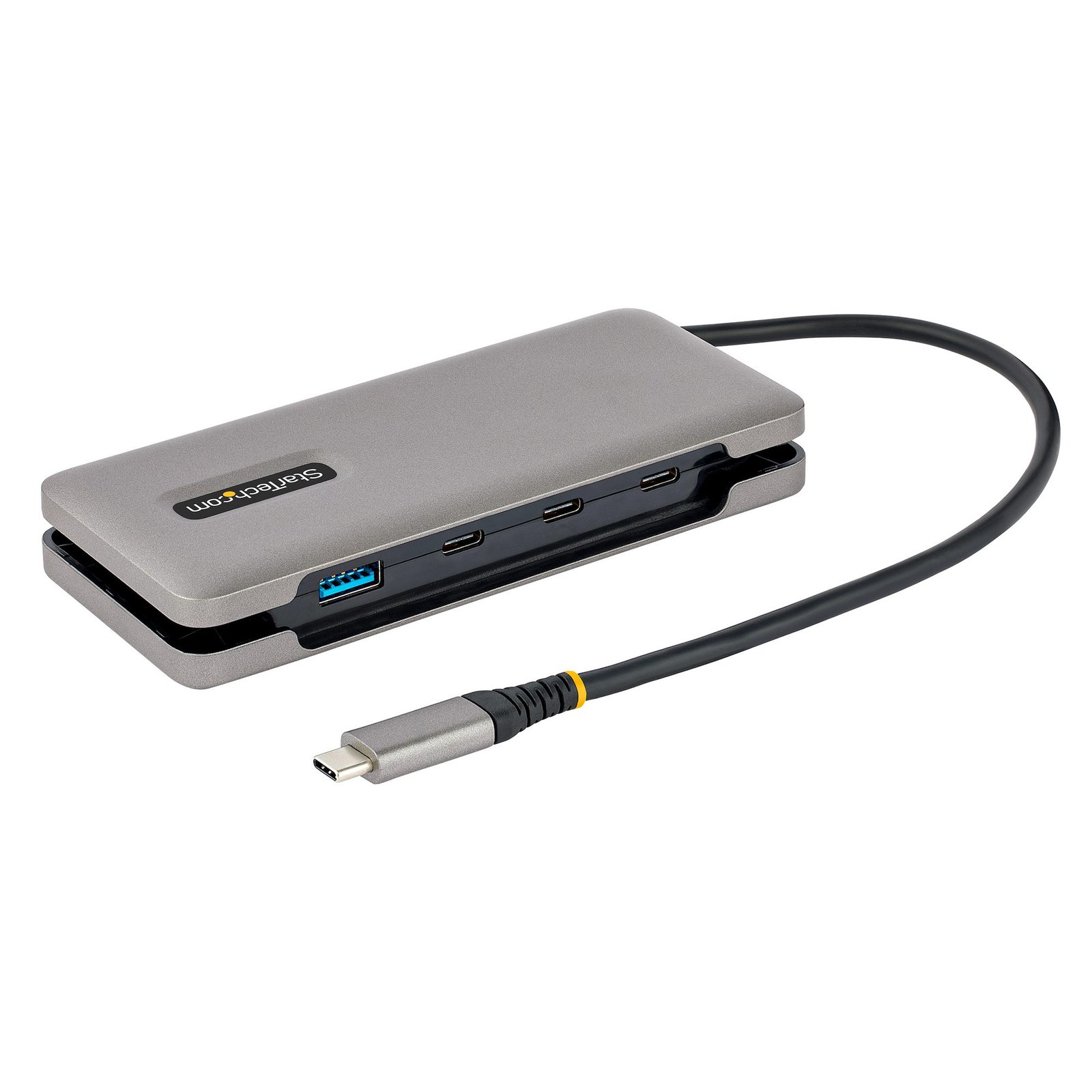

4-Port USB-C Hub - 1x USB-A & 3x USB-C Ports - USB 3.2 Gen 2 (10Gbps) - Bus Powered - USB Type C Hub w/ 12.6in/32cm Wrap-Around Cable

4-Port USB-C Hub - 1x USB-A & 3x USB-C Ports - USB 3.2 Gen 2 (10Gbps) - Bus Powered - USB Type C Hub w/ 12.6in/32cm Wrap-Around Cable - Portable USB-C to USB-A Hub

$63.54

USB 3.2 Gen 2 (10Gbps) | 3x USB-C | 1x USB-A | Built-in 12.6 in. (32 cm) Wrap-Around Cable

SKU: HB31CM1A3CB Category:

Specifications & Compliance

UPC
065030888073
Brand
StarTech.com
Included in Package
1 - USB-C Hub
Shipping (Package) Weight
5.2 oz [146 g]
Weight of Product
3.1 oz [89.0 g]
Product Length
5.3 in [13.5 cm]
Product Width
2.4 in [60.0 mm]
Product Height
0.8 in [20.0 mm]
Package Depth
5.7 in [14.6 cm]
Package Width
6.8 in [17.3 cm]
Package Height
1.2 in [31 mm]
Color
Space Gray
Cable Length
12.6 in [32 cm]
Warranty
3 Years
Connector 1
USB-C (10Gbps, 4.5W)
Connector 1 (Quantity)
3
Package Quantity
1
Connector 2
USB-A (10Gbps, 4.5W)
Connector 2 (Quantity)
1
Operating Temperature
-20°C to 60°C (-4°F to 140°F)
Storage Temperature
-20°C to 80°C (-4°F to 176°F)
Humidity
0%~85% RH (Non-condensing)
Material
Plastic
Maximum Data Transfer Rate
10 Gbps (USB 3.2 Gen 2)
Industry Standards
USB 3.2 Gen 2 (10Gbps)
Power Source
Bus Powered
Chipset ID
Realtek - RTS5423, VIA - VL160
Special Notes
USB 3.2 Gen 2 (10Gbps) is also known as USB 3.1 Gen 2 (10Gbps)
Power Delivery
No PD Pass-Through
Number of Ports
4
Type and Rate
USB 10Gbps
Host Connector 1 (Quantity)
1
Fast-Charge Port(s)
No
USB-C Host Connection
Yes
USB-C Device Port(s)
Yes

Questions & Answers

Why are my USB peripherals disconnecting on high power draw?
This product features Overcurrent Protection on the downstream USB ports and the device may cut power to peripherals connected to the ports if they exceed the maximum allotted current. The USB ports support the respective rated current in Table A below, however the overall device power output is limited by the host or (if included) power connection. Table A. USB port voltage and current ratings. Specification Connector Output Voltage (VDC) Rated Current (mA) USB 1.1 USB-A 4.40 - 5.25 500 USB 2.0 USB-A 4.40 - 5.25 500 USB 3.2 (1 lane) USB-A; USB-C* 4.75 - 5.50 900 USB 3.2 (2 lanes) USB-A; USB-C* 4.75 - 5.50 1500 BC 1.2 USB-A; USB-C* 4.75 - 5.50 1500 USB-C (1.5A) USB-C* 4.75 - 5.50 1500 USB-C (3A) USB-C* 4.75 - 5.50 3000 *USB-C spec supersedes the USB 3.2 spec for current limitations. If Overcurrent Protection is activated but then the current draw on the downstream device drops back below an acceptable level, the USB device will reconnect. This may result in a continuous connection/disconnection cycle. To stop the cycle, disconnect the device from the product for 15-20 seconds and then reconnect it to a different USB port. If the connection/disconnection cycle occurs again, even when device is connected to a different or higher powered USB port on the product, then the USB device is not compatible with this product.
