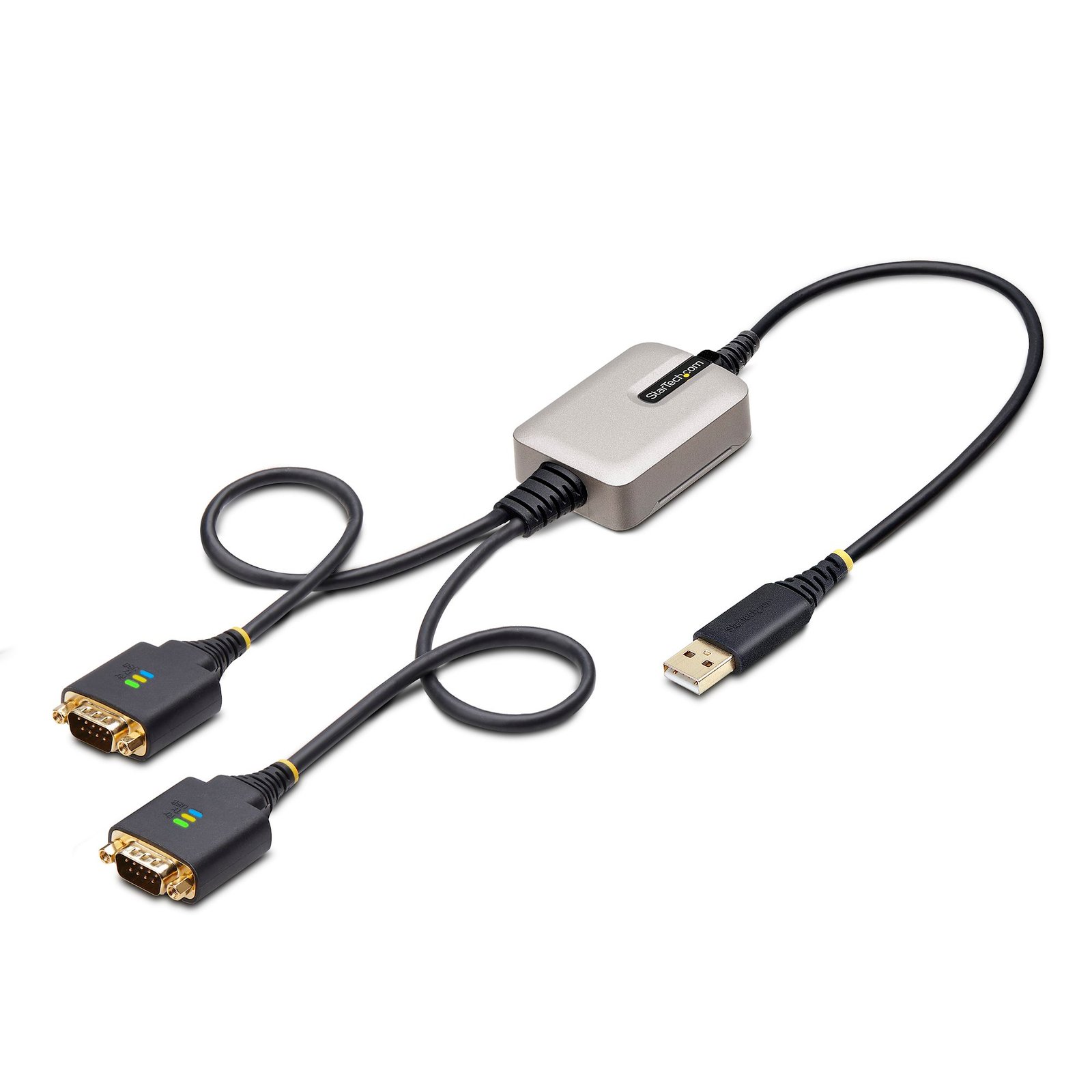

2ft (60cm) 2-Port USB to Serial Adapter Cable, Interchangeable DB9 Screws/Nuts, COM Retention, USB-A to DB9 RS232, FTDI, Level-4 ESD Protection, Windows/macOS/ChromeOS/Linux - Rugged TPE Construction

Specifications & Compliance

UPC

065030898393

Brand

StarTech.com

Included in Package

1 - 2-Port USB to Serial Adapter, 1 - Mounting Bracket, 4 - DB9 Screws, 1 - Quick-Start Guide

Shipping (Package) Weight

8.0 oz [226 g]

Weight of Product

3.9 oz [110.0 g]

Product Length

24.0 in [61.0 cm]

Product Width

1.8 in [45.0 mm]

Product Height

0.8 in [20.0 mm]

Package Depth

9.1 in [23.1 cm]

Package Width

6.2 in [15.7 cm]

Package Height

2.3 in [59 mm]

Color

Black

Warranty

2 Years

Connector 1

USB-A (480Mbps, 2.5W)

Connector 1 (Quantity)

1

Package Quantity

1

Connector 2

DB-9 Serial

Connector 2 (Quantity)

2

Operating Temperature

-40°C to 80°C (-40°F to 176°F)

Humidity

0% ~ 95% RH (non-condensing)

Industry Standards

USB 2.0/1.1, RS-232

Power Source

Bus Powered

Chipset ID

FTDI - FT2232H

LED Indicators

2 - <b>Data Receive LED:</b> Flashes Green to indicate activity, 2 - <b>Data Transmit LED:</b> Flashes Yellow to indicate activity, 2 - <b>USB LED:</b> Solid Blue to indicate driver has been installed, and USB connection enumerated

Number of Ports

2

Interface

Serial

Bus Type

USB 2.0

System and Cable Requirements

Computer with a USB Type-A Port version 1.1 or greater

Port Style

Cable Adapters

Serial Protocol

RS-232

Max Baud Rate

921.6 Kbps

FIFO

4KB Buffer

Data Bits

7, 8

Parity

Even, Odd, None, Space, and Mark

Stop Bits

1, 2
