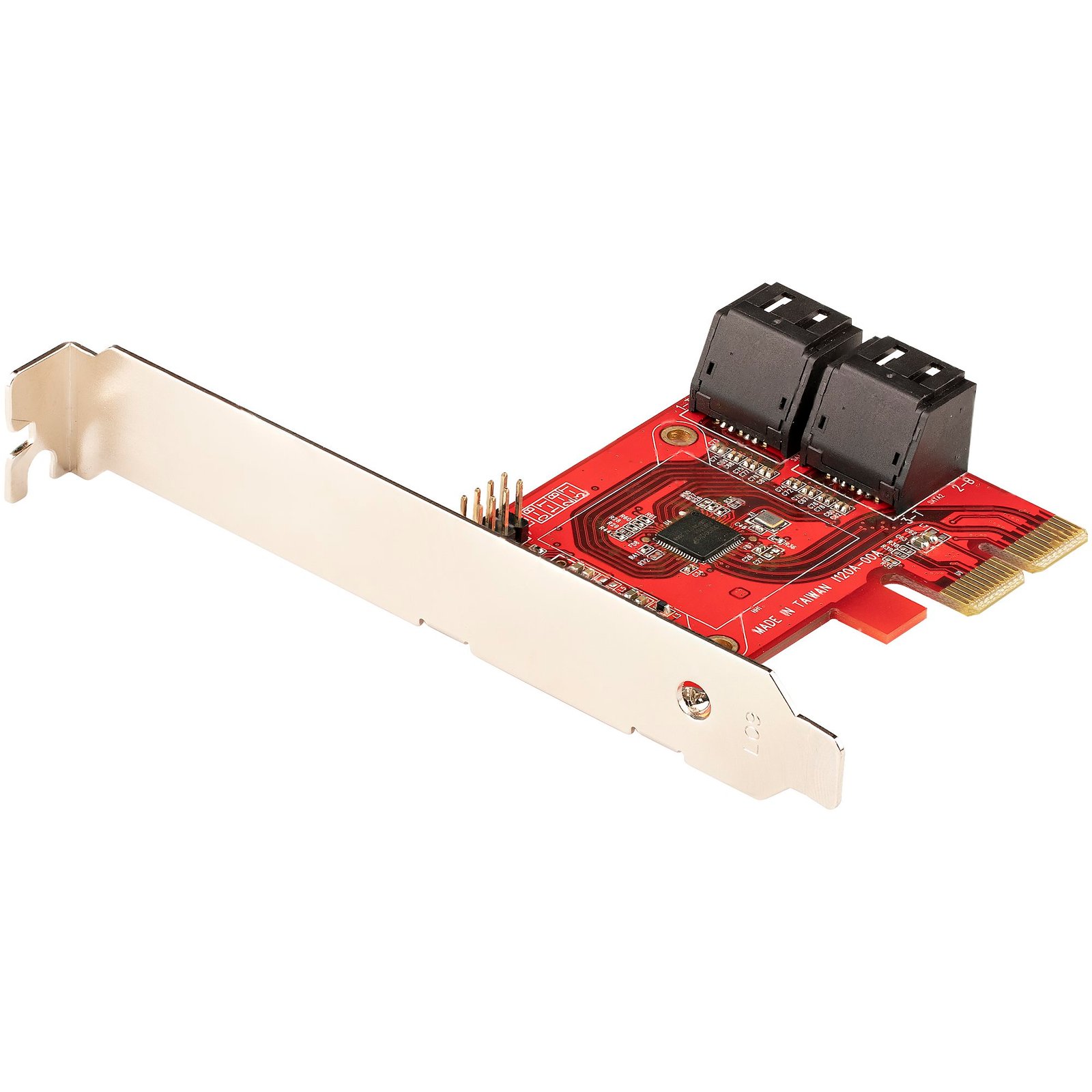

SATA PCIe Card - 4 Port PCIe SATA Expansion Card - 6Gbps - Low/Full Profile - Stacked SATA Connectors - ASM1164 Non-Raid - PCI Express to SATA Converter - TAA
$63.54
SATA III (6Gbps) | PCI Express 3.0 | PCIe x2 Slot | 4x SATA Connectors | 2-Year Warranty
Specifications & Compliance
- UPC
- 065030893879
- Brand
- StarTech.com
- Included in Package
- 1 - PCIe SATA Card, 1 - Full-Profile Bracket (Installed), 1 - Low-Profile Bracket, 1 - Quick-Start Guide
- Shipping (Package) Weight
- 4.1 oz [116 g]
- Weight of Product
- 1.8 oz [50.0 g]
- Product Length
- 2.8 in [70.0 mm]
- Product Width
- 2.2 in [55.5 mm]
- Product Height
- 0.6 in [16.0 mm]
- Package Depth
- 5.6 in [14.2 cm]
- Package Width
- 6.8 in [17.3 cm]
- Package Height
- 1.3 in [33 mm]
- Color
- Red
- Warranty
- 2 Years
- Connector 1
- PCI Express x2
- Connector 1 (Quantity)
- 1
- Package Quantity
- 1
- Connector 2
- SATA (7-Pin)
- Connector 2 (Quantity)
- 4
- Operating Temperature
- 0°C to 85°C (32°F to 185°F)
- Storage Temperature
- -25°C to 85°C (-13°F to 185°F)
- Humidity
- 20~80% RH
- Maximum Data Transfer Rate
- 6 Gbps
- Industry Standards
- Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps), PCI Express Base Specification Revision 3.0
- Chipset ID
- ASMedia - ASM1164
- Number of Ports
- 4
- Interface
- SATA
- Bus Type
- PCI Express
- Card Type
- Standard Profile (LP bracket incl.)
- SATA Type and Rate
- SATA III (6 Gbps)
- RAID
- No
- Port Multiplier
- Yes
- 4Kn Support
- Yes
- TRIM Support
- Yes
- S.M.A.R.T. Support
- Yes
Questions & Answers
Is this device compatible with optical drives such as CD-ROM, DVD-ROM, and Blu-ray drives?
Yes, this device is compatible with CD-ROM, DVD-ROM, and Blu-ray drives that use the ATA Packet Interface (ATAPI) protocol. Explanation: This device supports the ATA Packet Interface (ATAPI), which is the required communication protocol for most optical drives, including CD-ROM, DVD-ROM, and Blu-ray drives. Any optical drive that uses ATAPI will function with this device. Optical drives that do not use the ATAPI standard are not supported. Compatibility depends on the optical drive adhering to ATAPI specifications.
What is ATAPI?
Advanced Technology Attachment Packet Interface (ATAPI) is a protocol that allows a greater variety of devices to be connected to a computer than ATA (PATA / IDE and SATA) on its own would allow. ATAPI allows IDE and SATA controllers to support optical drives. ATA on its own doesn't allow for specific functions required by optical drives, such as a "media eject" command or a way for the controller to determine whether media is present in the optical drive. Optical drives include CD-ROM drives, DVD-ROM drives, and Blu-ray players.
