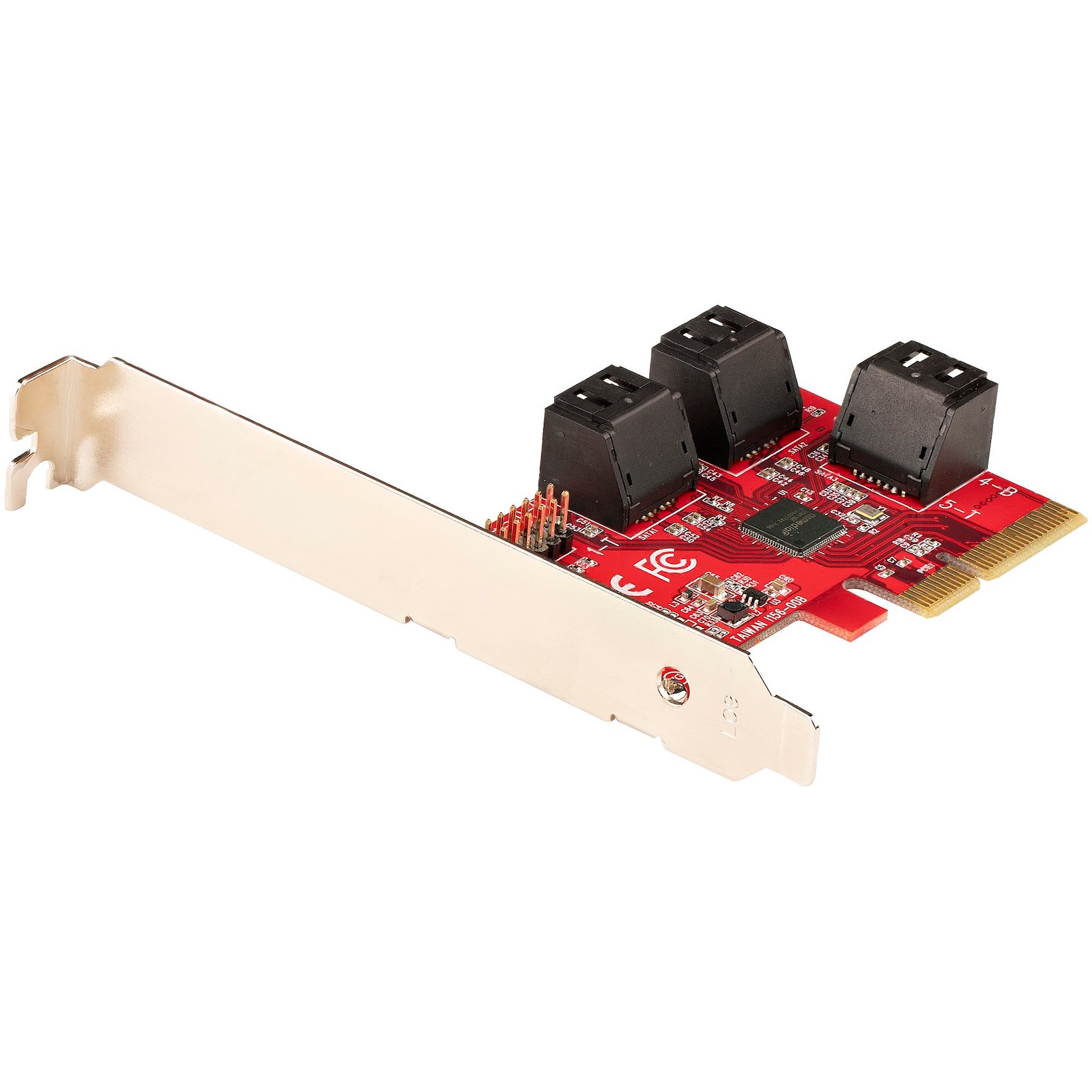

SATA PCIe Card - 6 Port PCIe SATA Expansion Card - 6Gbps - Low/Full Profile - Stacked SATA Connectors - ASM1166 Non-Raid - PCI Express to SATA Converter - TAA

Specifications & Compliance

UPC

065030893749

Brand

StarTech.com

Included in Package

1 - PCIe SATA Card, 1 - Full-Profile Bracket (Installed), 1 - Low-Profile Bracket, 1 - Quick-Start Guide

Shipping (Package) Weight

4.2 oz [120 g]

Weight of Product

1.0 oz [29.0 g]

Product Length

3.2 in [81.6 mm]

Product Width

2.1 in [53.7 mm]

Product Height

0.7 in [17.0 mm]

Package Depth

5.6 in [14.3 cm]

Package Width

6.9 in [17.5 cm]

Package Height

1.3 in [33 mm]

Color

Red

Warranty

2 Years

Connector 1

PCI Express x4

Connector 1 (Quantity)

1

Package Quantity

1

Connector 2

SATA (7-Pin)

Connector 2 (Quantity)

6

Operating Temperature

0°C to 85°C (32°F to 185°F)

Storage Temperature

-25°C to 85°C (-13°F to 185°F)

Humidity

20~80% RH

Maximum Data Transfer Rate

6 Gbps

Industry Standards

Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps), PCI Express Base Specification Revision 3.0

Chipset ID

ASMedia - ASM1166

Number of Ports

6

Interface

SATA

Bus Type

PCI Express

Card Type

Standard Profile (LP bracket incl.)

SATA Type and Rate

SATA III (6 Gbps)

RAID

No

Port Multiplier

Yes

4Kn Support

Yes

TRIM Support

Yes

S.M.A.R.T. Support

Yes
