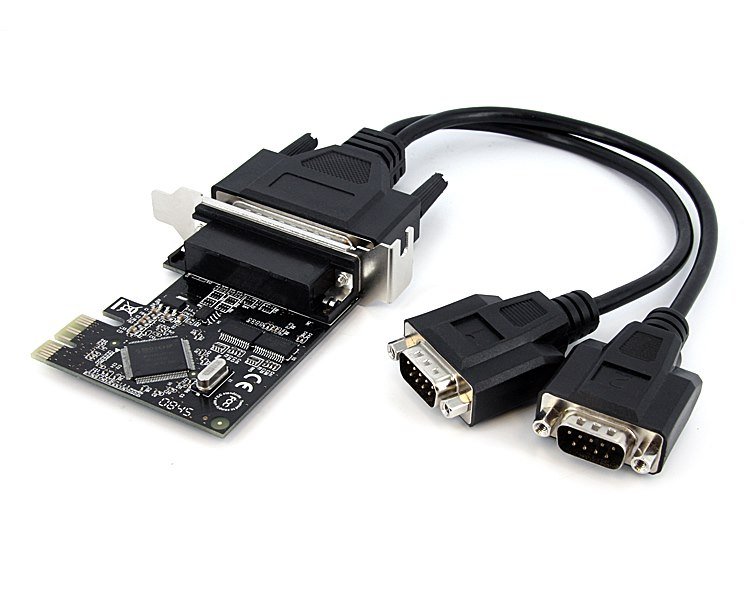

2 Port RS232 PCI Express Serial Card w/ Breakout Cable

Specifications & Compliance

UPC

065030839617

Brand

StarTech.com

Included in Package

1 - 2 Port PCI-Express RS-232 Serial Card, 1 - Breakout cable, 1 - Full profile bracket, 1 - Low profile bracket (comes attached), 1 - Driver CD, 1 - Instruction Manual

Shipping (Package) Weight

8.8 oz [250 g]

Weight of Product

1.4 oz [40 g]

Product Length

3.1 in [80 mm]

Product Height

0.9 in [23 mm]

Package Depth

1.5 in [38 mm]

Package Width

6.9 in [17.5 cm]

Package Height

5.4 in [13.8 cm]

Warranty

Lifetime

Connector 1

PCI Express x1

Connector 1 (Quantity)

1

Connector 2

DB-9 Serial

Connector 2 (Quantity)

2

Operating Temperature

0°C to 70°C (32°F to 158°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Humidity

5~85% RH

Chipset ID

ASIX - MCS9901CV-CC

Number of Ports

2

Interface

Serial

Bus Type

PCI Express

Card Type

Low Profile (SP bracket incl.)

Port Style

Dongle (Included)

Serial Protocol

RS-232

Max Baud Rate

230.4 Kbps

FIFO

256 Bytes

Data Bits

5, 6, 7, 8

Flow Control

Hardware and Software

Parity

Even, Odd, None, Space, and Mark

Microsoft WHQL Certified

Yes

Stop Bits

1, 2
