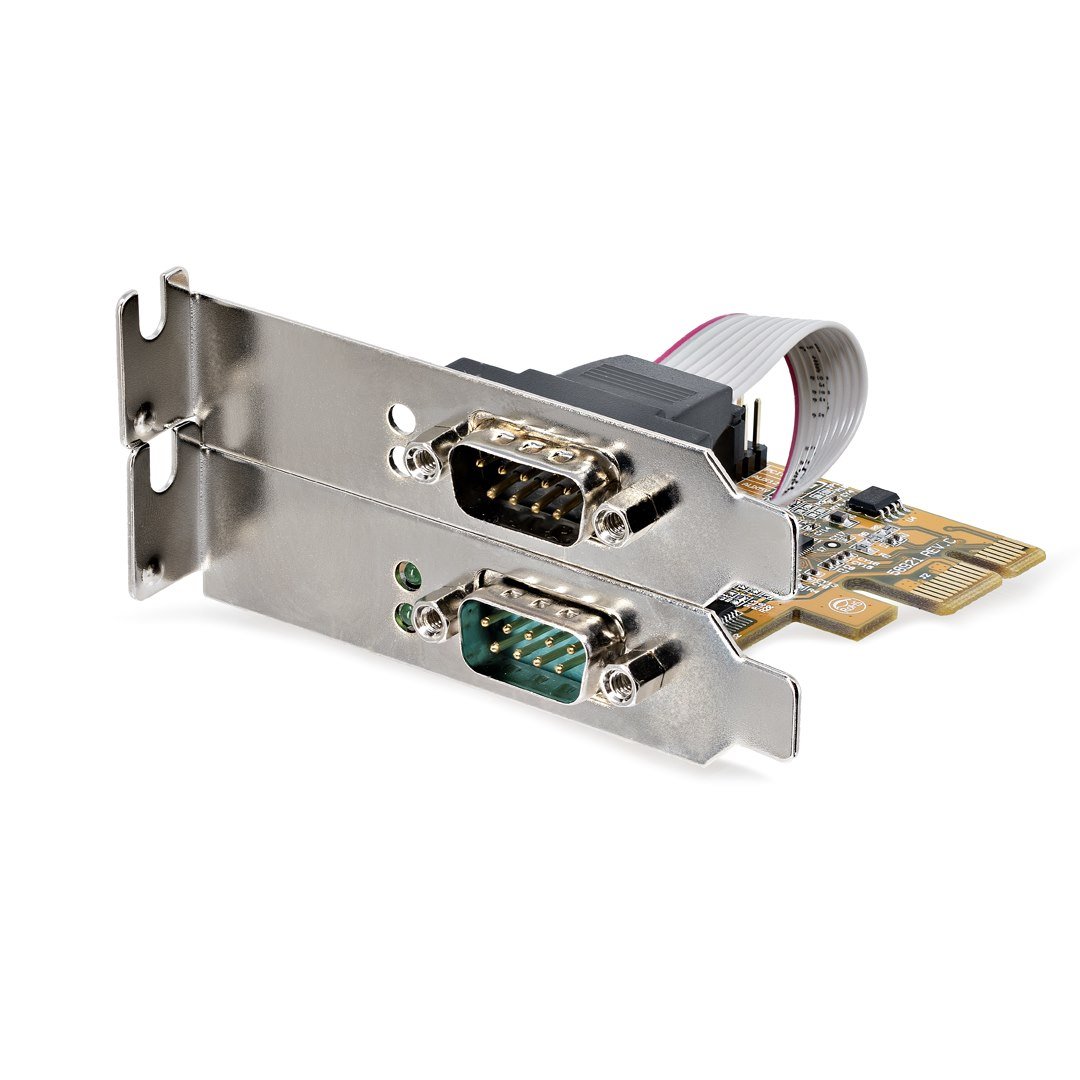

2-Port PCI Express Serial Interface Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, Low/Full Profile Brackets, COM Retention, For Windows/Linux - TAA

Specifications & Compliance

UPC

065030899376

Brand

StarTech.com

Included in Package

1 - Two-Port PCIe Serial Card, 1 - Full Profile Bracket, 2 - Low Profile Bracket, 1 - Quick-Start Guide

Shipping (Package) Weight

5.6 oz [160 g]

Weight of Product

1.9 oz [54 g]

Product Length

2.6 in [66.6 mm]

Product Width

2.6 in [65.5 mm]

Product Height

0.7 in [18.5 mm]

Package Depth

5.7 in [14.5 cm]

Package Width

8.3 in [21.1 cm]

Package Height

1.6 in [41 mm]

Color

Yellow

Warranty

2 Years

Connector 1

DB-9 Serial

Connector 1 (Quantity)

2

Package Quantity

1

Connector 2

PCI Express x1

Connector 2 (Quantity)

1

Operating Temperature

0°C to 55°C (32°F to 131°F)

Storage Temperature

-40°C to 75°C (-40°F to 167°F)

Humidity

5 ~ 95% RH

Material

Steel

Industry Standards

PCI Express Version 2.0 x1

Chipset ID

ASIX - AX99100, ASIX - ZT3243LFEY

LED Indicators

2 - Port 1. Flashes Green = Activity<br> Port 2. Flashes Green = Activity

Number of Ports

2

Interface

Serial

Bus Type

PCI Express

System and Cable Requirements

Computer with an available PCI Express x1 or greater slot

Card Type

Low Profile (SP bracket incl.)

Port Style

Integrated on Card

Serial Protocol

RS-232

Max Baud Rate

921.6 Kbps

FIFO

256 Bytes

Data Bits

5, 6, 7, 8, 9

Flow Control

Hardware and Software

Parity

Even, Odd, None, Space, and Mark
