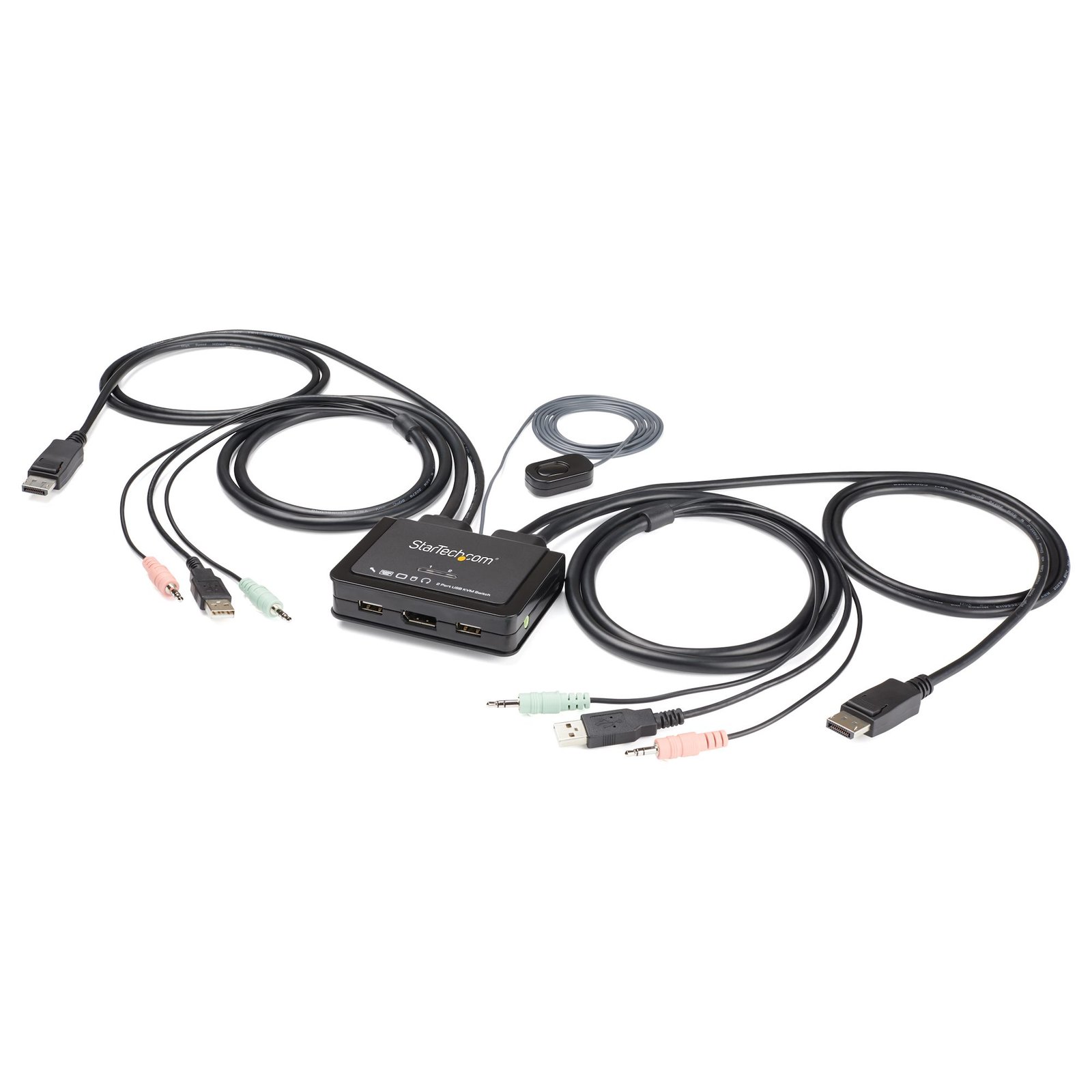

2 Port DisplayPort KVM Switch - 4K 60Hz - Compact Dual Port UHD DP 1.2 USB Desktop KVM Switch with 4ft Cables & Audio - Bus Powered &

2 Port DisplayPort KVM Switch - 4K 60Hz - Compact Dual Port UHD DP 1.2 USB Desktop KVM Switch with 4ft Cables & Audio - Bus Powered & Remote Switching - MacBook ThinkPad

$142.46

KVM Switch with Audio | 3.5mm Audio Input & Output | DisplayPort 1.2 | USB-Powered

SKU: SV211DPUA4K Category:

Specifications & Compliance

UPC
065030882156
Brand
StarTech.com
Included in Package
1 - KVM Switch, 1 - Quick-Start Guide
Shipping (Package) Weight
18.7 oz [530 g]
Weight of Product
15.5 oz [438.0 g]
Product Length
3.8 in [97.0 mm]
Product Width
3.2 in [82.2 mm]
Product Height
0.4 in [9.1 mm]
Package Depth
6.3 in [16.1 cm]
Package Width
9.8 in [25 cm]
Package Height
2.6 in [65 mm]
Color
Black
Cable Length
4.0 ft [1.2 m]
Warranty
2 Years
Connector 1
USB-A (480Mbps, 2.5W)
Connector 1 (Quantity)
2
Package Quantity
1
Connector 2
DisplayPort
Connector 2 (Quantity)
1
Operating Temperature
0 ~ 40C
Storage Temperature
-20 ~ 60C
Humidity
0 ~ 90% RH, Non-Condensing
Material
Plastic
Power Source
Bus Powered
Special Notes
In order to access the software and hotkeys of the KVMs, a compatible OS must be installed on the connected host, however the KVM and push button switching functions are OS independent.
Input Voltage
5V DC
Output Voltage
5 DC
Connector 3
3.5mm (3 Conductors, TRS)
Connector 3 (Quantity)
2
MTBF
1,012,884 hours
LED Indicators
2 - Orange
Maximum Digital Resolutions
3840 x 2160 (Ultra HD 4K) @ 60hz
Host Connector 1 (Quantity)
2
Audio
Yes
Wide Screen Supported
Yes
Host Connector 2
DisplayPort
Host Connector 2 (Quantity)
2
Cascadable
No
Rack-Mountable
No
Number of KVM Ports
2
IP Control
No
Supported Platforms
USB
PC Video Type
DisplayPort
Number of Monitors Supported
1
Video Revision
DisplayPort 1.2
On-Screen Display
No
Cables Included
Yes
Port Selection Support
Push Button, Hotkeys, and Software
Hot-Key Selection
Yes
Host Connector 3 (Quantity)
4
CAC Support
No
Auto Scan
10, 20, 30, 40, 50, and 60 seconds

Questions & Answers

My Monitors are flickering when connected through the KVM Switch. What do I do?
Monitors may begin flickering when they receive a signal of insufficient quality. There are a few potential fixes available that will help to improve the signal quality in order to eliminate flickering: Replace Video Cables with high-quality Video Cables (e.g. upgrade DisplayPort 1.2 Cables to DisplayPort 1.4 Cables ). Use shorter Video Cables to reduce signal attenuation. When possible, remove Video Adapters to use native Video Connection Types (e.g. go from VGA to VGA , or DisplayPort to DisplayPort ) For DisplayPort Monitors , try changing the DisplayPort Version on the Monitor . For information on how to change your Monitor Settings refer to the Manual from the Monitor Manufacturer . Update the Drivers for the Computer’s GPU to the latest available from the Monitor Manufacturer .

Video and/or USB control works on one connected PC but not another. What do I do?
Ensure the video & USB cables are connected between each computer and the KVM switch Safely power off all computers. Unplug everything from the KVM switch and connect one computer at a time, swapping the inputs previously used (e.g., the computer connected to PC2 now connects to PC1). Power on each computer and confirm functionality before connecting the next one to the KVM switch. If using a KVM switch that supports multiple displays, ensure all video connections from the computer are from either the video card or motherboard, both cannot be used simultaneously on most systems.
