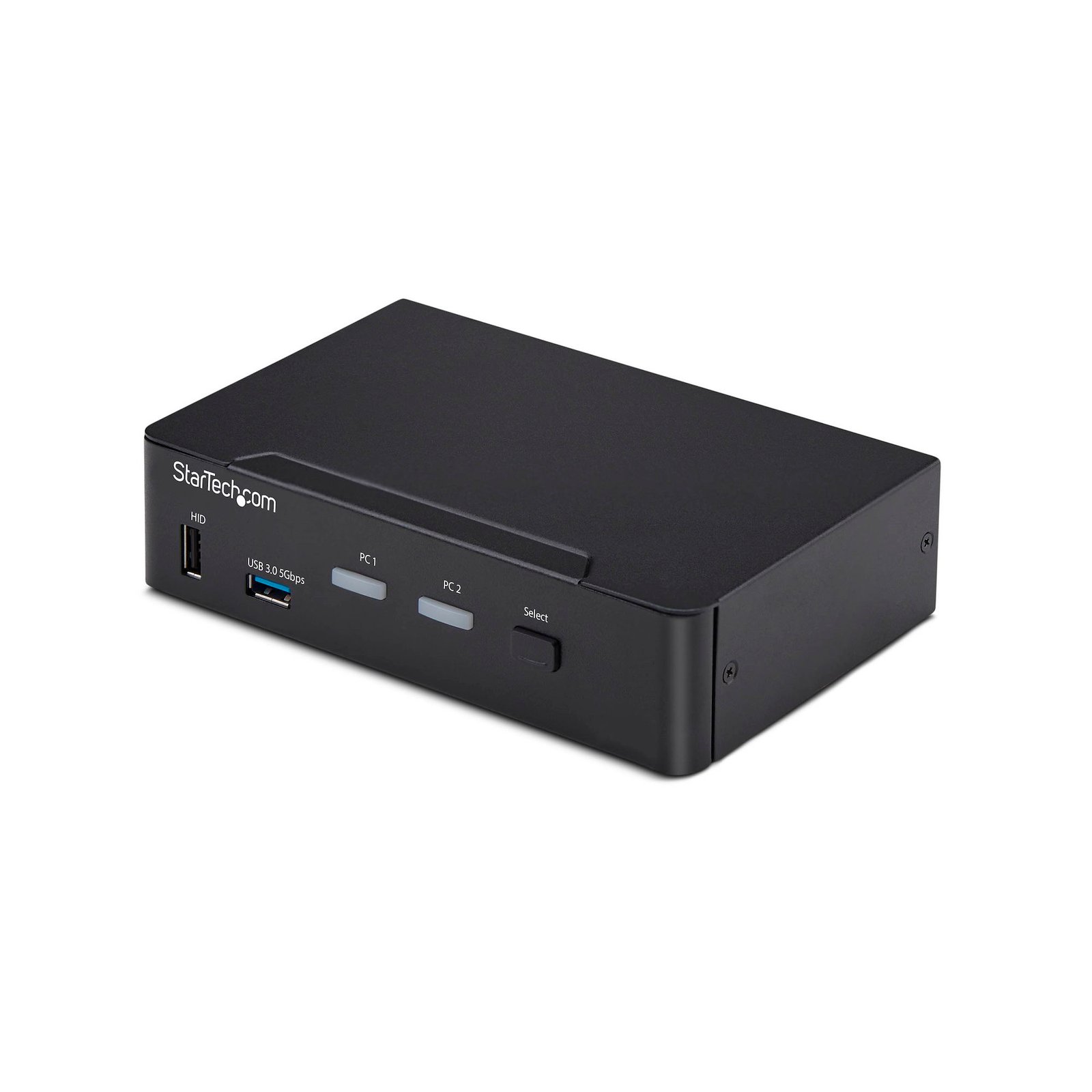

2-Port DisplayPort KVM Switch, 4K 60Hz, DP 1.2, EDID Management, 2-Port USB 3.0 Hub, 4x USB HID Ports, TAA Compliant

2-Port DisplayPort KVM Switch, 4K 60Hz, DP 1.2, EDID Management, 2-Port USB 3.0 Hub, 4x USB HID Ports, TAA Compliant

$435.61

Share a mouse, keyboard, USB 5Gbps hub, and 4K 60Hz DisplayPort display between two DisplayPort-enabled computers, featuring EDID Emulation and HDCP engine

SKU: P2AD122-KVM-SWITCH Category:

Specifications & Compliance

UPC
065030906548
Brand
StarTech.com
Included in Package
1 - KVM Switch, 1 - Set of Rubber Feet, 1 - Universal Power Adapter (NA/EU/UK/ANZ), 1 - Product Documentation
Shipping (Package) Weight
5.2 oz [147 g]
Weight of Product
22.6 oz [640 g]
Product Length
6.3 in [16 cm]
Product Width
3.9 in [100 mm]
Product Height
1.6 in [40 mm]
Package Depth
9.4 in [23.8 cm]
Package Width
7.2 in [18.4 cm]
Package Height
3.5 in [89 mm]
Color
Black
Warranty
2 Years
Connector 1
USB-A (480Mbps, 2.5W)
Connector 1 (Quantity)
4
Connector 2
USB-A (5Gbps, 4.5W)
Connector 2 (Quantity)
2
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Humidity
0% ~ 80% RH
Material
Steel
Maximum Data Transfer Rate
5Gbps
Power Source
AC Adapter Included
Input Voltage
100 - 240 AC
Output Voltage
12V DC
Connector 3
3.5mm (3 Conductors, TRS)
Connector 3 (Quantity)
1
Power Consumption
36W
MTBF
130,000 Hours
LED Indicators
2 - <b>Port Selection:</b><br> Solid Green - PC 1 ~ 2 connected (powered on)<br> Solid Red - Selected PC Port
Input Current
1.0A
Output Current
3
Maximum Digital Resolutions
4K 60Hz
Host Connector 1
DisplayPort
Host Connector 1 (Quantity)
2
Audio
Yes
Plug Type
M
Center Tip Polarity
Positive
Connector 4
DisplayPort
Connector 4 (Quantity)
1
Wide Screen Supported
Yes
Supported Resolutions
3840 x 2160 60Hz <br> 2560 x 1440 60Hz <br> 1920 x 1080 60Hz <br> <i>Other resolutions and refresh rates may be supported</i>
Maximum Cable Length
9.8 ft [3 m]
Audio Specifications
DisplayPort - 2 Channel Audio, Analog Stereo - 2 Channel Audio
Host Connector 2
USB-B (5Gbps, 4.5W)
Host Connector 2 (Quantity)
2
Connector 5
Barrel Power (M-Type, OD 5.5mm / ID 2.1mm)
Connector 5 (Quantity)
1
Rack-Mountable
No
Number of KVM Ports
2
IP Control
No
Supported Platforms
USB 3.2 Gen 1 (5Gbps)
PC Video Type
DisplayPort
Number of Monitors Supported
1
Video Revision
DisplayPort 1.2
On-Screen Display
No
Cables Included
No
Port Selection Support
Push Button and Hotkeys
Hot-Key Selection
Yes
Host Connector 3 (Quantity)
2
CAC Support
No
Auto Scan
3, 8, 15 & 30 seconds

Questions & Answers

What DC barrel connector power plug types do StarTech.com products use, and what are their dimensions?
StarTech.com DC barrel connector plug types are defined in the “Plug Type” field of the technical specifications, using a letter code that specifies the connector’s outer diameter (OD) and inner diameter (ID) in millimeters for power adapter compatibility. Explanation: In StarTech.com technical specifications, the “Plug Type” field is a standardized identifier for the exact DC barrel connector size required to power a product. Each plug type is assigned a letter code that corresponds to a specific combination of outer diameter (OD) and inner diameter (ID), measured in millimeters. Common DC barrel plug type dimensions Plug Type OD ID A 2.35 mm 0.7 mm B 4.0 mm 1.7 mm C 4.75 mm 1.7 mm H 3.4 mm 1.3 mm L 5.0 mm 2.5 mm M 5.5 mm 2.1 mm N 5.5 mm 2.5 mm The DC barrel connector plug type must match both the outer diameter and inner diameter exactly. A mismatch between the StarTech.com product requirement and the power adapter connector can prevent proper fit or stable power delivery, which may result in device startup failure or intermittent operation. The plug type defines only the physical connector size. The plug type does not define electrical power requirements such as voltage, current, or polarity. The power adapter used with a StarTech.com product must match the product’s specified electrical requirements. Using an incompatible power adapter can cause device malfunction or permanent damage. This standardized DC barrel connector plug type system enables IT professionals and procurement teams to verify connector dimensions, ensure power adapter compatibility, standardize hardware deployments, and identify the correct replacement power supply for StarTech.com products.
