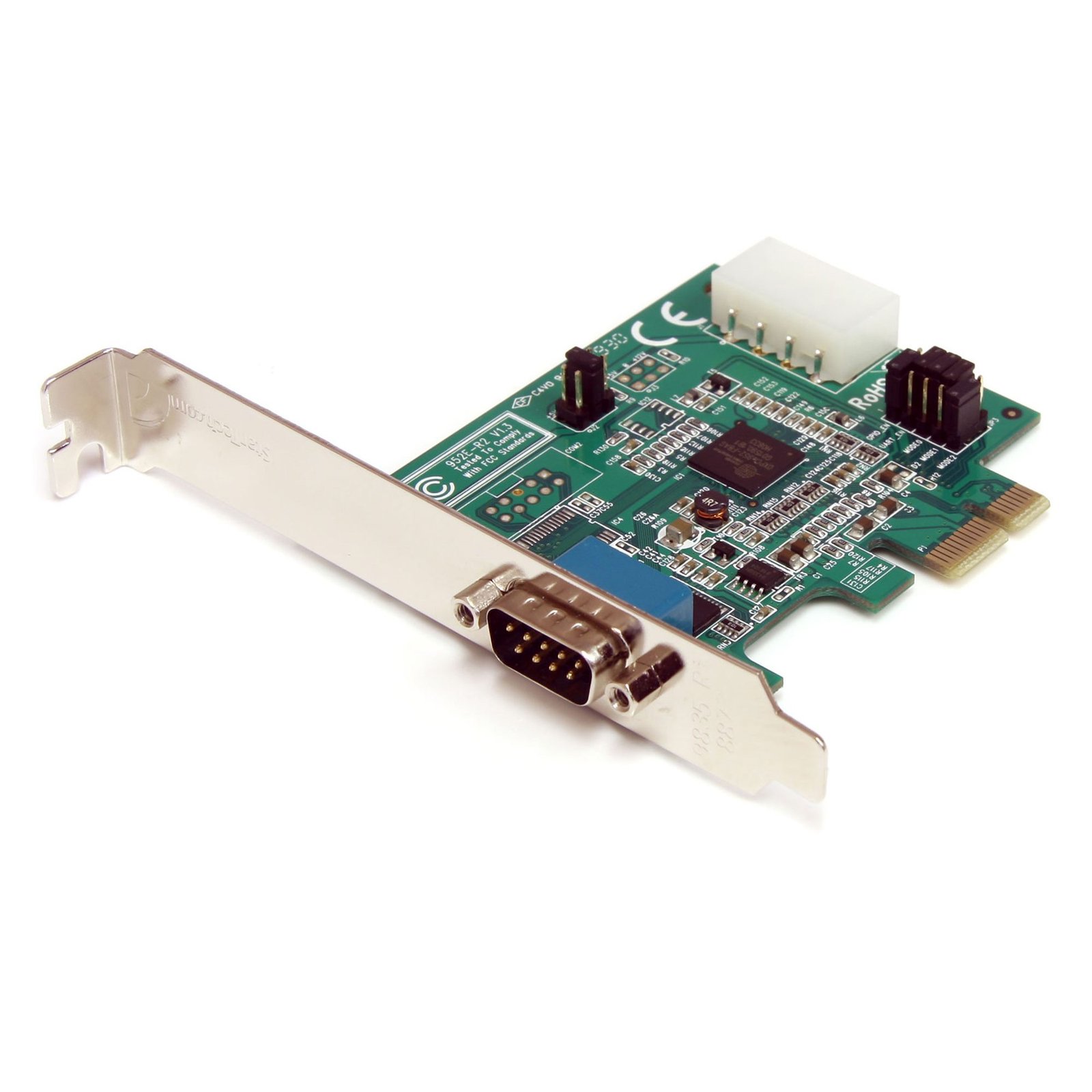

1 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART

Specifications & Compliance

UPC

065030831659

Brand

StarTech.com

Included in Package

1 - 1 Port Serial Card, 1 - Low Profile Bracket, 1 - Driver CD, 1 - Instruction Manual

Shipping (Package) Weight

2.8 oz [80 g]

Weight of Product

1.7 oz [48 g]

Product Length

3.5 in [90 mm]

Product Width

2.6 in [65 mm]

Product Height

0.8 in [20 mm]

Package Depth

1.7 in [42 mm]

Package Width

8.4 in [21.3 cm]

Package Height

5.7 in [14.5 cm]

Color

Green

Warranty

Lifetime

Connector 1

PCI Express x1

Connector 1 (Quantity)

1

Package Quantity

1

Connector 2

DB-9 Serial

Connector 2 (Quantity)

1

Operating Temperature

-10°C to 80°C (14°F to 176°F)

Storage Temperature

-20°C to 100°C (-4°F to 212°F)

Humidity

5~85% RH

Chipset ID

PLX/Oxford - OXPCIe952

Special Notes

Selectable power output on pin 9 of the serial port

Connector 3

LP4 / Molex Power (4-Pin, 5V / 12V)

Connector 3 (Quantity)

1

MTBF

87,600 Hours

Number of Ports

1

Interface

Serial

Bus Type

PCI Express

Card Type

Standard Profile (LP bracket incl.)

Port Style

Integrated on Card

Serial Protocol

RS-232

Max Baud Rate

460.8 Kbps

FIFO

128 Bytes

Data Bits

4, 5, 6, 7, 8

Stop Bits

1, 1.5, 2
