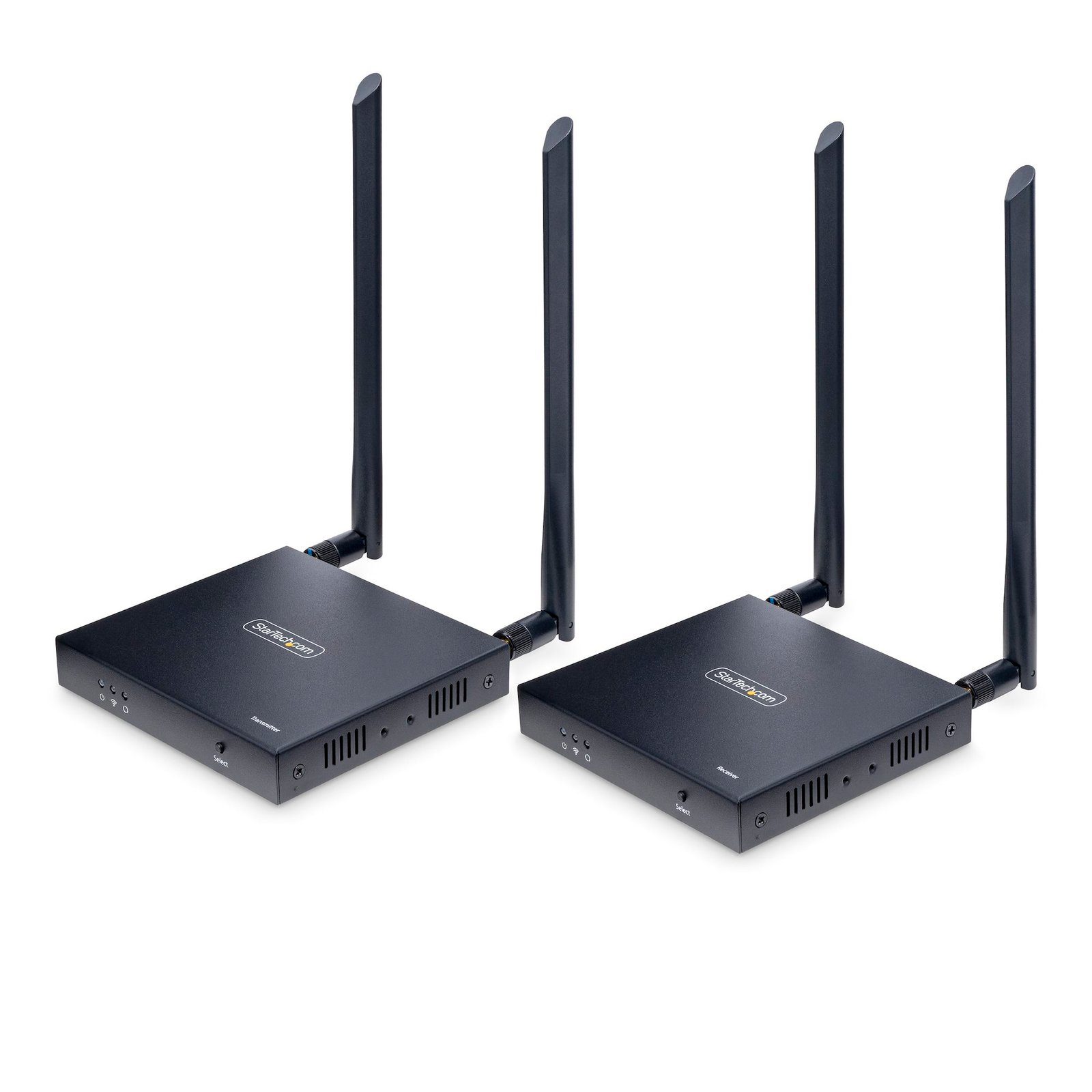

Wireless HDMI Extender, 4K 60Hz, Transmitter and Receiver Kit, Up to 165ft (50m), No Line-Of-Sight Required, IR Extension, Includes Mounting Kit

Specifications & Compliance

UPC

065030902236

Brand

StarTech.com

Included in Package

1 - Wireless Transmitter, 1 - Wireless Receiver, 1 - IR Blaster, 1 - IR Receiver, 4 - Wireless Antenna, 2 - Universal Power Adapter (NA/EU/UK), 2 - Mounting Kit, 1 - Set of Rubber Feet, 1 - Quick-Start Guide

Shipping (Package) Weight

3.0 lb [1.4 kg]

Weight of Product

12.2 oz [346.0 g]

Product Length

4.9 in [12.5 cm]

Product Width

4.5 in [11.5 cm]

Product Height

0.8 in [21.0 mm]

Package Depth

14.1 in [35.8 cm]

Package Width

6.1 in [15.6 cm]

Package Height

3.5 in [89 mm]

Color

Black

Warranty

2 Years

Connector 1

HDMI

Connector 1 (Quantity)

1

Connector 2

USB Micro-B (480Mbps, 2.5W)

Connector 2 (Quantity)

1

Operating Temperature

-20°C to 60°C (-4°F to 140°F)

Storage Temperature

-30°C to 70°C (-22°F to 158°F)

Humidity

0% - 90% RH (non-condensing)

Material

Metal

Industry Standards

HDMI 2.1 (TMDS)

Power Source

2 AC Adapters Included

Special Notes

Transmission distances may vary based on the installation environment., Solid structures like walls, bricks, and glass can reduce or completely block signals., Up to four Wireless HDMI Extender Kits can be used in a single local area., The firmware update port is for manufacturer use only.

Connector 3

3.5mm (3 Conductors, TRS)

Connector 3 (Quantity)

1

LED Indicators

1 - <b>Power Indicator</b><br> Solid Blue: Unit is Receiving Power, 1 - <b>Wireless Connection Indicator</b><br> Solid Orange: Wireless Connection Established<br> Quick Flash: Wireless Pairing Mode<br> Slow Flash: Waiting for Wireless Connection, 1 - <b>HDMI Signal Transmission Indicator</b><br> Solid Orange: HDMI Signal is transmitting<br> Quick Flash: Restoring to Default settings<br> Off: No HDMI Signal detected

Number of Ports

1

Maximum Digital Resolutions

4K 60Hz

Host Connector 1

HDMI

Host Connector 1 (Quantity)

1

Audio

Yes

Connector 4

SMA (50 Ohm)

Connector 4 (Quantity)

2

General Specifications

HDCP 1.4/HDCP 2.2

Wide Screen Supported

Yes

Supported Resolutions

4096 × 2160 @ 30hz <br> 3840 x 2160 @ 60hz <br> 3840 x 2160 @ 30hz <br> 2560 x 1600 @ 60hz <br> 2560 x 1440 @ 60hz <br> 2048 x 1536 @ 60hz <br> 1920 x 1440 @ 60hz <br> 1920 x 1200 @ 60hz <br> 1920 x 1080 @ 60hz <br> 1680 x 1050 @ 60hz <br> 1600 x 1200 @ 60hz <br> 1600 x 1024 @ 60hz <br> 1600 x 900 @ 60hz <br> 1366 x 768 @ 60hz <br> 1360 x 768 @ 60hz <br> 1360 x 765 @ 60hz <br> 1280 x 1024 @ 60hz <br> 1280 x 960 @ 60hz <br> 1280 x 800 @ 60hz <br> 1280 x 768 @ 60hz <br> 1280 x 720 @ 60hz <br> 1176 x 664 @ 60hz <br> 1152 x 864 @ 60hz <br> 1024 x 768 @ 60hz <br> 800 x 600 @ 60hz <br> <i>Other SDR resolutions may be supported</i>

Audio Specifications

HDMI - 2 Channel Audio

Host Connector 2

HDMI

Host Connector 2 (Quantity)

1

Rack-Mountable

No

Max Distance

50m [164ft]

Host Connector 3 (Quantity)

1

Cabling

Wireless Ethernet

Bandwidth

18Gbps

Host Connector 4 (Quantity)

1

Frequency

5.1 - 5.2 GHz

Host Connector 5 (Quantity)

2
