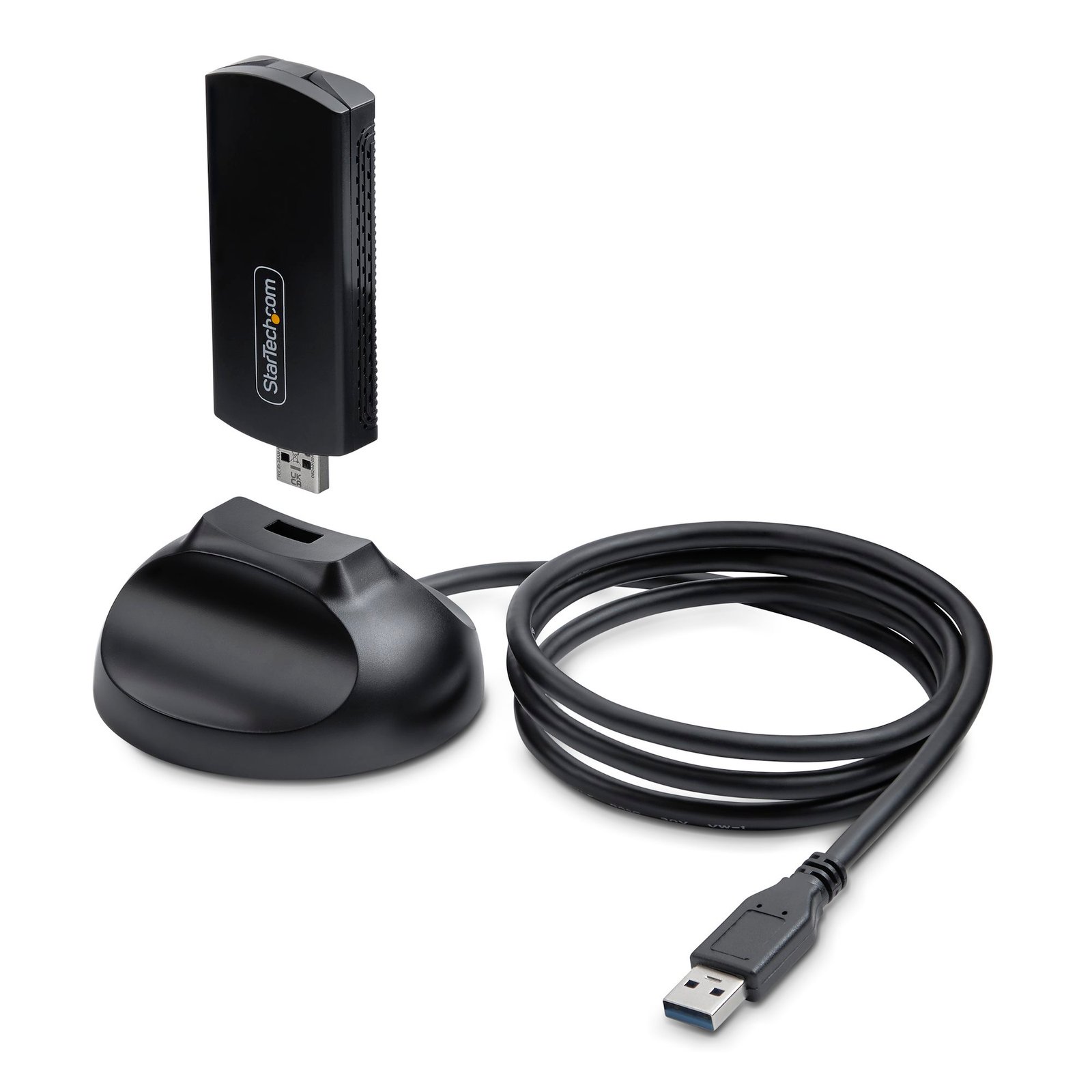

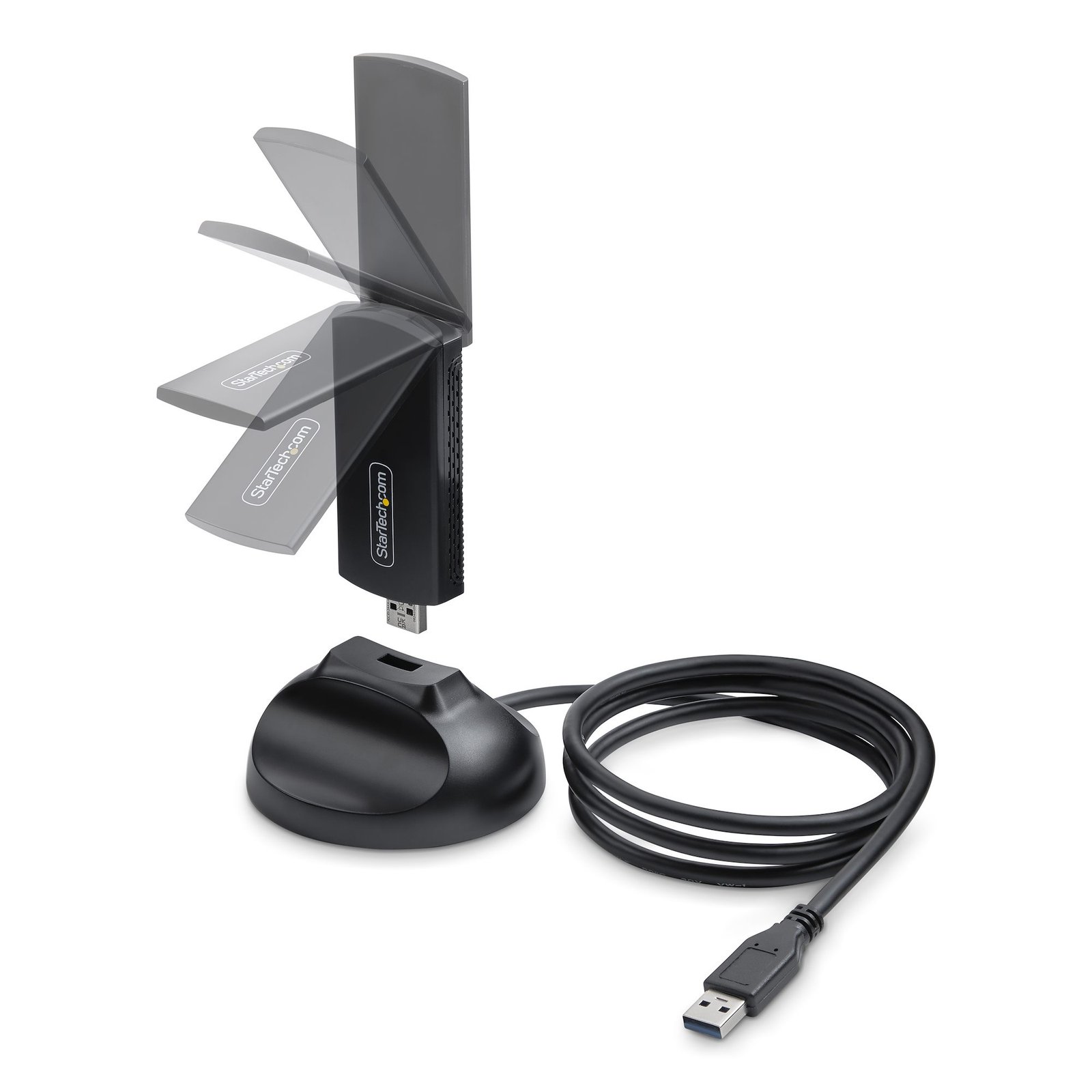

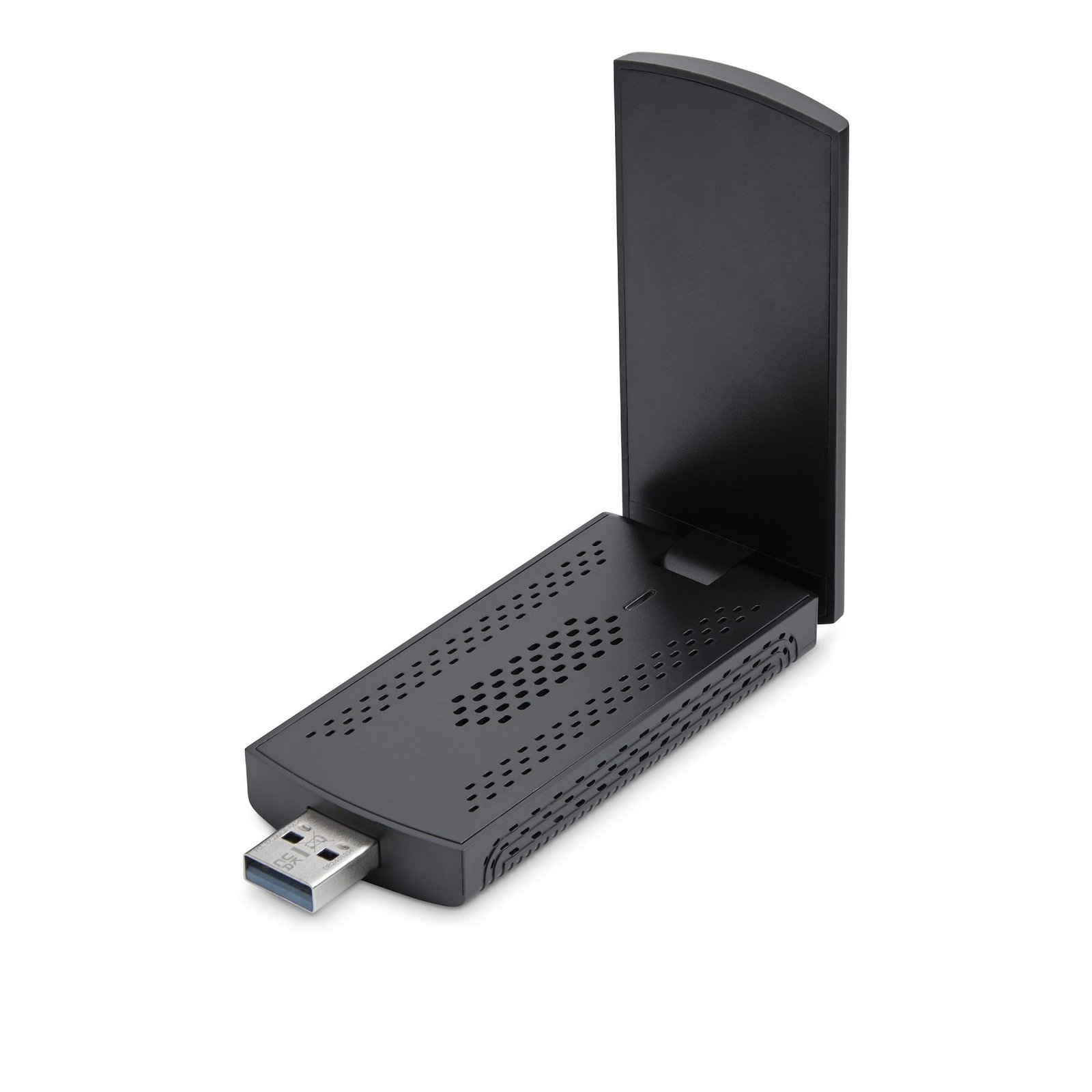

Wi-Fi 6E USB Adapter/Dongle, For Desktop/Laptop PC, Wireless NIC w/Foldable Antenna, WiFi Adapter Supports 802.11 b/g/n/ac/ax, 2.4/5/6 GHz

Wi-Fi 6E USB Adapter/Dongle, For Desktop/Laptop PC, Wireless NIC w/Foldable Antenna, WiFi Adapter Supports 802.11 b/g/n/ac/ax, 2.4/5/6 GHz Network Compatible

$97.36

Add 802.11ax Wi-Fi connectivity to a computer via USB with tri-band support for 2.4/5/6GHz frequencies

SKU: AX54005A-USB-WIFI-6E Category:

Specifications & Compliance

UPC
065030906166
Brand
StarTech.com
Included in Package
1 - USB Wi-Fi Adapter, 1 - Magnetic Stand with Attached USB Extension Cable, 1 - Quick-Start Guide
Shipping (Package) Weight
10.7 oz [302 g]
Weight of Product
1.2 oz [34 g]
Product Length
3.7 in [94 mm]
Product Width
1.5 in [37.0 mm]
Product Height
0.6 in [16.0 mm]
Package Depth
5.6 in [14.3 cm]
Package Width
6.9 in [17.5 cm]
Package Height
1.8 in [45 mm]
Color
Black
Cable Length
3.8 ft [1.2 m]
Warranty
2 Years
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-40°C to 70°C (-40°F to 158°F)
Humidity
5% ~ 95% RH (non-condensing)
Material
Plastic
Maximum Data Transfer Rate
11ax (6G): Up to 2402Mbps(Dynamic)<br> 11ax (5G): Up to 2402Mbps(Dynamic)<br> 11ax (2.4G): Up to 574Mbps(Dynamic)<br> 11ac: Up to 867Mbps(Dynamic)<br> 11n: Up to 300Mbps (Dynamic)<br> 11g: Up to 54Mbps (Dynamic)<br> 11b: Up to 11Mbps (Dynamic)<br>
Industry Standards
IEEE 802.11ax <br> IEEE 802.11ac <br> IEEE 802.11n <br> IEEE 802.11g <br> IEEE 802.11b <br> USB 5Gbps (USB 3.2 Gen 1x1)
Power Source
Bus Powered
Chipset ID
Realtek - RTL8832CU
Special Notes
Note: Windows 10 does not support the 6GHz band </br>, Full 6Ghz performance requires Windows 11 and a Wi-Fi 6E compatible Router
LED Indicators
1 - Solid Green: Power </br> Flashing Green: Activity
Interface
Wireless Ethernet
Bus Type
USB-A
Host Connector 1
USB-A (5Gbps, 4.5W)
Host Connector 1 (Quantity)
1
Host Connector 2 (Quantity)
1
Full Duplex Support
Yes
Promiscuous Mode
Yes
Security Features
WPA3 personal and enterprise including WPA2 transition mode, AES, WPA and WPA2-PSK Data Encryption, WEP Data Encryption, WPS Data Encryption
Frequency
2.4~6Ghz

Questions & Answers

I am having issues with my new network interface card (NIC) and my on-board NIC is still enabled. What do I do in Windows?
Sometimes an on-board network interface card (NIC) conflicts with a new NIC. In these cases it is best to disable the on-board NIC. The best way to disable your on-board NIC is to go into your BIOS and disable it there if possible. To do this, consult your motherboard manual. You can also disable any NIC in Windows. Here is how you do this: First click Start , or, in Windows 10 and 8, hold down the Windows key and press X . Then click Control Panel . Windows 10 Click Network and Internet . Click Network and Sharing Center . On the left, click Change adapter settings . Right-click the NIC that you would like to disable and select Disable . Windows 8 Click Network and Sharing Center . On the left, click Change adapter settings . Right-click the NIC that you would like to disable and select Disable . Windows 7 Click Network and Internet . Click Network and Sharing Center . On the left, click Change adapter settings . Right-click the NIC that you would like to disable and select Disable . Windows Vista Click Network and Sharing Center . On the left, click Manage network connections . Right-click the NIC that you would like to disable and select Disable . Windows XP Click Network Connections . Right-click the NIC that you would like to disable and select Disable .

Why do I have speed or connectivity issues?
If you are experiencing speed or connectivity issues, it is best to set a specific speed at half or full duplex in your settings. You can set your network adapter to perform at a certain speed, but the device that the adapter is connected to (whether it is a router, switch, or computer) must also be able to perform at the same speed. Note : You must log in as the local administrator before you continue. To open Device Manager: Press Windows key + R . Type devmgmt.msc . Click OK . Open the Networking adapters section. Right-click the network adapter that you want to change and select Properties . Click the Advanced tab. Scroll down to Speed & Duplex . By default, it is set to Auto-Negotiate . Select any of the speeds that you see in the list. Click OK and restart your computer.

Can I use my network card for a Preboot Execution Environment (PXE)?
StarTech.com does not support a Preboot Execution Environment (PXE) as this requires third-party software. However, our devices can be used as long as the following conditions are met: The BIOS must support PXE. The BIOS must see the card. The environment must have drivers for the chipset used in the card. If using a USB networking card, the environment must have support for USB devices as well.
