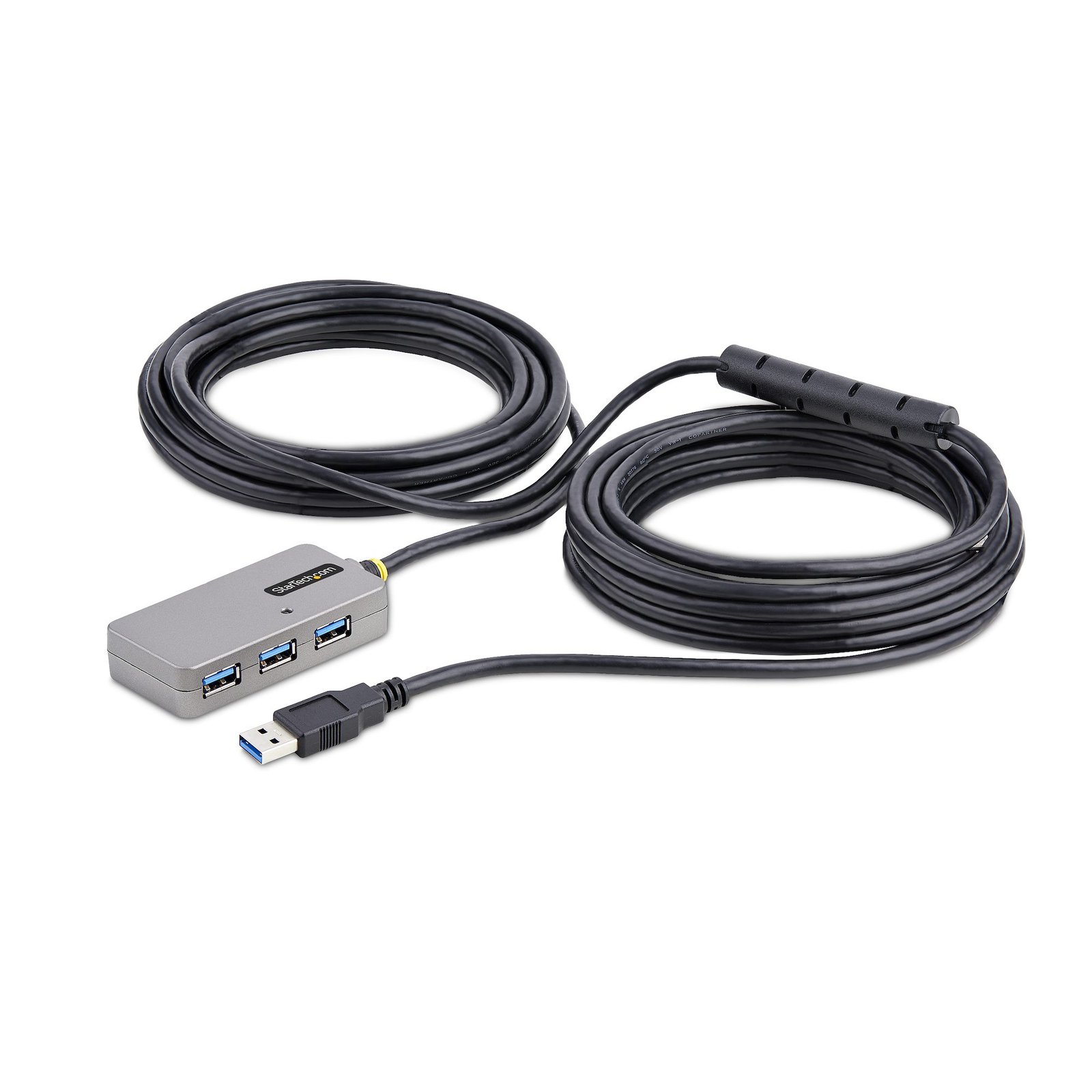

USB Extender Hub, 10m USB 3.0 Extension Cable with 4-Port USB-A Hub, Active/Bus Powered USB Repeater Cable, Optional 20W Power Supply

USB Extender Hub, 10m USB 3.0 Extension Cable with 4-Port USB-A Hub, Active/Bus Powered USB Repeater Cable, Optional 20W Power Supply Included, ESD Protection - TAA

$129.99

USB Extender Hub | USB 3.0 Extension Cable with 4-Port USB Hub | Bus Powered | 32.8ft Long Cable

SKU: U01043-USB-EXTENDER Category:

Specifications & Compliance

UPC
065030897365
Brand
StarTech.com
Included in Package

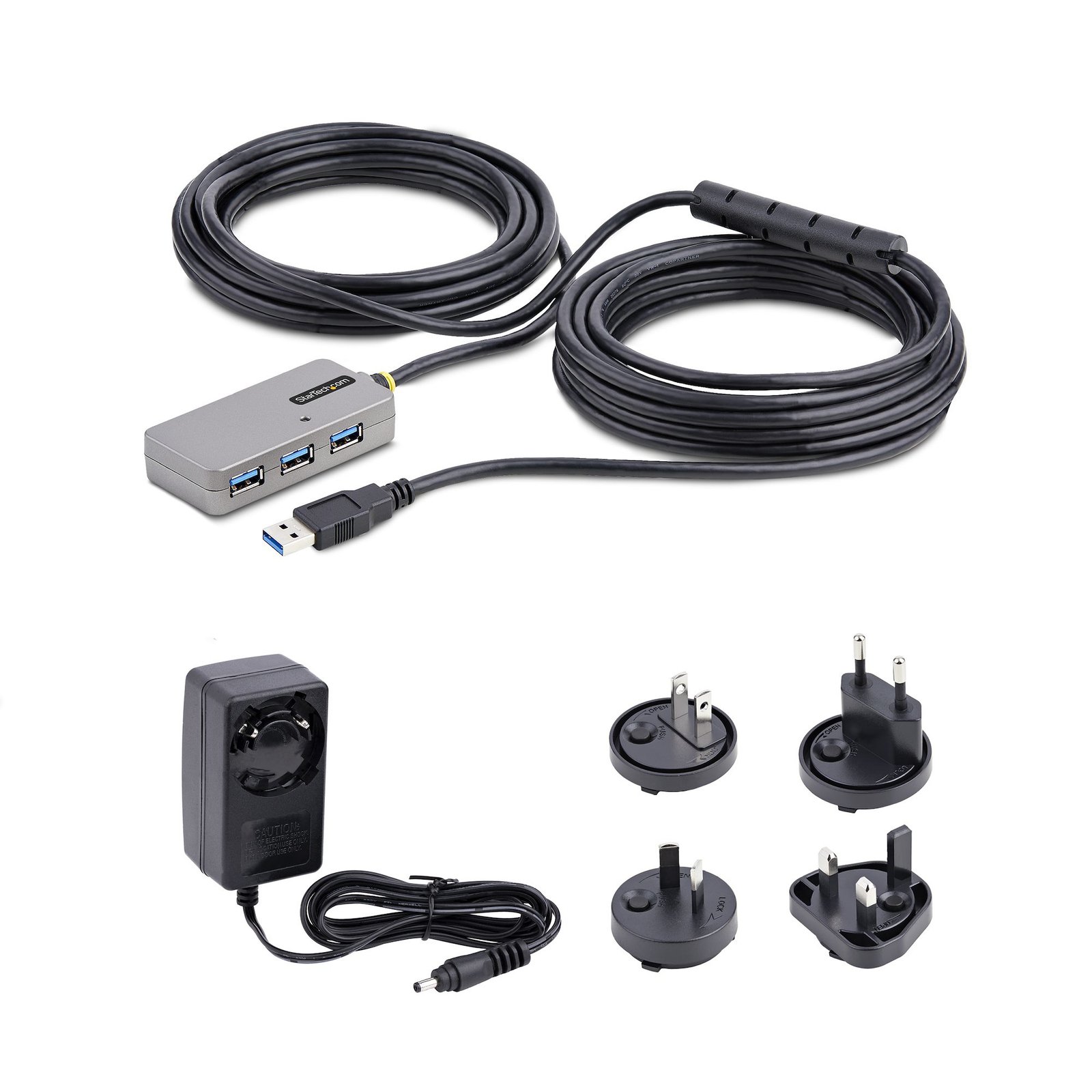

1 - USB Active Cable with USB Hub, 1 - Power Adapter, 1 - Quick-Start Guide
Shipping (Package) Weight
28.4 oz [804 g]
Weight of Product
3.5 oz [100.0 g]
Product Length
33.1 ft [10.1 m]
Product Width
1.6 in [40.0 mm]
Product Height
0.7 in [18.1 mm]
Package Depth
7.9 in [20 cm]
Package Width
9.3 in [23.5 cm]
Package Height
2.6 in [65 mm]
Color
Silver & Black
Cable Length
32.8 ft [10 m]
Warranty
2 Years
Connector 1
USB-A (5Gbps, 4.5W)
Connector 1 (Quantity)
1
Package Quantity
1
Connector 2 (Quantity)
4
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
-40°C to 55°C (-40°F to 131°F)
Humidity
30% - 70%
Material
Plastic
Cable Jacket Material
PVC - Polyvinyl Chloride
Maximum Data Transfer Rate
5 Gbps
Connector Plating
Nickel
Power Source
AC Adapter Included
Chipset ID
VIA Labs - VL817
Special Notes
The maximum recommend cable length for USB 3.0 peripherals is 9.8ft (3m)
Input Voltage
100 - 240 AC
Output Voltage
5 DC
Connector 3
Barrel Power (H-Type, OD 3.4mm / ID 1.3mm)
Connector 3 (Quantity)
1
Power Consumption
20 W
LED Indicators
1 - Solid Green: External Power </br> Off: No External Power
Number of Ports
4
Cable Shield Material
Aluminum-Mylar Foil with Braid
Input Current
0.6 A
Output Current
4
Connector Style
Straight
Plug Type
H
Center Tip Polarity
Positive

Questions & Answers

What DC barrel connector power plug types do StarTech.com products use, and what are their dimensions?
StarTech.com DC barrel connector plug types are defined in the “Plug Type” field of the technical specifications, using a letter code that specifies the connector’s outer diameter (OD) and inner diameter (ID) in millimeters for power adapter compatibility. Explanation: In StarTech.com technical specifications, the “Plug Type” field is a standardized identifier for the exact DC barrel connector size required to power a product. Each plug type is assigned a letter code that corresponds to a specific combination of outer diameter (OD) and inner diameter (ID), measured in millimeters. Common DC barrel plug type dimensions Plug Type OD ID A 2.35 mm 0.7 mm B 4.0 mm 1.7 mm C 4.75 mm 1.7 mm H 3.4 mm 1.3 mm L 5.0 mm 2.5 mm M 5.5 mm 2.1 mm N 5.5 mm 2.5 mm The DC barrel connector plug type must match both the outer diameter and inner diameter exactly. A mismatch between the StarTech.com product requirement and the power adapter connector can prevent proper fit or stable power delivery, which may result in device startup failure or intermittent operation. The plug type defines only the physical connector size. The plug type does not define electrical power requirements such as voltage, current, or polarity. The power adapter used with a StarTech.com product must match the product’s specified electrical requirements. Using an incompatible power adapter can cause device malfunction or permanent damage. This standardized DC barrel connector plug type system enables IT professionals and procurement teams to verify connector dimensions, ensure power adapter compatibility, standardize hardware deployments, and identify the correct replacement power supply for StarTech.com products.
