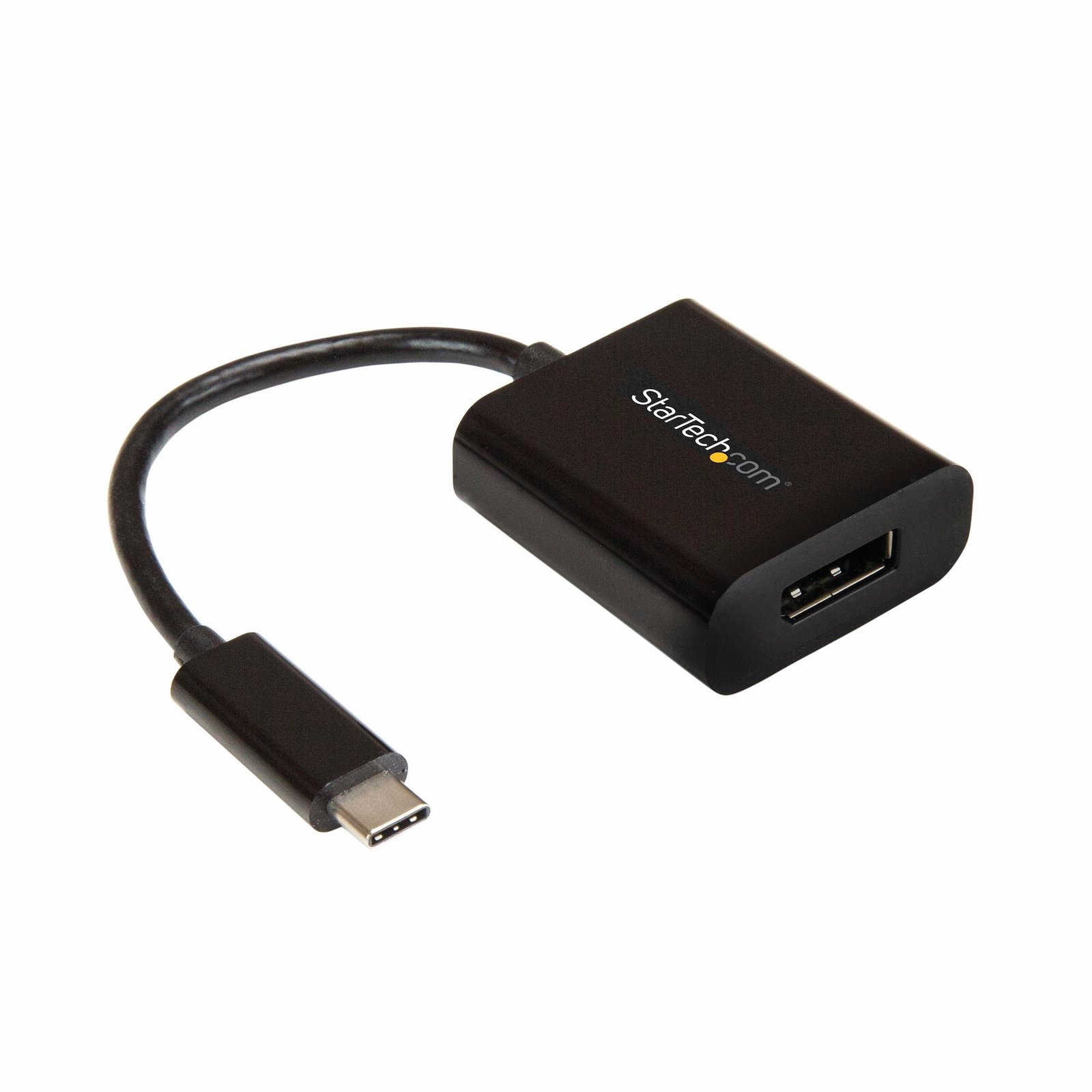

USB C to DisplayPort Adapter - 4K 60Hz/8K 30Hz - USB Type-C to DP 1.4 HBR2 Adapter Dongle - Compact USB-C (DP Alt Mode) Monitor Video Converter - Thunderbolt 3 Compatible

Specifications & Compliance

Manufacturer #

USBC-DISPLAYPORT

UPC

065030893015

Brand

StarTech.com

Included in Package

1 - USB-C to DisplayPort adapter

Shipping (Package) Weight

0.9 oz [26 g]

Weight of Product

0.6 oz [17.0 g]

Product Length

7.1 in [18.0 cm]

Product Width

1.5 in [37.0 mm]

Product Height

0.6 in [14.0 mm]

Package Depth

4.9 in [12.5 cm]

Package Width

8.9 in [22.5 cm]

Package Height

0.6 in [16 mm]

Color

Black

Warranty

3 Years

Connector 1

USB-C DP++ (DP Alt-Mode)

Connector 1 (Quantity)

1

Package Quantity

1

Connector 2

DisplayPort

Connector 2 (Quantity)

1

Operating Temperature

0°C to 45°C (32°F to 113°F)

Storage Temperature

-10°C to 70°C (14°F to 158°F)

Humidity

10%-85% RH

Chipset ID

PERICOM - PI3DPX1203<br>NXP - PTN5100

Power Delivery

No PD Pass-Through

Number of Ports

1

System and Cable Requirements

Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter.

Number of Displays

1

AV Input

USB-C

AV Output

DisplayPort - 1.4

Wide Screen Supported

Yes

Supported Resolutions

DisplayPort: 7680x4320 (8K) / 30Hz

Audio Specifications

DisplayPort - 7.1 Channel Audio

HDR Support

No

Maximum Cable Distance To Display

6.6 ft [2 m]
