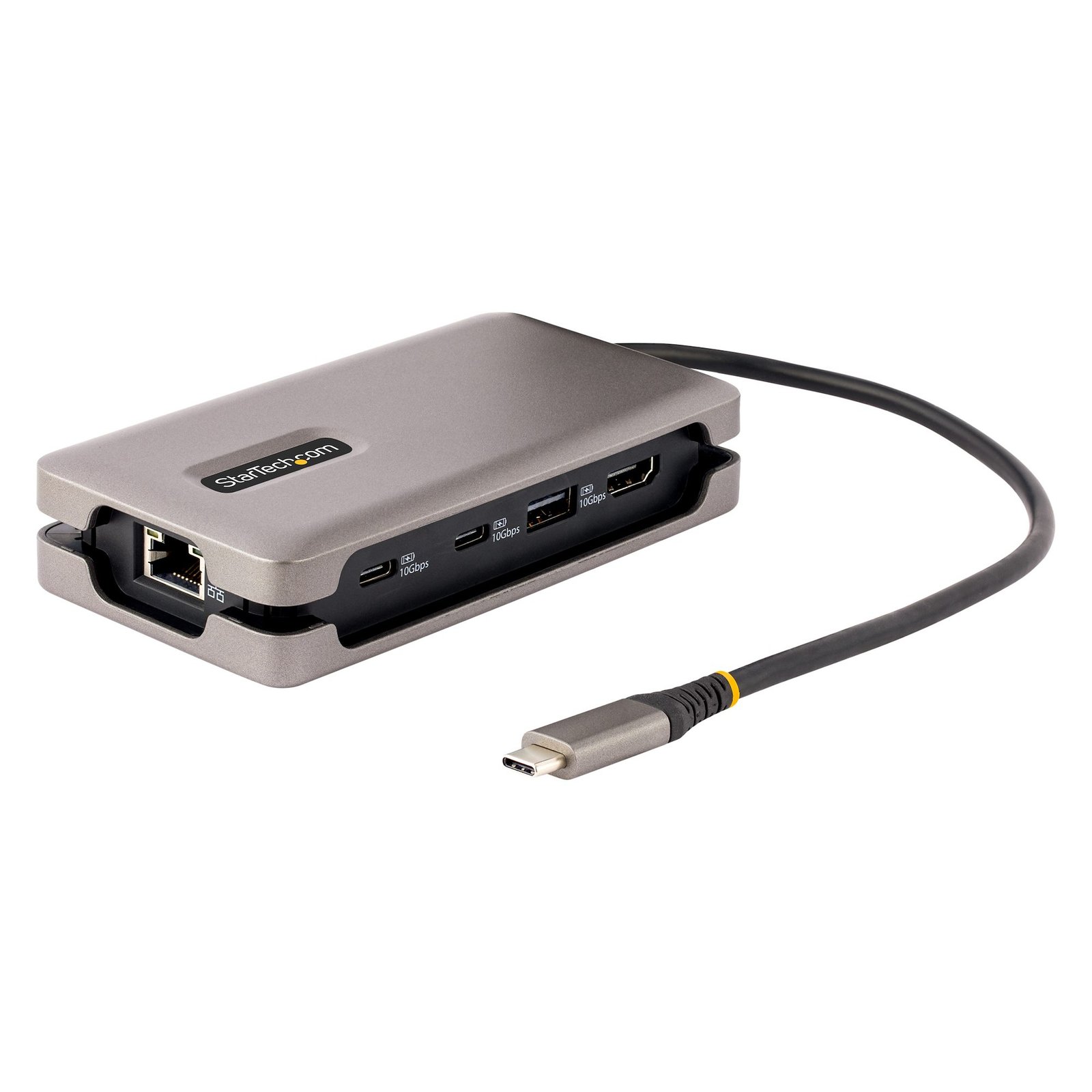

USB-C Multiport Adapter, 4K 60Hz HDMI 2.0b, HDR, USB 3.2 Gen 2 10Gbps Hub (2xUSB-C, 1xUSB-A), 100W PD Pass-Through, Mini Travel Dock

USB-C Multiport Adapter, 4K 60Hz HDMI 2.0b, HDR, USB 3.2 Gen 2 10Gbps Hub (2xUSB-C, 1xUSB-A), 100W PD Pass-Through, Mini Travel Dock, 12"/30cm Cable, Laptop Docking Station

$30.99

4K 60Hz HDMI | 100W PD Pass-Through | 12" (30cm) Cable | 3-Port USB Hub (10Gbps)

SKU: DKT31CH2CPD3 Category:

Specifications & Compliance

UPC
065030891981
Brand
StarTech.com
Included in Package
1 - USB-C Multiport Adapter
Shipping (Package) Weight
5.9 oz [166 g]
Weight of Product
3.5 oz [98.0 g]
Product Length
4.9 in [12.5 cm]
Product Width
2.6 in [65.0 mm]
Product Height
1.0 in [25.0 mm]
Package Depth
5.6 in [14.3 cm]
Package Width
6.8 in [17.2 cm]
Package Height
1.2 in [30 mm]
Color
Space Gray
Cable Length
11.8 in [30 cm]
Warranty
3 Years
Connector 1
USB-C (10Gbps, 4.5W)
Connector 1 (Quantity)
2
Package Quantity
1
Connector 2
HDMI
Connector 2 (Quantity)
1
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Humidity
0% to 85% (non-condensing)
Material
Plastic
Maximum Data Transfer Rate
10Gbps
Power Source
Bus Powered and Host USB-C Power Adapter
Chipset ID
Realtek - RTD2172L, Realtek - RTL8153B, VIA - VL822, VIA - VL103
Power Delivery
100W
Connector 3
RJ-45
Connector 3 (Quantity)
1
Power Consumption
15W
LED Indicators
1 - Connection state/activity LEDs under GbE port
Interface
USB 3.2 Gen 2
Bus Type
USB-C
Type and Rate
USB 10Gbps
System and Cable Requirements
A host device with an available USB-C port (to ensure full adapter functionality, the host device's USB-C port must support USB Power Delivery and DP Alt-mode).
Host Connector 1 (Quantity)
1
Compatible Networks
10/100/1000 Mbps
Connector 4
USB-A (10Gbps, 7.5W)
Connector 4 (Quantity)
1
Number of Displays
1
UASP Support
Yes
Connector 5
USB-C (100W PD Only)
Connector 5 (Quantity)
1
Full Duplex Support
Yes
Wake-On-LAN (WOL)
Yes
Displays Supported
1
4K Support
Yes
PXE
Yes

Questions & Answers

How do I configure additional displays in Windows?
Windows 11 To configure displays in Windows 11, complete the following: Press the Windows + I (capital letter i) keys together to open Settings Click 'System' > 'Display' Click 'Duplicate these displays' and choose 'Extend these displays' (if needed). Click ‘Identify’ to determine the number assigned to each display. Drag and drop each display accordingly to the physical layout on your desk. Click the Apply button. Windows 10 To configure displays on Windows 10, complete the following: Press the Windows + I (capital letter i) keys together. Click 'System' > 'Display' Under the ‘Multiple displays’ section, select ‘Extend Desktop To This Display.’ Click ‘Identify’ to determine the number assigned to each display. Drag and drop each display accordingly to the physical layout on your desk. Click the Apply button.

How do I arrange extended displays on macOS?
To arrange extended displays on macOS, complete the following. Navigate to the Apple Menu > System Preferences, click Displays , then click Arrangement . Make sure that the ‘ Mirror Displays ’ checkbox is not selected. Click on each display to determine what number each display is assigned to. Drag and drop each display accordingly to the physical layout on your desk.

Why are my USB peripherals disconnecting on high power draw?
This product features Overcurrent Protection on the downstream USB ports and the device may cut power to peripherals connected to the ports if they exceed the maximum allotted current. The USB ports support the respective rated current in Table A below, however the overall device power output is limited by the host or (if included) power connection. Table A. USB port voltage and current ratings. Specification Connector Output Voltage (VDC) Rated Current (mA) USB 1.1 USB-A 4.40 - 5.25 500 USB 2.0 USB-A 4.40 - 5.25 500 USB 3.2 (1 lane) USB-A; USB-C* 4.75 - 5.50 900 USB 3.2 (2 lanes) USB-A; USB-C* 4.75 - 5.50 1500 BC 1.2 USB-A; USB-C* 4.75 - 5.50 1500 USB-C (1.5A) USB-C* 4.75 - 5.50 1500 USB-C (3A) USB-C* 4.75 - 5.50 3000 *USB-C spec supersedes the USB 3.2 spec for current limitations. If Overcurrent Protection is activated but then the current draw on the downstream device drops back below an acceptable level, the USB device will reconnect. This may result in a continuous connection/disconnection cycle. To stop the cycle, disconnect the device from the product for 15-20 seconds and then reconnect it to a different USB port. If the connection/disconnection cycle occurs again, even when device is connected to a different or higher powered USB port on the product, then the USB device is not compatible with this product.
