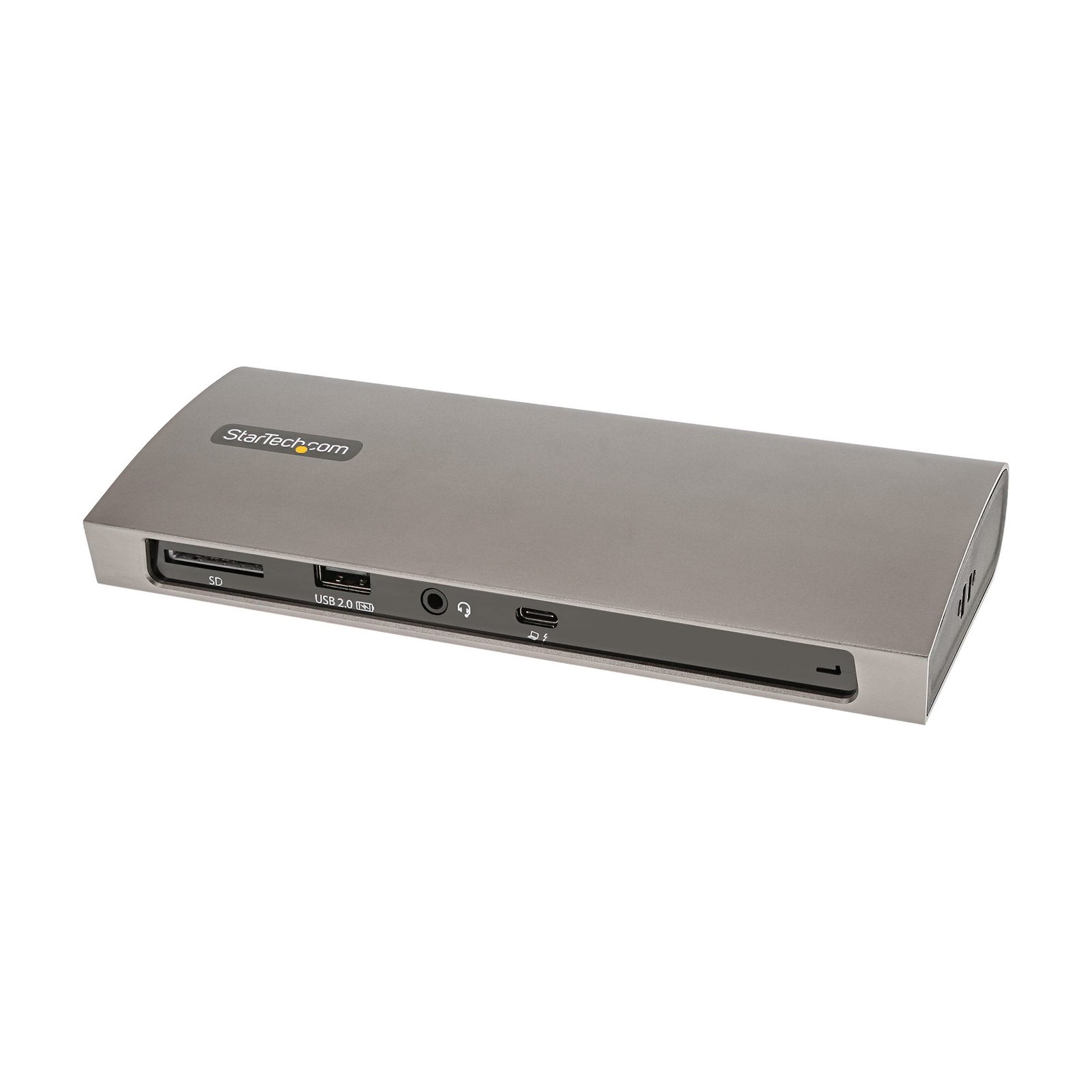

USB-C Docking Station for MacBook Pro / Air M1 M2 M3 M4 M5 & Windows, Universal Dual 4K 60Hz / Single 8K Thunderbolt Dock, 96W Laptop Charging

Specifications & Compliance

UPC

065030892551

Brand

StarTech.com

Included in Package

1 - Thunderbolt 4 Docking Station, 1 - Thunderbolt 4 Cable, 1 - Universal Power Adapter (NA/JP), 1 - Quick-Start Guide

Shipping (Package) Weight

2.7 lb [1.2 kg]

Weight of Product

14.9 oz [423.0 g]

Product Length

3.3 in [84.0 mm]

Product Width

3.7 in [95.0 mm]

Product Height

1.3 in [32.0 mm]

Package Depth

9.2 in [23.3 cm]

Package Width

5.8 in [14.7 cm]

Package Height

3.6 in [91 mm]

Color

Black & Gray

Cable Length

31.5 in [80 cm]

Warranty

3 Years

Connector 1

SD Card Slot

Connector 1 (Quantity)

1

Package Quantity

1

Connector 2

USB-A (480Mbps, 7.5W)

Connector 2 (Quantity)

1

Operating Temperature

0 to 50°C

Storage Temperature

-20 to 70°C

Humidity

0% to 95% (non-condensing) at 25°C

Material

Aluminum and Plastic

Power Source

AC Adapter Included

Chipset ID

Intel - JHL8440, Cypress - CYUSB4357, Parade - FL5801, Cypress - CYPD5235, Realtek - RTL8153B, Realtek - ALC4042, Genesys Logic - GL3226

Special Notes

The docking station is compatible with Thunderbolt 4/USB4 Windows laptops, Thunderbolt 4 M1/M2/M3 Max/Pro MacBooks, and Thunderbolt 3 M1/Intel MacBooks (macOS 11 Big Sur or higher)

Power Delivery

96W

Input Voltage

110V-240V AC

Output Voltage

20V DC

Connector 3

3.5mm (4 Conductors, TRRS)

Connector 3 (Quantity)

1

Power Consumption

135

LED Indicators

1 - White On: Power, 1 - Green On: Connected to Host

Bus Type

Thunderbolt 4

Input Current

2.5 A

Output Current

6.75

Maximum Digital Resolutions

<b>Thunderbolt 4 Windows Systems:</b> Dual 4K 60Hz or Single 8K 30Hz / 6K 60Hz / 5K 60Hz / 4K 60Hz<br> <b>Thunderbolt 4 M1 Pro & M1 Max Mac Systems:</b> Dual 4K 60Hz or Single 5K 60Hz / 4K 60Hz<br> <b>Thunderbolt 3 Intel Mac Systems:</b> Dual 4K 60Hz or Single 6K 60Hz / 5K 60Hz / 4K 60Hz<br> <b>Thunderbolt 3 M1 Mac Systems:</b> Single 4K 60Hz or 6K 60Hz /5K 60Hz / 4K 60Hz<br> <b>Thunderbolt 4 & Compatible USB4 Systems:</b> Dual 4K 60Hz or Single 8K 30Hz / 6K 60Hz / 5K 60Hz / 4K 60Hz<br> <b>USB4 Systems:</b> Single 8K 30Hz / 6K 60Hz / 5K 60Hz / 4K 60Hz<br><br> <i>USB4 Windows laptops may support dual-displays over Thunderbolt if supported by the USB4 Windows Laptop</i>

Host Connector 1

USB-C (Thunderbolt 40Gbps)

Host Connector 1 (Quantity)

1

Audio

Yes

Plug Type

7.4mm OD, 5.5mm ID, 0.5mm CPD

Compatible Networks

10/100/1000 Mbps

Center Tip Polarity

Positive

Connector 4 (Quantity)

3

Number of Displays

2

Connector 5

RJ-45

Connector 5 (Quantity)

1

Auto MDIX

Yes

Full Duplex Support

Yes

Fast-Charge Port(s)

Yes

Connector 6

USB-A (10Gbps, 4.5W)

Connector 6 (Quantity)

3

Wake-On-LAN (WOL)

Yes

Displays Supported

2

PXE

Yes

Memory Media Type

SD/MMC (Secure Digital/Multimedia Card), SDHC (Secure Digital High Capacity), SDXC (Secure Digital eXtended Capacity), microSD (Micro Secure Digital) (adapter required), microSDHC (Micro Secure Digital High Capacity) (adapter required), microSDXC (Micro Secure Digital eXtended Capacity) (adapter required)

Compatible Lock Slot

Kensington Mini Slot / Standard Slot, Kensington Standard Slot (K-Slot)

Number of Battery Charge 1.2 Ports

1

Device Power Consumption

800
