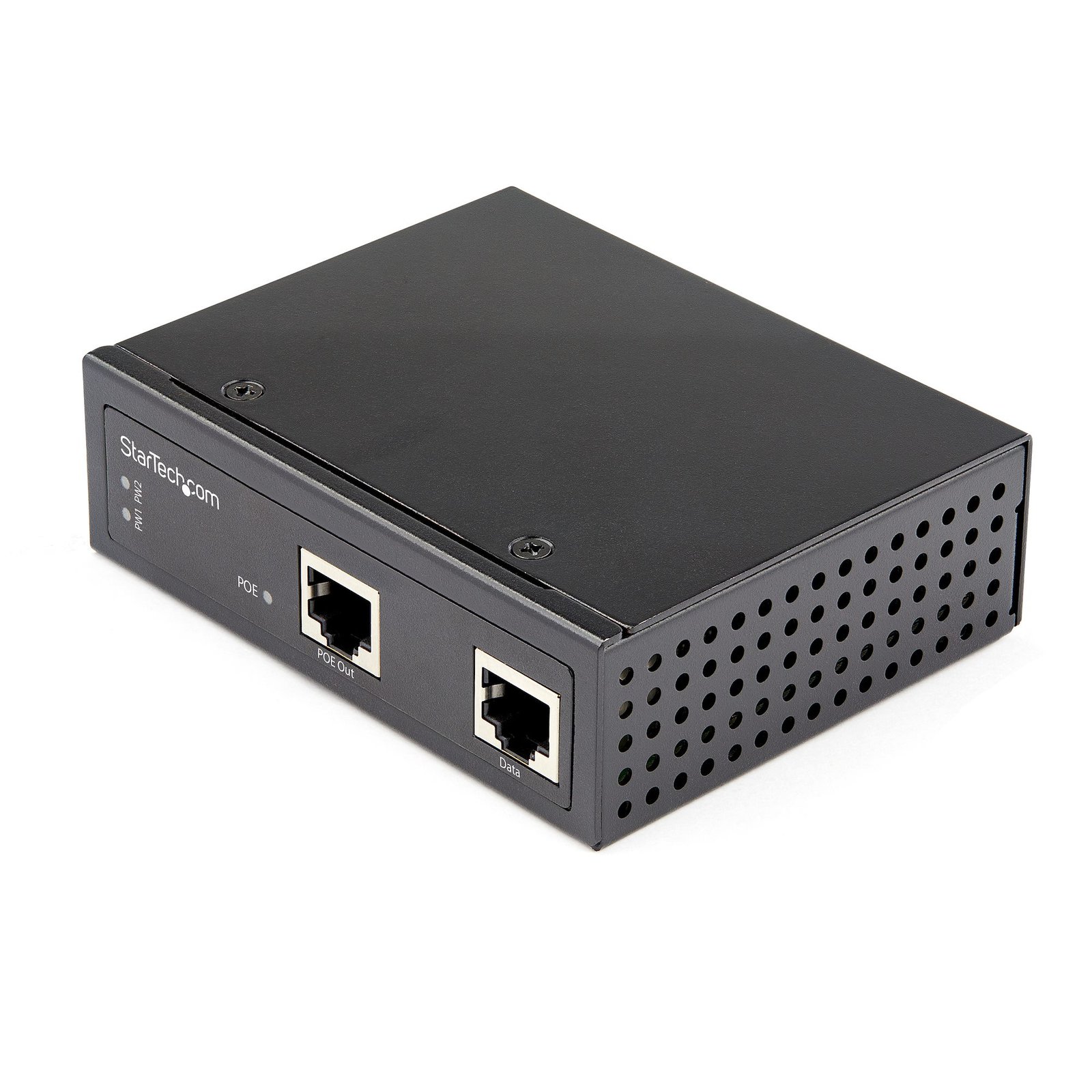

Industrial Gigabit PoE Injector - High Speed/High Power 90W - 802.3bt PoE++ 52V-56VDC DIN Rail UPoE/Ultra Power Over Ethernet Injector

Industrial Gigabit PoE Injector - High Speed/High Power 90W - 802.3bt PoE++ 52V-56VDC DIN Rail UPoE/Ultra Power Over Ethernet Injector Adapter -40C to +75C Rugged - TAA

$234.71

Rugged PoE Injector | 90 Watts Max | IP-30 Aluminum Housing | 52V-56V DC

SKU: POEINJ1G90W Category:

Specifications & Compliance

UPC
065030889568
Brand
StarTech.com
Included in Package
1 - Industrial-Grade PoE Injector, 1 - Terminal Block, 1 - Mounting Hardware Kit, 1 - Quick-Start Guide
Shipping (Package) Weight
13.3 oz [376 g]
Weight of Product
5.2 oz [148.0 g]
Product Length
4.1 in [10.4 cm]
Product Width
3.2 in [81.5 mm]
Product Height
1.3 in [32.0 mm]
Package Depth
6.7 in [16.9 cm]
Package Width
8.4 in [21.4 cm]
Package Height
2.6 in [67 mm]
Color
Black
Cable Length
328.1 ft [100 m]
Warranty
2 Years
Connector 1
RJ-45
Connector 1 (Quantity)
1
Package Quantity
1
Connector 2
RJ-45
Connector 2 (Quantity)
1
Operating Temperature
-40°C to 75°C
Storage Temperature
-40°C to 85°C
Humidity
5 to 95% (non-condensing)
Material
Aluminum
Industry Standards
IEEE 802.3 10BASE-T</br> IEEE 802.3u 100BASE-TX</br> IEEE 802.3ab 1000BASE-T</br> IEEE 802.3at PoE Plus</br> IEEE 802.3af Power over Ethernet</br> IEEE 802.3bt
Chipset ID
Analog - LTC9101, Analog - LTC9103
Connector 3
Terminal Block (4 Wire)
Connector 3 (Quantity)
1
MTBF
540,891 hours
LED Indicators
2 - Power, 1 - PoE
Number of Ports
2
Plug Type
N
Compatible Networks
10/100/1000 Mbps
General Specifications
ESD Standard: IEC 61000-4-2: Contact: 6KV; Air: 8KV</br> EFT Standard: IEC 61000-4-4: Power: 2KV; Signal: 2KV</br> Surge Standard: IEC 61000-4-5: Power: 2KV; Signal: 2KV</br> Vibration Standard: EN 60068-2-6</br> Shock Standard: EN 60068-2-27</br> Free-Fall Standard: EN 60068-2-32</br> Housing Standard: IP-30</br> Safety Standard: EN60950-1
Auto MDIX
Yes
Full Duplex Support
Yes
Jumbo Frame Support
9K max.
Supported Protocols
CSMA/CD</br> IEEE 802.3at</br> IEEE 802.3af</br> IEEE 802.3bt</br>
PoE
Yes
Total Available Power Output
90W
Surge Protection
2kV</br>
Patents and Licenses
United States Patent No. 5,406,260 (expired) </br> United States Patent No. 6,650,622</br> United States Patent No. 7,457,250</br> United States Patent No. 8,155,012</br> United States Patent No. 8,902,760</br> United States Patent No. 8,942,107</br> United States Patent No. 9,019,838</br> United States Patent No. 9,049,019</br> United States Patent Application No. 14/695,456</br> United States Patent Application No. 14/726,940</br>

Questions & Answers

What DC barrel connector power plug types do StarTech.com products use, and what are their dimensions?
StarTech.com DC barrel connector plug types are defined in the “Plug Type” field of the technical specifications, using a letter code that specifies the connector’s outer diameter (OD) and inner diameter (ID) in millimeters for power adapter compatibility. Explanation: In StarTech.com technical specifications, the “Plug Type” field is a standardized identifier for the exact DC barrel connector size required to power a product. Each plug type is assigned a letter code that corresponds to a specific combination of outer diameter (OD) and inner diameter (ID), measured in millimeters. Common DC barrel plug type dimensions Plug Type OD ID A 2.35 mm 0.7 mm B 4.0 mm 1.7 mm C 4.75 mm 1.7 mm H 3.4 mm 1.3 mm L 5.0 mm 2.5 mm M 5.5 mm 2.1 mm N 5.5 mm 2.5 mm The DC barrel connector plug type must match both the outer diameter and inner diameter exactly. A mismatch between the StarTech.com product requirement and the power adapter connector can prevent proper fit or stable power delivery, which may result in device startup failure or intermittent operation. The plug type defines only the physical connector size. The plug type does not define electrical power requirements such as voltage, current, or polarity. The power adapter used with a StarTech.com product must match the product’s specified electrical requirements. Using an incompatible power adapter can cause device malfunction or permanent damage. This standardized DC barrel connector plug type system enables IT professionals and procurement teams to verify connector dimensions, ensure power adapter compatibility, standardize hardware deployments, and identify the correct replacement power supply for StarTech.com products.
