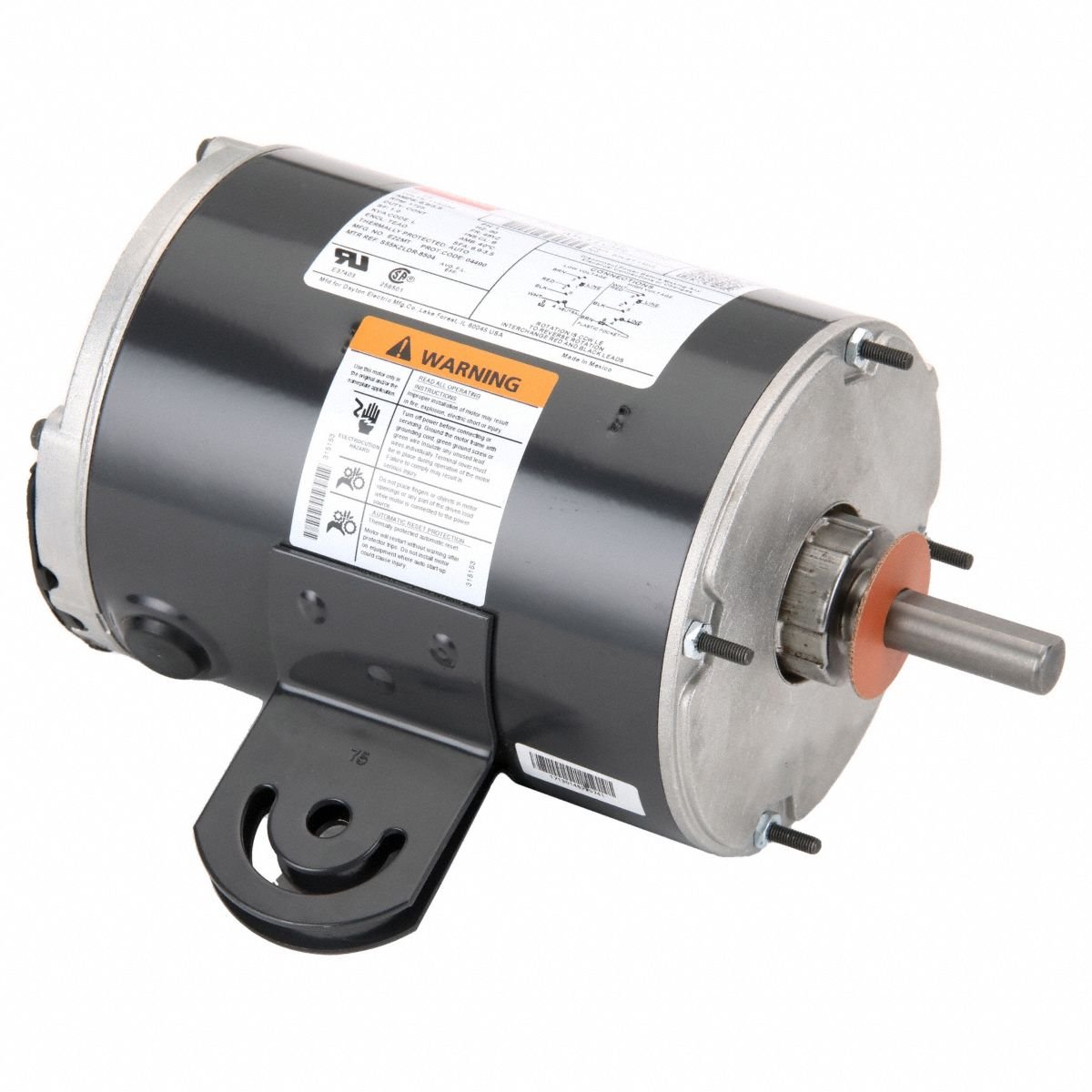

DAYTON Pedestal Fan Motor: Single Phase, Yoke, Split-Phase, 1/2 hp Horsepower, 1,725 RPM RPM, Auto

Specifications & Compliance

Manufacturer #

6K411

Brand

DAYTON

Nameplate Horsepower @ 60 Hz

1/2 hp

Nameplate RPM @ 60 Hz

1,725 RPM

Frame Size

48YZ

Nameplate Voltage @ 60 Hz

115/230V AC

Full Load Amps @ 60 Hz

6.9/3.5 A

Enclosure Type

TEAO

Motor Thermal Protection

Auto

Nameplate Service Factor @ 60 Hz

1

Shaft Diameter

5/8 in

Shaft Length

2 in

Output Shaft (Dia x L)

5/8 in x 2 in

Phase

Single

Mounting Type

Yoke

Body Diameter

5.6 in

Motor Shaft Rotation

CW/CCW

Frequency

60 Hz
