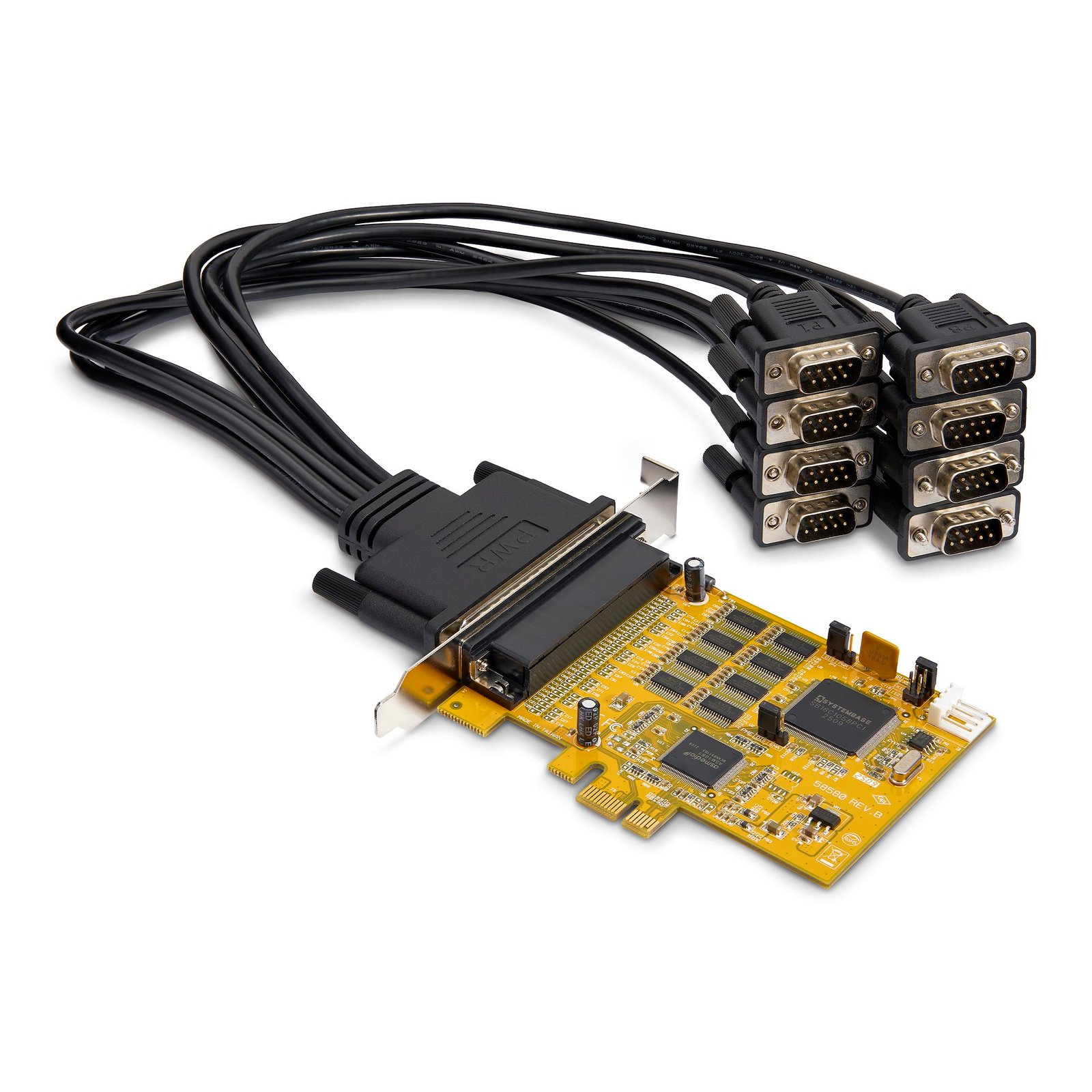

8-Port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Card, 16C1050 UART, Multiport Serial DB9 Controller/Expansion Card, 15kV ESD Protection, Windows Only - TAA

Specifications & Compliance

UPC

065030888295

Brand

StarTech.com

Included in Package

1 - PCIe Serial Card, 1 - 18 in [48 cm] DB62 to 8 Port DB9 Breakout Cable, 1 - Full Profile Bracket (Installed), 1 - Quick Start Guide, 8 - Optional DB9 Connector Hex Nut Pairs

Shipping (Package) Weight

23.9 oz [676 g]

Weight of Product

2.6 oz [74.0 g]

Product Length

4.1 in [10.5 cm]

Product Width

0.6 in [16.0 mm]

Product Height

4.7 in [12.0 cm]

Package Depth

7.6 in [19.2 cm]

Package Width

11.6 in [29.4 cm]

Package Height

2.8 in [70 mm]

Color

Yellow

Cable Length

18.9 in [48 cm]

Warranty

Lifetime

Connector 1

PCI Express x1

Connector 1 (Quantity)

1

Package Quantity

1

Connector 2

DB-9 Serial

Connector 2 (Quantity)

8

Operating Temperature

0°C to 55°C (32°F to 131°F)

Storage Temperature

-40°C to 75°C (-40°F to 167°F)

Humidity

5~95% RH

Material

Steel

Industry Standards

16C1050 UART

Chipset ID

ASMedia - ASM1083, System Base - SB16C1058PCI

Input Voltage

12V DC

Output Voltage

12V DC

MTBF

160,013 hours

Number of Ports

8

Interface

Serial

Bus Type

PCI Express

General Specifications

Power on Pin 9: 12V DC, 5V DC or None

Card Type

Standard Profile

Port Style

Dongle (Included)

Serial Protocol

RS-232

Max Baud Rate

921.6 Kbps

FIFO

TX: 1-255 Byte <br>RX: 1-255 Byte<br><i>* Depending on mode and configurations</i>

Data Bits

5, 6, 7, 8

Flow Control

Software (XON/XOFF), Hardware (RTS/CTS), and Xoff Re-Transmit function

Parity

None, Even, or Odd

Stop Bits

1, 1.5, 2

ESD Protection

+/-15kV (Air), +/-8kV (Contact)
