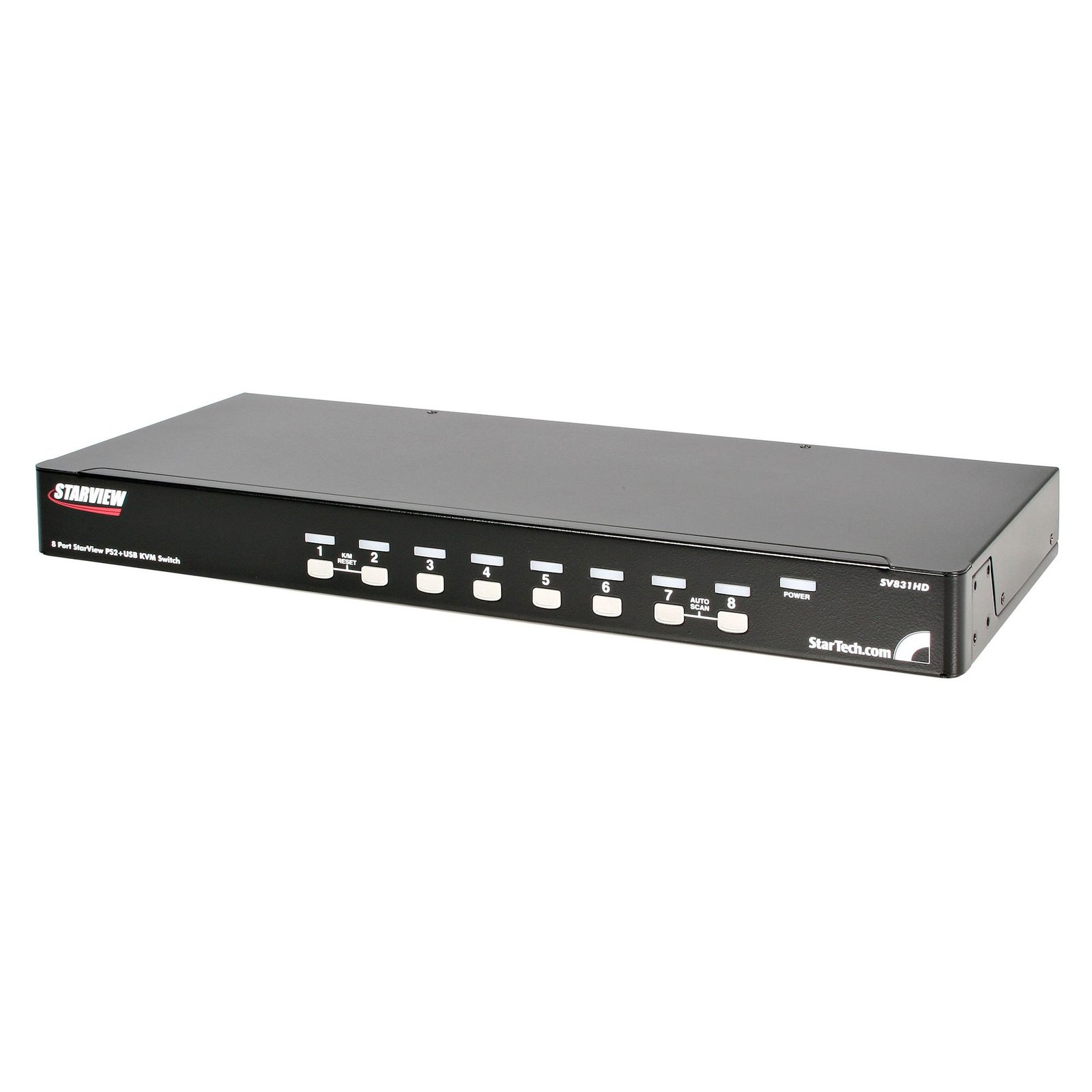

8 Port 1U Rackmount USB PS2 KVM Switch with OSD
$325.99
Control up to eight USB or PS/2-connected computers from a single keyboard, mouse and monitor
Specifications & Compliance
- UPC
- 065030802000
- Brand
- StarTech.com
- Included in Package
- 1 - 8 Port KVM Switch, 2 - Ear Mount Brackets, 1 - Bag of Screws, 1 - Pack Rubber Feet, 1 - Power Adapter, 1 - Instruction Manual
- Shipping (Package) Weight
- 8.1 lb [3.7 kg]
- Weight of Product
- 4.9 lb [2.2 kg]
- Product Length
- 17.3 in [44 cm]
- Product Width
- 17.2 in [43.6 cm]
- Product Height
- 1.7 in [44 mm]
- Package Depth
- 3.5 in [90 mm]
- Package Width
- 23.4 in [59.5 cm]
- Package Height
- 10.5 in [26.6 cm]
- Color
- Black
- Warranty
- 3 Years
- Connector 1
- VGA
- Connector 1 (Quantity)
- 1
- Connector 2
- PS/2
- Connector 2 (Quantity)
- 2
- Material
- Steel
- Power Source
- AC Adapter Included
- Input Voltage
- 110V-240V AC
- Output Voltage
- 9V DC
- Power Consumption
- 0.6W
- LED Indicators
- 8 - Active PC indicators (Green), 8 - Selected PC indicators (Red)
- Input Current
- 0.2A
- Output Current
- 0.6
- Host Connector 1
- VGA
- Host Connector 1 (Quantity)
- 8
- Audio
- No
- Plug Type
- M
- Center Tip Polarity
- Positive
- Maximum Cable Length
- 100.0 ft [30.5 m]
- Maximum Analog Resolutions
- 1920 x 1440
- Cascadable
- Yes
- Rack-Mountable
- Yes
- U Height
- 1U
- Number of KVM Ports
- 8
- IP Control
- No
- Supported Platforms
- USB and PS/2
- PC Video Type
- VGA
- Number of Monitors Supported
- 1
- Cables Included
- No
- Port Selection Support
- Push Button, Hotkeys, and OSD (On Screen Display)
- Hot-Key Selection
- Yes
- Maximum Number of Users
- 1
- Product Depth
- 7.1 in [18 cm]
- Auto Scan
- 3, 8, 15 & 30 seconds
Questions & Answers
My Monitors are flickering when connected through the KVM Switch. What do I do?
Monitors may begin flickering when they receive a signal of insufficient quality. There are a few potential fixes available that will help to improve the signal quality in order to eliminate flickering: Replace Video Cables with high-quality Video Cables (e.g. upgrade DisplayPort 1.2 Cables to DisplayPort 1.4 Cables ). Use shorter Video Cables to reduce signal attenuation. When possible, remove Video Adapters to use native Video Connection Types (e.g. go from VGA to VGA , or DisplayPort to DisplayPort ) For DisplayPort Monitors , try changing the DisplayPort Version on the Monitor . For information on how to change your Monitor Settings refer to the Manual from the Monitor Manufacturer . Update the Drivers for the Computer’s GPU to the latest available from the Monitor Manufacturer .
What DC barrel connector power plug types do StarTech.com products use, and what are their dimensions?
StarTech.com DC barrel connector plug types are defined in the “Plug Type” field of the technical specifications, using a letter code that specifies the connector’s outer diameter (OD) and inner diameter (ID) in millimeters for power adapter compatibility. Explanation: In StarTech.com technical specifications, the “Plug Type” field is a standardized identifier for the exact DC barrel connector size required to power a product. Each plug type is assigned a letter code that corresponds to a specific combination of outer diameter (OD) and inner diameter (ID), measured in millimeters. Common DC barrel plug type dimensions Plug Type OD ID A 2.35 mm 0.7 mm B 4.0 mm 1.7 mm C 4.75 mm 1.7 mm H 3.4 mm 1.3 mm L 5.0 mm 2.5 mm M 5.5 mm 2.1 mm N 5.5 mm 2.5 mm The DC barrel connector plug type must match both the outer diameter and inner diameter exactly. A mismatch between the StarTech.com product requirement and the power adapter connector can prevent proper fit or stable power delivery, which may result in device startup failure or intermittent operation. The plug type defines only the physical connector size. The plug type does not define electrical power requirements such as voltage, current, or polarity. The power adapter used with a StarTech.com product must match the product’s specified electrical requirements. Using an incompatible power adapter can cause device malfunction or permanent damage. This standardized DC barrel connector plug type system enables IT professionals and procurement teams to verify connector dimensions, ensure power adapter compatibility, standardize hardware deployments, and identify the correct replacement power supply for StarTech.com products.
