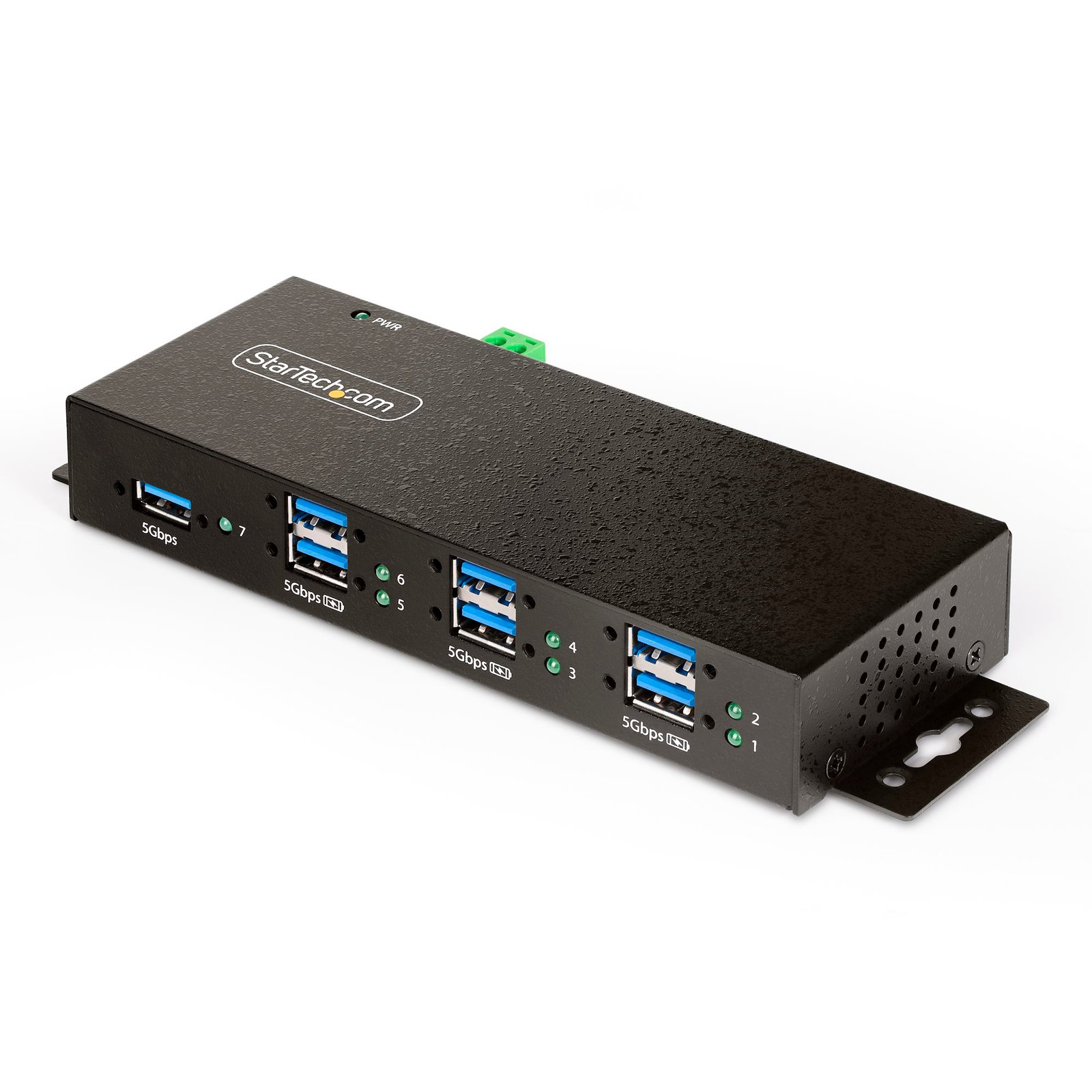

7-Port Managed USB Hub with 7x USB-A, Heavy Duty with Metal Industrial Housing, ESD & Surge Protection, Wall/Desk/Din-Rail Mountable, USB

7-Port Managed USB Hub with 7x USB-A, Heavy Duty with Metal Industrial Housing, ESD & Surge Protection, Wall/Desk/Din-Rail Mountable, USB 3.0/3.1/3.2 Gen 1 5Gbps - TAA

$211.99

Connect and manage up to seven USB Type-A devices, using this USB hub - designed for industrial/commercial environments

SKU: 5G7AINDRM-USB-A-HUB Category:

Specifications & Compliance

UPC
065030898195
Brand
StarTech.com
Included in Package
1 - USB Hub, 1 - 6 ft [1.8 m] USB-A to USB-B Cable, 1 - Terminal Block Connector (Attached), 2 - DIN Rail Mounting Bracket (with Mounting Screws), 1 - Quick-Start Guide
Shipping (Package) Weight
17.9 oz [508 g]
Weight of Product
10.8 oz [305.0 g]
Product Length
7.1 in [18 cm]
Product Width
2.4 in [60 mm]
Product Height
1.0 in [26.3 mm]
Package Depth
5.8 in [14.8 cm]
Package Width
8.6 in [21.8 cm]
Package Height
1.9 in [49.5 mm]
Color
Black
Warranty
2 Years
Connector 1
USB-A (5Gbps, 7.5W)
Connector 1 (Quantity)
6
Package Quantity
1
Connector 2
USB-A (5Gbps, 4.5W)
Connector 2 (Quantity)
1
Operating Temperature
0°C to 60°C (32°F to 140°F)
Storage Temperature
-20°C to 75°C (-4°F to 167°F)
Humidity
5 to 95% RH
Material
Metal
Maximum Data Transfer Rate
5 Gbps (USB 3.2 Gen 1)
Industry Standards
USB Battery Charging Specification Rev. 1.2 <br /> USB 3.2 Gen 1 - Backwards compatible with USB 3.0, 2.0, and 1.1
Power Source
Not Included (DC/Terminal Block)
Chipset ID
VIA - VL817-Q7 C0
Special Notes
- The left-most USB port (port 7) supports 4.5W (5V/0.9A) of power and will only support 5Gbps USB devices; It is not compatible with USB 2.0 (480Mbps). See Quick-Start Guide for details.
MTBF
131,406 Hours
LED Indicators
7 - USB Port Status LEDs (Green) - The Corresponding USB-A Data/Charge Port is Enabled or Disabled, 1 - Power LED (Green) - The USB Hub is receiving power
Number of Ports
7
Interface
USB 3.2 Gen 1 (5Gbps)
Type and Rate
USB 5Gbps
System and Cable Requirements
- Available USB 3.2 Gen 1 Port, - USB 3.2 Gen 1 (5 Gbps) is also know as SuperSpeed USB, USB 3.1 Gen 1, and USB 3.0, - DC Power Source +7 to 24V, <br>
Host Connector 1
USB-B (5Gbps, 4.5W)
Host Connector 1 (Quantity)
1
Plug Type
DC Barrel (Type M Plug), Terminal Block (2 Wire)
UASP Support
Yes
Mounting Options
DIN Rail
Fast-Charge Port(s)
Yes
Form Factor
Industrial
USB-C Host Connection
No
USB-C Device Port(s)
No
Total Available Power Output
35W
Number of Battery Charge 1.2 Ports
6
Device Power Consumption
41 Watts
ESD Protection
+/-15kV (Air), +/-8kV (Contact)

Questions & Answers

What DC barrel connector power plug types do StarTech.com products use, and what are their dimensions?
StarTech.com DC barrel connector plug types are defined in the “Plug Type” field of the technical specifications, using a letter code that specifies the connector’s outer diameter (OD) and inner diameter (ID) in millimeters for power adapter compatibility. Explanation: In StarTech.com technical specifications, the “Plug Type” field is a standardized identifier for the exact DC barrel connector size required to power a product. Each plug type is assigned a letter code that corresponds to a specific combination of outer diameter (OD) and inner diameter (ID), measured in millimeters. Common DC barrel plug type dimensions Plug Type OD ID A 2.35 mm 0.7 mm B 4.0 mm 1.7 mm C 4.75 mm 1.7 mm H 3.4 mm 1.3 mm L 5.0 mm 2.5 mm M 5.5 mm 2.1 mm N 5.5 mm 2.5 mm The DC barrel connector plug type must match both the outer diameter and inner diameter exactly. A mismatch between the StarTech.com product requirement and the power adapter connector can prevent proper fit or stable power delivery, which may result in device startup failure or intermittent operation. The plug type defines only the physical connector size. The plug type does not define electrical power requirements such as voltage, current, or polarity. The power adapter used with a StarTech.com product must match the product’s specified electrical requirements. Using an incompatible power adapter can cause device malfunction or permanent damage. This standardized DC barrel connector plug type system enables IT professionals and procurement teams to verify connector dimensions, ensure power adapter compatibility, standardize hardware deployments, and identify the correct replacement power supply for StarTech.com products.
