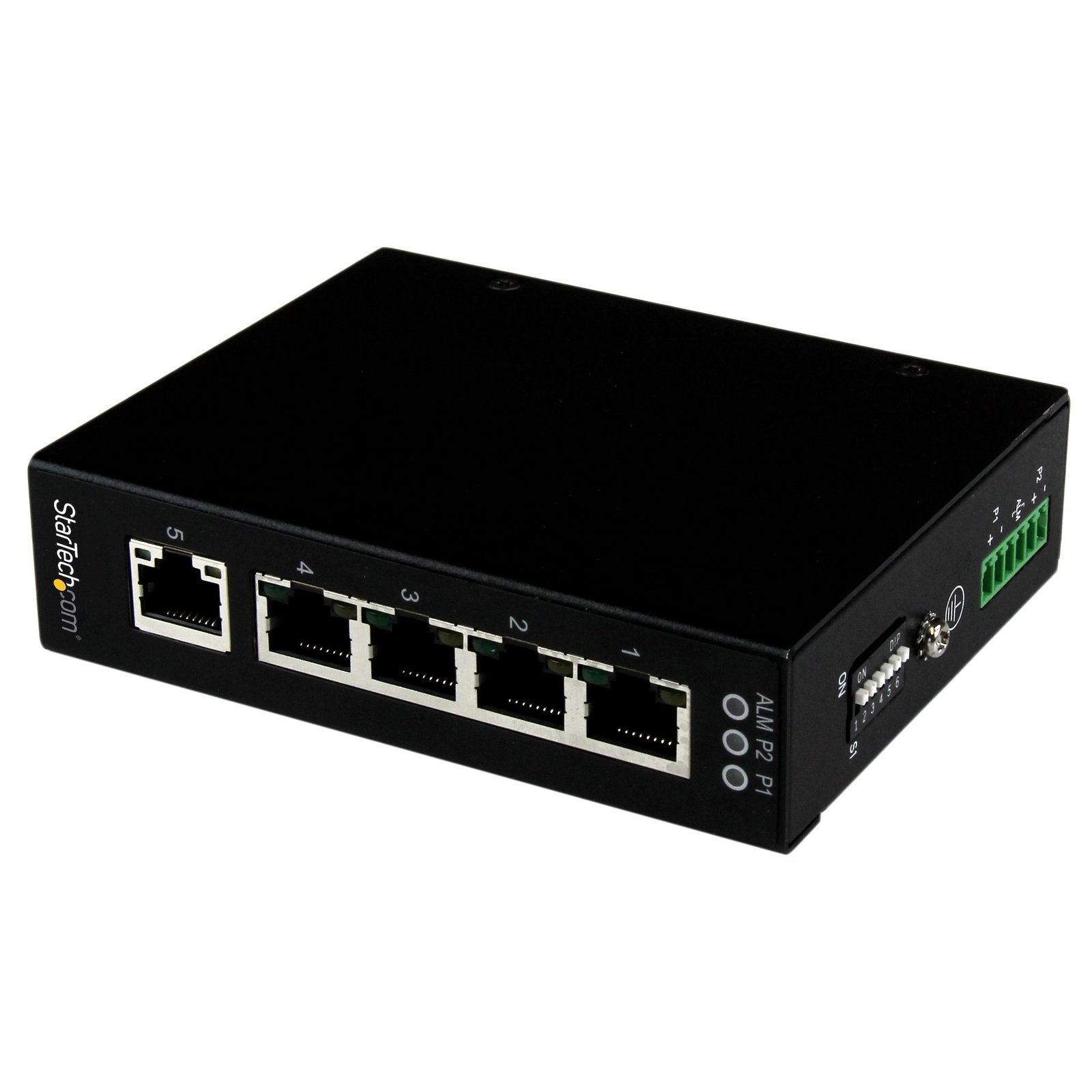

5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable - TAA

Specifications & Compliance

UPC

065030859318

Brand

StarTech.com

Included in Package

1 - Industrial Ethernet Switch, 2 - Wall-Mount Brackets, 1 - DIN-Rail Clip, 4 - Screws, 1 - Terminal Block, 1 - Instruction Manual

Shipping (Package) Weight

18.3 oz [518 g]

Weight of Product

11.6 oz [328.0 g]

Product Length

4.4 in [11.1 cm]

Product Width

3.5 in [89.0 mm]

Product Height

1.1 in [28.0 mm]

Package Depth

5.5 in [13.9 cm]

Package Width

7.0 in [17.8 cm]

Package Height

3.3 in [83 mm]

Color

Black

Warranty

2 Years

Connector 1

RJ-45

Connector 1 (Quantity)

5

Package Quantity

1

Connector 2

Terminal Block (6 Wire)

Connector 2 (Quantity)

1

Operating Temperature

-40°C to 75°C (-40°F to 167°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Humidity

5~95% RH (Non-Condensing)

Material

Steel

Maximum Data Transfer Rate

2 Gbps (Full-Duplex)

Industry Standards

IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-TX, IEEE 802.1p QoS, IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3ad Link Aggregation, IP30 (Enclosure)

Power Source

Terminal Block

Input Voltage

12 ~ 58 DC

Power Consumption

3.63W Max.

LED Indicators

1 - P1 (Power) indicator, 1 - P2 (Power) indicator, 1 - ALM (Alarm) indicator, 5 - Link / Act, 5 - Speed indicator

Number of Ports

5

Interface

RJ45 (Gigabit Ethernet)

Compatible Networks

10/100/1000 Mbps

Maximum Cable Length

328.1 ft [100 m]

Auto MDIX

Yes

Full Duplex Support

Yes

Jumbo Frame Support

9K max.

Flow Control

Half-duplex back-pressure and IEEE802.3x full-duplex

Buffer Size

128 KB

Switching Architecture

Store-and-Forward
