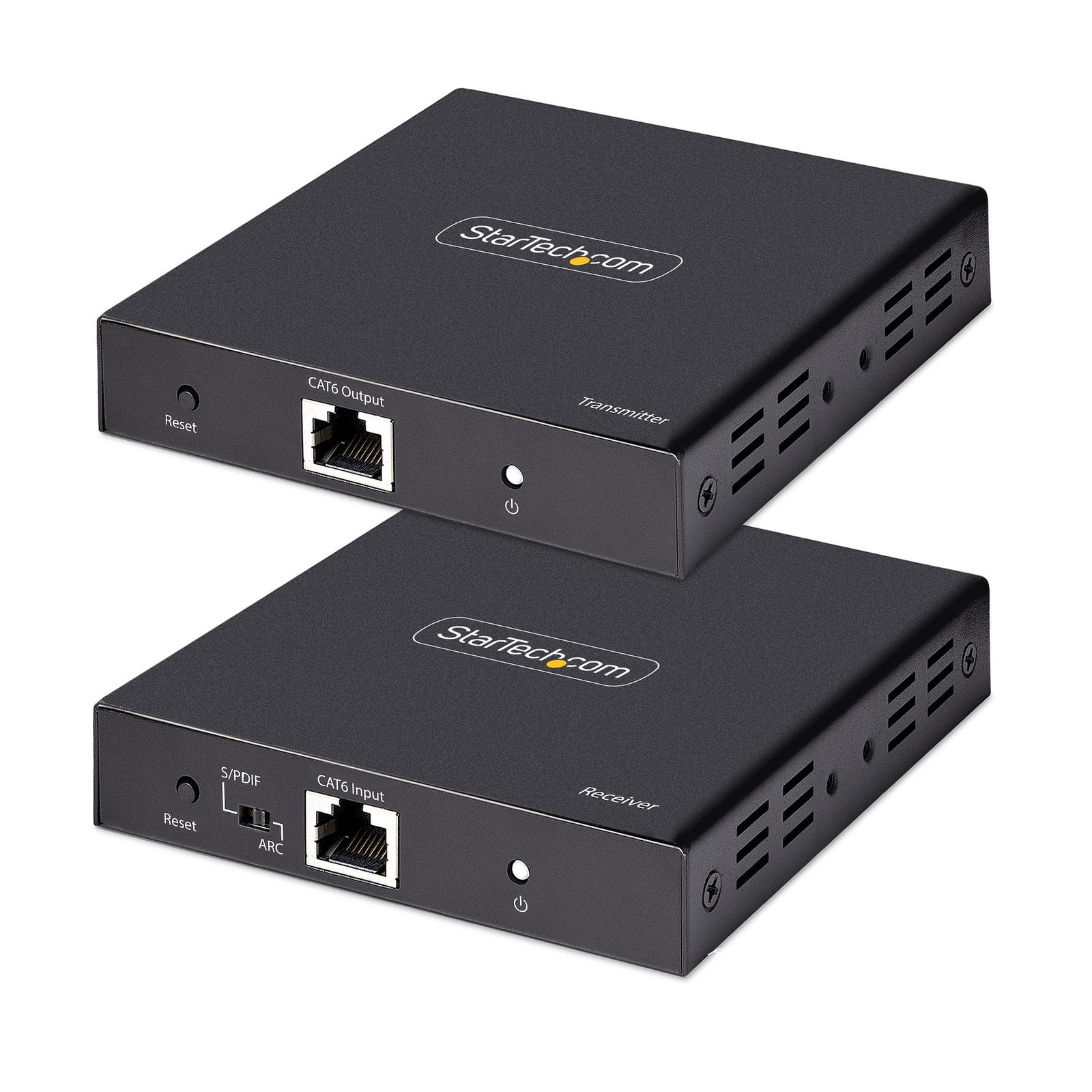

4K HDMI Extender Over CAT5/CAT6 Cable, 4K 60Hz HDR Video Extender Up to 230ft (70m), HDMI Over Ethernet Cabling, S/PDIF Audio Out, HDMI

4K HDMI Extender Over CAT5/CAT6 Cable, 4K 60Hz HDR Video Extender Up to 230ft (70m), HDMI Over Ethernet Cabling, S/PDIF Audio Out, HDMI Transmitter and Receiver Kit

$228.56

Extend an HDMI® audio-video signal up to 230ft (70m), with Power-over-Cable and resolutions up to 4K 60Hz

SKU: 4K70IC-EXTEND-HDMI Category:

Specifications & Compliance

UPC
065030899208
Brand
StarTech.com
Included in Package
1 - Local HDMI Transmitter Unit, 1 - Remote HDMI Receiver Unit, 1 - IR Blaster, 1 - IR Receiver, 8 - Rubber Feet, 1 - Mounting Kit, 1 - Power Adapter, 1 - Quick-Start Guide
Shipping (Package) Weight
32.2 oz [912 g]
Weight of Product
7.4 oz [210.0 g]
Product Length
4.2 in [10.6 cm]
Product Width
3.9 in [99.0 mm]
Product Height
1.0 in [26.0 mm]
Package Depth
9.4 in [24 cm]
Package Width
7.2 in [18.2 cm]
Package Height
3.3 in [83 mm]
Color
Black
Warranty
2 Years
Connector 1
HDMI
Connector 1 (Quantity)
1
Package Quantity
1
Connector 2
3.5mm (3 Conductors, TRS)
Connector 2 (Quantity)
1
Operating Temperature
-20°C to 60°C (-4°F to 140°F)
Storage Temperature
-30°C to 70°C (-22°F to 158°F)
Humidity
0% - 90% RH (non-condensing)
Material
Metal
Power Source
AC Adapter Included
Input Voltage
100 - 240 AC
Output Voltage
12V DC
Connector 3
TOSLINK (Optical S/PDIF)
Connector 3 (Quantity)
1
Power Consumption
0.1W
LED Indicators
1 - <b>Flashing Blue:</b> Power connected, but no HDMI input signal is detected <br> <b>Solid Blue:</b> Power connected, and a HDMI input signal is detected
Input Current
0.3A
Output Current
1
Maximum Digital Resolutions
3840x2160 @ 60Hz
Host Connector 1
HDMI
Host Connector 1 (Quantity)
1
Audio
Yes
Plug Type
M
Center Tip Polarity
Positive
Connector 4
Barrel Power (M-Type, OD 5.5mm / ID 2.1mm)
Connector 4 (Quantity)
1
Wide Screen Supported
Yes
Supported Resolutions
3840x2160 (4K) @ 60Hz <br> 2560x1600 @ 60Hz <br> 1920x1200 @ 60Hz <br> 1920x1080 (1080p) <br> 1280x720 (720p) <br> <br> <i>*Other resolutions and refresh rates may be available</i>
Audio Specifications
HDMI - 7.1 Channel Audio
Host Connector 2
HDMI
Host Connector 2 (Quantity)
1
HDR Support
HDR10
Cascadable
Yes
Connector 5
RJ-45
Connector 5 (Quantity)
1
Rack-Mountable
No
Max Distance
70m [230ft]
Host Connector 3
RJ-45
Host Connector 3 (Quantity)
1
Cabling
Cat 5e UTP or better
Host Connector 4 (Quantity)
1
Host Connector 5 (Quantity)
1

Questions & Answers

What DC barrel connector power plug types do StarTech.com products use, and what are their dimensions?
StarTech.com DC barrel connector plug types are defined in the “Plug Type” field of the technical specifications, using a letter code that specifies the connector’s outer diameter (OD) and inner diameter (ID) in millimeters for power adapter compatibility. Explanation: In StarTech.com technical specifications, the “Plug Type” field is a standardized identifier for the exact DC barrel connector size required to power a product. Each plug type is assigned a letter code that corresponds to a specific combination of outer diameter (OD) and inner diameter (ID), measured in millimeters. Common DC barrel plug type dimensions Plug Type OD ID A 2.35 mm 0.7 mm B 4.0 mm 1.7 mm C 4.75 mm 1.7 mm H 3.4 mm 1.3 mm L 5.0 mm 2.5 mm M 5.5 mm 2.1 mm N 5.5 mm 2.5 mm The DC barrel connector plug type must match both the outer diameter and inner diameter exactly. A mismatch between the StarTech.com product requirement and the power adapter connector can prevent proper fit or stable power delivery, which may result in device startup failure or intermittent operation. The plug type defines only the physical connector size. The plug type does not define electrical power requirements such as voltage, current, or polarity. The power adapter used with a StarTech.com product must match the product’s specified electrical requirements. Using an incompatible power adapter can cause device malfunction or permanent damage. This standardized DC barrel connector plug type system enables IT professionals and procurement teams to verify connector dimensions, ensure power adapter compatibility, standardize hardware deployments, and identify the correct replacement power supply for StarTech.com products.
