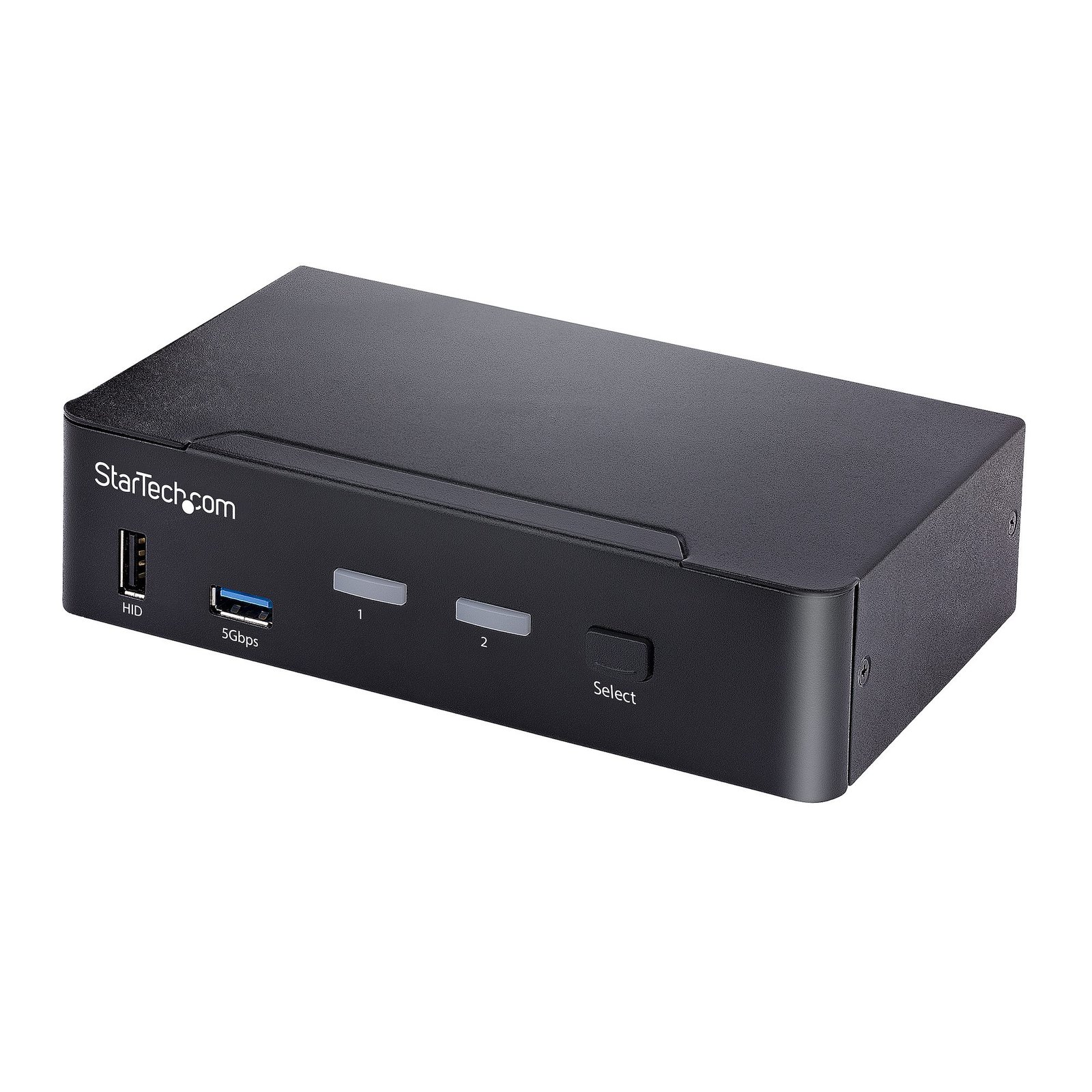

2-Port USB-C KVM Switch, Single 4K 60Hz DisplayPort Monitor, 3.5mm Audio, 6x USB Hub Ports, Hot Key Switching, Thunderbolt 3/4 Compatible

2-Port USB-C KVM Switch, Single 4K 60Hz DisplayPort Monitor, 3.5mm Audio, 6x USB Hub Ports, Hot Key Switching, Thunderbolt 3/4 Compatible - TAA

$275.99

DisplayPort 1.2 KVM | 6x USB Hub Ports | Digital & Analog Audio | TAA Compliant

SKU: SV231DPUCA Category:

Specifications & Compliance

UPC
065030872201
Brand
StarTech.com
Included in Package
1 - KVM Switch, 1 - Set of Rubber Feet, 1 - Universal Power Adapter, 1 - Quick-Start Guide
Shipping (Package) Weight
2.4 lb [1.1 kg]
Weight of Product
21.7 oz [615.0 g]
Product Length
6.3 in [16.0 cm]
Product Width
5.5 in [14.0 cm]
Product Height
1.6 in [40.0 mm]
Package Depth
7.3 in [18.6 cm]
Package Width
9.4 in [24 cm]
Package Height
3.7 in [94 mm]
Warranty
2 Years
Connector 1
DisplayPort
Connector 1 (Quantity)
1
Package Quantity
1
Connector 2
USB-A (5Gbps, 4.5W)
Connector 2 (Quantity)
2
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-10°C to 60°C (14°F to 140°F)
Humidity
0 ~ 80% RH
Maximum Data Transfer Rate
5 Gbps
Power Source
AC Adapter Included
Chipset ID
Parade - PS8461</br>Etron - EJ899I
Input Voltage
100 - 240 AC
Output Voltage
12V DC
Connector 3
USB-A (1.5Mbps, 2.5W)
Connector 3 (Quantity)
4
MTBF
158,000 hrs
LED Indicators
2 - Red (Selected Host), 2 - Green (Power/Sync)
Input Current
1.2A
Output Current
3
Host Connector 1
USB-C DP++ (DP Alt-Mode)
Host Connector 1 (Quantity)
2
Audio
Yes
Plug Type
M
Center Tip Polarity
Positive
Connector 4
3.5mm (3 Conductors, TRS)
Connector 4 (Quantity)
2
Wide Screen Supported
Yes
Audio Specifications
Analog Stereo - 2 Channel Audio
Cascadable
No
Rack-Mountable
No
Number of KVM Ports
2
IP Control
No
Supported Platforms
USB-C
PC Video Type
USB-C (DP Alt-Mode)
Number of Monitors Supported
1
Video Revision
DisplayPort 1.2
On-Screen Display
No
Cables Included
No
Port Selection Support
Push Button and Hotkeys
Hot-Key Selection
Yes
CAC Support
No
Auto Scan
3, 8, 15 & 30 seconds

Questions & Answers

What DC barrel connector power plug types do StarTech.com products use, and what are their dimensions?
StarTech.com DC barrel connector plug types are defined in the “Plug Type” field of the technical specifications, using a letter code that specifies the connector’s outer diameter (OD) and inner diameter (ID) in millimeters for power adapter compatibility. Explanation: In StarTech.com technical specifications, the “Plug Type” field is a standardized identifier for the exact DC barrel connector size required to power a product. Each plug type is assigned a letter code that corresponds to a specific combination of outer diameter (OD) and inner diameter (ID), measured in millimeters. Common DC barrel plug type dimensions Plug Type OD ID A 2.35 mm 0.7 mm B 4.0 mm 1.7 mm C 4.75 mm 1.7 mm H 3.4 mm 1.3 mm L 5.0 mm 2.5 mm M 5.5 mm 2.1 mm N 5.5 mm 2.5 mm The DC barrel connector plug type must match both the outer diameter and inner diameter exactly. A mismatch between the StarTech.com product requirement and the power adapter connector can prevent proper fit or stable power delivery, which may result in device startup failure or intermittent operation. The plug type defines only the physical connector size. The plug type does not define electrical power requirements such as voltage, current, or polarity. The power adapter used with a StarTech.com product must match the product’s specified electrical requirements. Using an incompatible power adapter can cause device malfunction or permanent damage. This standardized DC barrel connector plug type system enables IT professionals and procurement teams to verify connector dimensions, ensure power adapter compatibility, standardize hardware deployments, and identify the correct replacement power supply for StarTech.com products.
