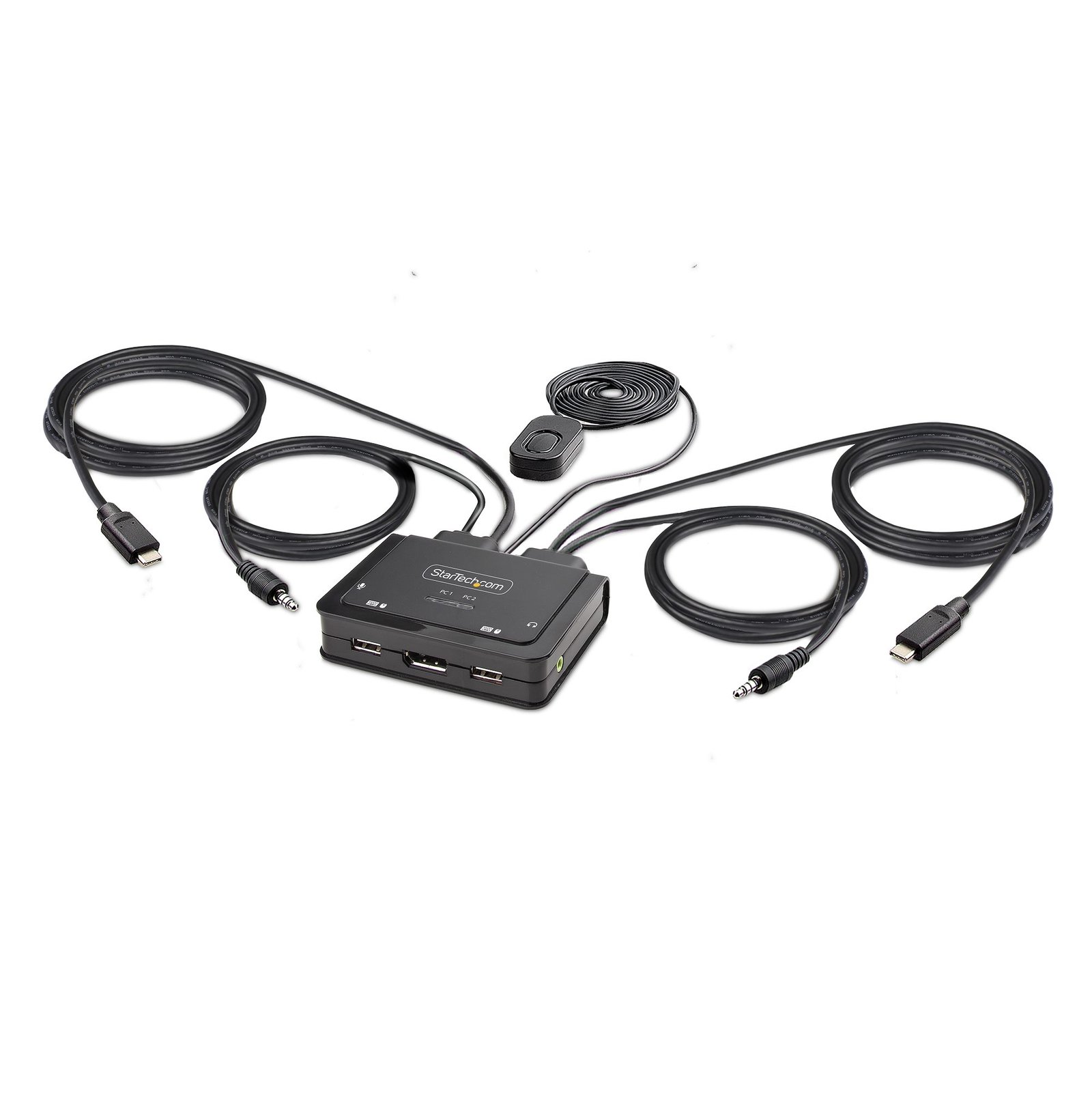

2-Port USB-C Cable KVM Switch, 4K 60Hz DisplayPort Output, Compact KVM with 4ft/1.2m USB Type-C/Audio Integrated Cables, Bus Powered

2-Port USB-C Cable KVM Switch, 4K 60Hz DisplayPort Output, Compact KVM with 4ft/1.2m USB Type-C/Audio Integrated Cables, Bus Powered - Remote Push-Button/Hotkey Switching

$126.99

Share a mouse, keyboard, and 4K 60Hz DisplayPort display between two USB-C enabled laptops, using this KVM Switch with built-in cables

SKU: C2-D46-UC2-CBL-KVM Category:

Specifications & Compliance

UPC
065030899352
Brand
StarTech.com
Included in Package
1 - KVM Switch, 1 - Quick-Start Guide
Shipping (Package) Weight
11.9 oz [336 g]
Weight of Product
12.4 oz [350.0 g]
Product Length
3.3 in [83.0 mm]
Product Width
3.8 in [97.0 mm]
Product Height
1.0 in [25.0 mm]
Package Depth
6.4 in [16.2 cm]
Package Width
9.4 in [23.8 cm]
Package Height
2.4 in [61 mm]
Color
Black
Cable Length
3.9 ft [1.2 m]
Warranty
2 Years
Connector 1
DisplayPort
Connector 1 (Quantity)
1
Package Quantity
1
Connector 2
USB-A (480Mbps, 2.5W)
Connector 2 (Quantity)
2
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Humidity
0% ~ 90% RH (non-condensing)
Material
ABS
Power Source
Bus Powered
Special Notes
OS Compatibility refers to the available KVM software only. The KVM can be used without software on any platform
Connector 3
3.5mm (3 Conductors, TRS)
Connector 3 (Quantity)
2
MTBF
230,568 Hours
LED Indicators
1 - <b>Solid Green:</b> Selected PC is Connected, 1 - <b>Blinking Green:</b> Selected PC is not detected
Host Connector 1
USB-C DP++ (DP Alt-Mode)
Host Connector 1 (Quantity)
2
Audio
Yes
Supported Resolutions
3840x2160 60hz <br> 5120x1440 60hz<br> 3440x1440 60hz<br> 3440x1440 100hz<br> 2560x1440 60hz<br> 2560x1080 75hz<br> 1920x1200 60hz<br> 1920x1080 60hz<br> <br> <i>Other resolutions and refresh rates may be supported</i>
Audio Specifications
DisplayPort - 2 Channel Audio, Analog Stereo - 2 Channel Audio
Host Connector 2
3.5mm (4 Conductors, TRRS)
Host Connector 2 (Quantity)
2
Cascadable
No
Rack-Mountable
No
Number of KVM Ports
2
IP Control
No
Supported Platforms
USB-C
PC Video Type
USB-C (DP Alt-Mode)
Number of Monitors Supported
1
Video Revision
DisplayPort 1.2
On-Screen Display
No
Cables Included
Yes
Port Selection Support
Push Button, Hotkeys, and Software
Hot-Key Selection
Yes
CAC Support
No
Auto Scan
10, 20, 30, 40, 50, and 60 seconds

Questions & Answers

What is a KVM switch, and how do I determine if it is compatible with my setup?
A KVM switch allows you to control multiple computers with one keyboard, monitor, and mouse, and compatibility depends on matching the number of systems, connection types, and feature requirements. Explanation: A KVM (Keyboard, Video, Mouse) switch enables a single set of peripherals to control multiple computers. Many KVM switches also support additional devices such as USB peripherals and audio. There are several types of KVM switches designed for different use cases: Standard KVM switches : Connect multiple computers using a central unit. Cable KVM switches : Integrate cables into the design for simpler setups. Multi-monitor KVM switches : Support switching between multiple displays per computer. Secure KVM switches : NIAP-certified for secure environments. To ensure compatibility, verify the following: Number of computers : The KVM switch must support the total number of connected systems. Video interfaces : Match the video input/output types (such as HDMI, DisplayPort, or DVI) across all devices. Peripheral connections : Confirm support for USB or PS/2 keyboards and mice. Display requirements : Ensure the KVM switch supports the required resolution and number of monitors. Additional features : Check for audio support or hotkey switching if needed. Some KVM switches require specific or proprietary cables, which are included or listed as accessories for the product. Basic wired keyboards and mice are recommended, as wireless, gaming, or combined receiver devices may not function reliably with KVM switches.
