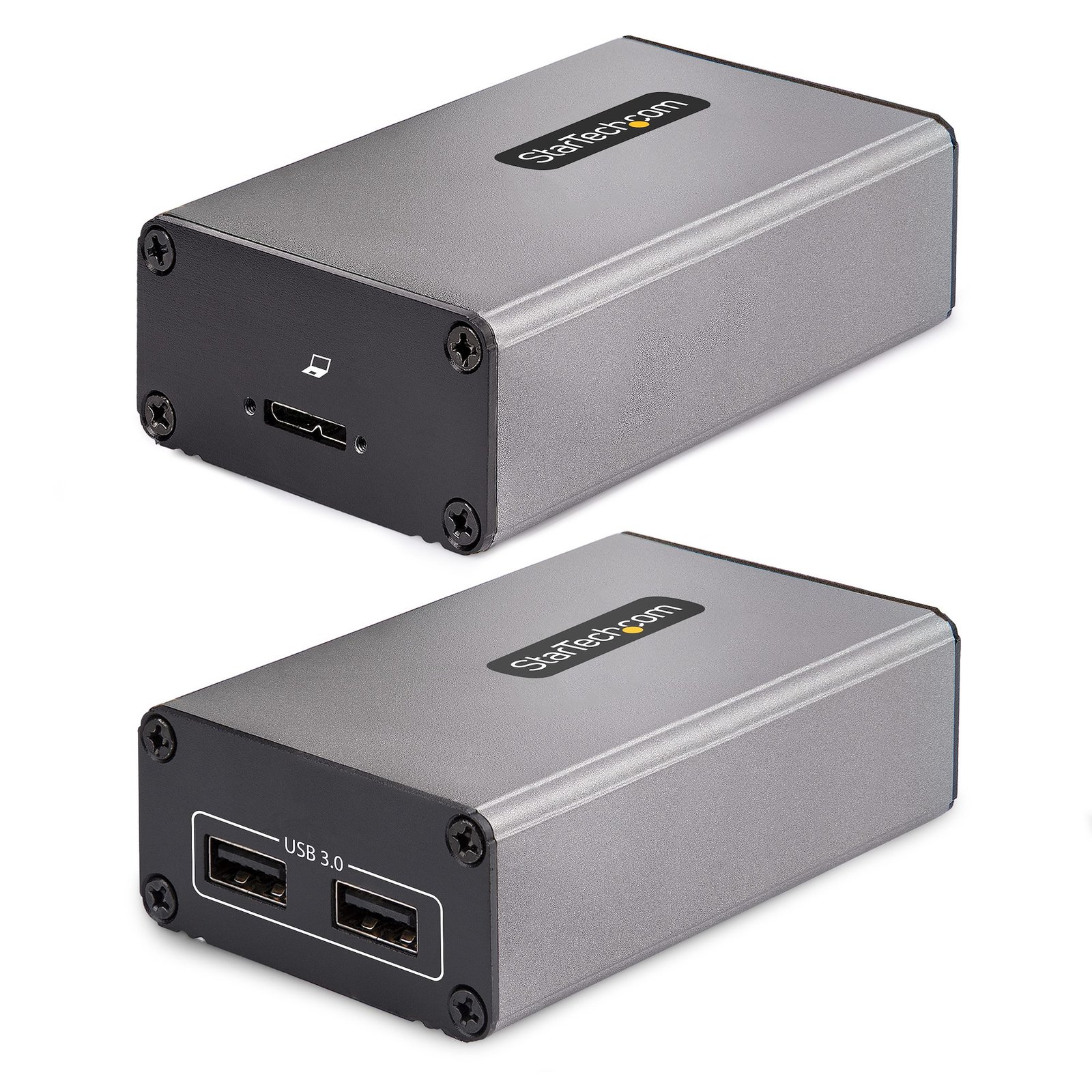

2-Port USB 3.0 Extender over OM3 Multimode Fiber - LC/LC - 2x 5Gbps USB-A Hub - 350m (1150ft) Range - Durable USB Fiber Optic Extender

2-Port USB 3.0 Extender over OM3 Multimode Fiber - LC/LC - 2x 5Gbps USB-A Hub - 350m (1150ft) Range - Durable USB Fiber Optic Extender - Optical USB Extender - TAA

$1,097.76

Securely extend your USB signals over longer distances using fiber optic cable

SKU: F35023-USB-EXTENDER Category:

Specifications & Compliance

UPC
065030897389
Brand
StarTech.com
Included in Package
1 - Local Extender, 1 - Remote Extender, 1 - 50 cm USB Type A to USB Micro B Cable For Host Connection, 1 - Power Adapter, 1 - Quick-Start Guide
Shipping (Package) Weight
24.4 oz [690 g]
Weight of Product
9.6 oz [271.0 g]
Product Length
2.2 in [57.0 mm]
Product Width
3.7 in [93.0 mm]
Product Height
1.1 in [28.0 mm]
Package Depth
6.1 in [15.5 cm]
Package Width
4.6 in [11.8 cm]
Package Height
5.1 in [13 cm]
Warranty
2 Years
Connector 1
LC Duplex Fiber
Connector 1 (Quantity)
1
Package Quantity
1
Connector 2
USB-A (5Gbps, 4.5W)
Connector 2 (Quantity)
2
Operating Temperature
32°F ~ 122°F (0°C to 50°C)
Storage Temperature
-4°F ~ 158°F (-20°C to 70°C)
Humidity
20% ~ 80% Operating</br> 10% ~ 90% Storage
Maximum Data Transfer Rate
5 Gbps (USB 3.2 Gen 1)
Power Source
AC Adapter Included
Special Notes
- Designed for use exclusively with the included SFP module. Other modules are not supported., - Each extender kit is factory-paired with its transmitter and receiver. Swapping components between kits is not supported.
Input Voltage
100 - 240 AC
Output Voltage
5 DC
Connector 3
LC Duplex Fiber
Connector 3 (Quantity)
1
Power Consumption
15 W
LED Indicators
1 - Transmitter (Host Side) </br> Link LED = Solid Blue is Link </br> OFF = No Link </br> Power LED = Solid Blue is Power </br> Off = No Power </br> </br> Receiver (Remote Unit) </br> Link LED = Solid Blue is Link </br> OFF = No Link </br> Power LED = Solid Blue is Power </br> Off = No Power
Number of Ports
2
Interface
Fiber Ethernet
Input Current
0.48 A
Output Current
3
Host Connector 1
USB Micro-B (5Gbps, 4.5W)
Host Connector 1 (Quantity)
1
Plug Type
H
Center Tip Polarity
Positive
Max Distance
350m [1148]
Cabling
Fiber Optic

Questions & Answers

What DC barrel connector power plug types do StarTech.com products use, and what are their dimensions?
StarTech.com DC barrel connector plug types are defined in the “Plug Type” field of the technical specifications, using a letter code that specifies the connector’s outer diameter (OD) and inner diameter (ID) in millimeters for power adapter compatibility. Explanation: In StarTech.com technical specifications, the “Plug Type” field is a standardized identifier for the exact DC barrel connector size required to power a product. Each plug type is assigned a letter code that corresponds to a specific combination of outer diameter (OD) and inner diameter (ID), measured in millimeters. Common DC barrel plug type dimensions Plug Type OD ID A 2.35 mm 0.7 mm B 4.0 mm 1.7 mm C 4.75 mm 1.7 mm H 3.4 mm 1.3 mm L 5.0 mm 2.5 mm M 5.5 mm 2.1 mm N 5.5 mm 2.5 mm The DC barrel connector plug type must match both the outer diameter and inner diameter exactly. A mismatch between the StarTech.com product requirement and the power adapter connector can prevent proper fit or stable power delivery, which may result in device startup failure or intermittent operation. The plug type defines only the physical connector size. The plug type does not define electrical power requirements such as voltage, current, or polarity. The power adapter used with a StarTech.com product must match the product’s specified electrical requirements. Using an incompatible power adapter can cause device malfunction or permanent damage. This standardized DC barrel connector plug type system enables IT professionals and procurement teams to verify connector dimensions, ensure power adapter compatibility, standardize hardware deployments, and identify the correct replacement power supply for StarTech.com products.
