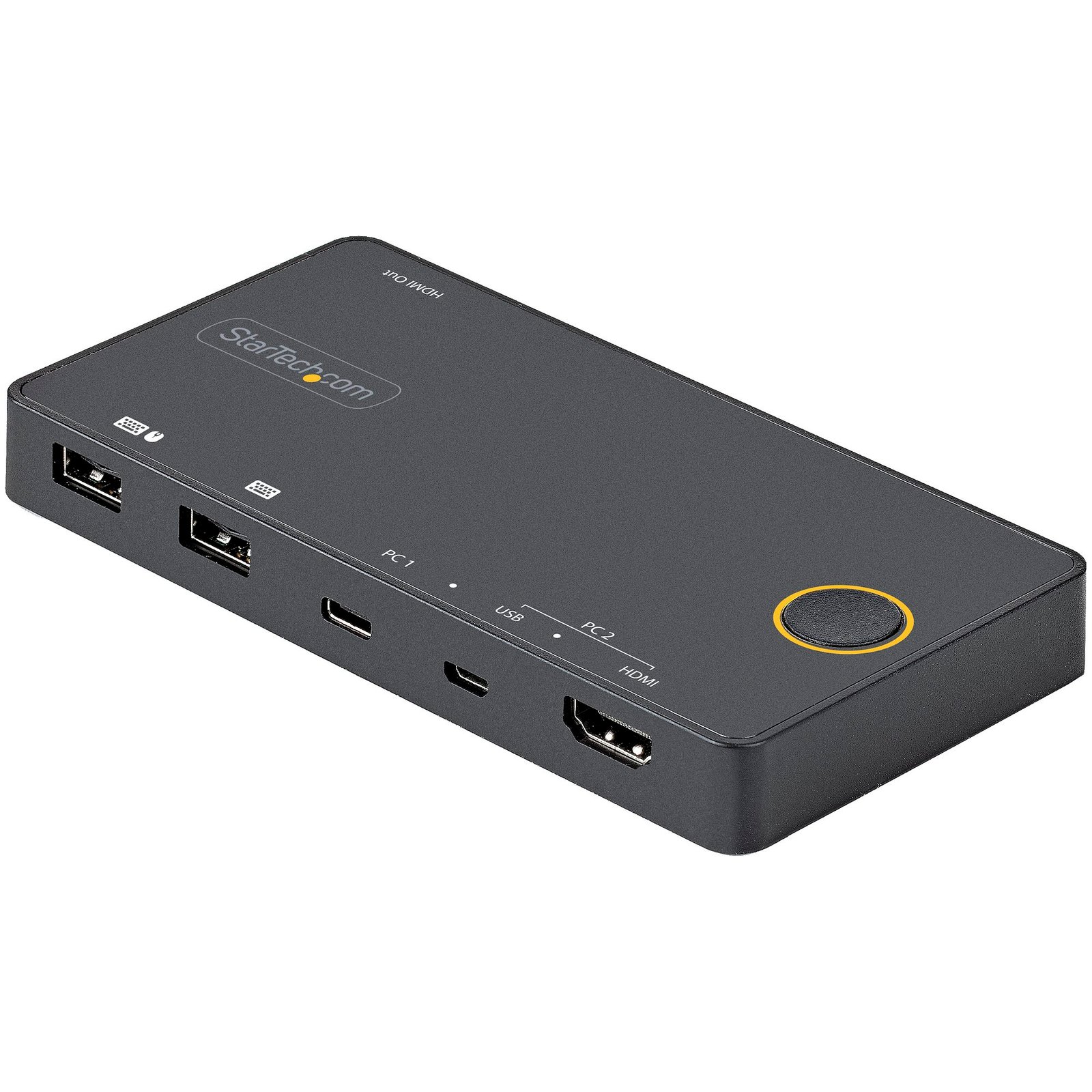

2 Port Hybrid USB-A + HDMI & USB-C KVM Switch - Single 4K 60Hz HDMI 2.0 Monitor - Compact Desktop and/or Laptop HDMI KVM Switch - USB Bus

2 Port Hybrid USB-A + HDMI & USB-C KVM Switch - Single 4K 60Hz HDMI 2.0 Monitor - Compact Desktop and/or Laptop HDMI KVM Switch - USB Bus Powered - Thunderbolt 3 Compatible - TAA

$54.99

USB-C & USB-A/HDMI Desktop KVM Switch | 2 Port | 4K 60Hz HDMI 2.0

SKU: SV221HUC4K Category:

Specifications & Compliance

UPC
065030891820
Brand
StarTech.com
Included in Package
1 - KVM Switch, 1 - USB-C Cable (1 m), 1 - USB-A to Micro USB-B Cable (1 m), 1 - HDMI Cable (1 m), 1 - Quick-Start Guide
Shipping (Package) Weight
18.1 oz [514 g]
Weight of Product
8.0 oz [228.0 g]
Product Length
2.8 in [70.0 mm]
Product Width
5.4 in [13.8 cm]
Product Height
0.6 in [15.0 mm]
Package Depth
7.0 in [17.7 cm]
Package Width
5.0 in [12.6 cm]
Package Height
3.4 in [87 mm]
Color
Black
Warranty
2 Years
Connector 1
USB-A (480Mbps, 2.5W)
Connector 1 (Quantity)
2
Package Quantity
1
Connector 2
HDMI
Connector 2 (Quantity)
1
Operating Temperature
5°C ~ 55°C
Storage Temperature
-20°C ~ 50°C
Humidity
20%RH ~ 80%RH
Material
Plastic
Maximum Data Transfer Rate
480 Mbps
Power Source
Bus Powered
Chipset ID
Parade - PS176 <br> VLI - VL170<br>Terminus - FE1.1S
Special Notes
Your USB-C ports must support DisplayPort over USB-C (DP Alt mode) in order to work with this KVM switch
MTBF
50,000 hrs
LED Indicators
2 - Port selection or active host
Host Connector 1
HDMI
Host Connector 1 (Quantity)
1
Audio
Yes
Wide Screen Supported
Yes
Audio Specifications
HDMI - 7.1 Channel Audio
Host Connector 2
USB Micro-B (480Mbps, 2.5W)
Host Connector 2 (Quantity)
1
Cascadable
No
Rack-Mountable
No
Number of KVM Ports
2
IP Control
No
Supported Platforms
USB & USB-C
PC Video Type
USB-C (DP Alt-Mode) + HDMI
Number of Monitors Supported
1
Video Revision
HDMI 2.0, DisplayPort 1.2
On-Screen Display
No
Cables Included
Yes
Port Selection Support
Push Button
Hot-Key Selection
No
Host Connector 3
USB-C (480Mbps, 2.5W)
Host Connector 3 (Quantity)
1
CAC Support
No

Questions & Answers

My Monitors are flickering when connected through the KVM Switch. What do I do?
Monitors may begin flickering when they receive a signal of insufficient quality. There are a few potential fixes available that will help to improve the signal quality in order to eliminate flickering: Replace Video Cables with high-quality Video Cables (e.g. upgrade DisplayPort 1.2 Cables to DisplayPort 1.4 Cables ). Use shorter Video Cables to reduce signal attenuation. When possible, remove Video Adapters to use native Video Connection Types (e.g. go from VGA to VGA , or DisplayPort to DisplayPort ) For DisplayPort Monitors , try changing the DisplayPort Version on the Monitor . For information on how to change your Monitor Settings refer to the Manual from the Monitor Manufacturer . Update the Drivers for the Computer’s GPU to the latest available from the Monitor Manufacturer .
