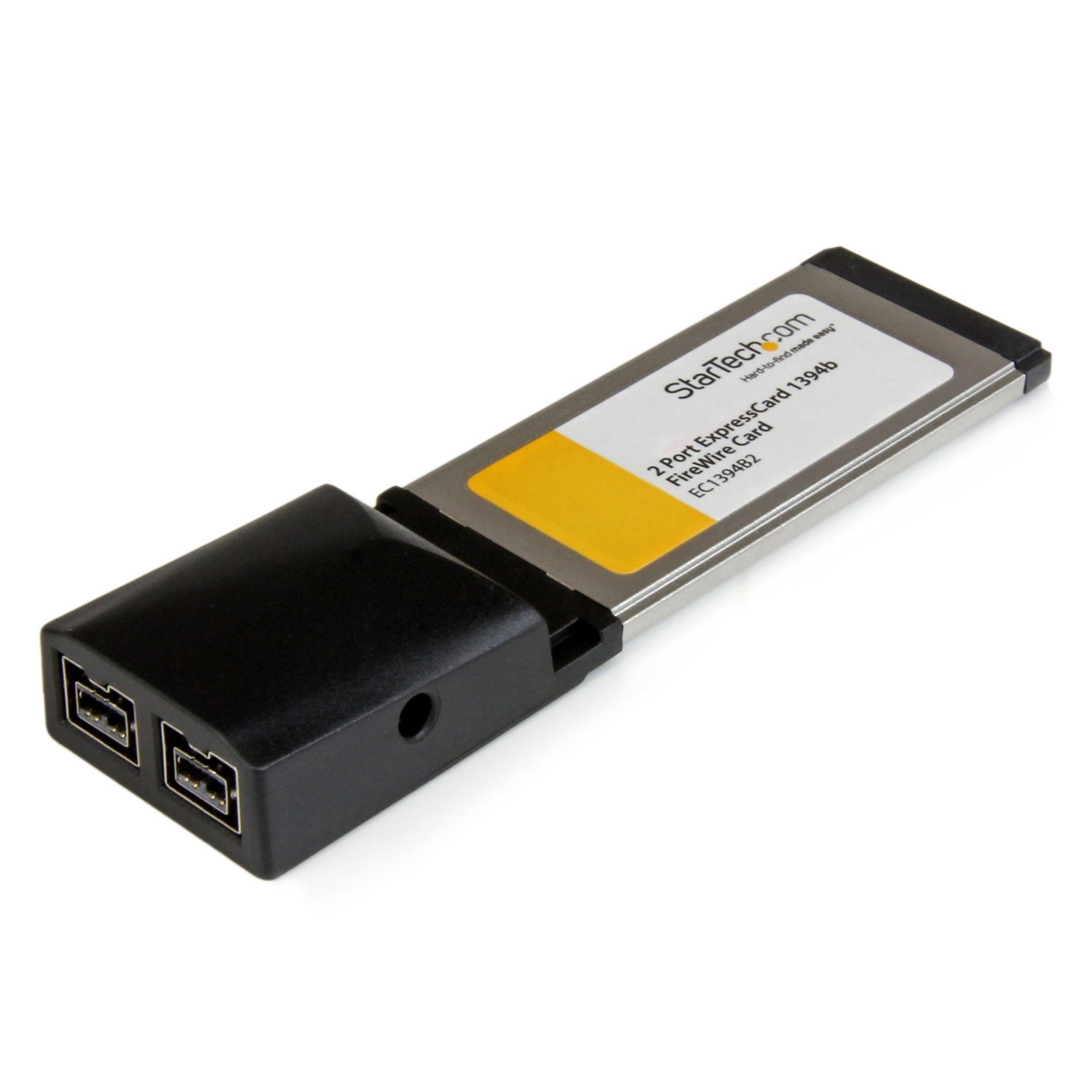

2 Port ExpressCard 1394b FireWire Laptop Adapter Card

Questions & Answers

Does this device require drivers or additional setup?
No. This card is natively supported by all operating systems listed on the product page under the Technical Specifications section. In most cases, the operating system will automatically detect and install the card after it is installed. Explanation: This card uses drivers that are built into the supported operating systems, so no additional driver installation is normally required. To install the card: Install the card in a compatible expansion slot. Start the computer. Allow the operating system to automatically detect and configure the hardware. Once installation is complete, the card should be ready to use without any additional software or configuration. If the card is not functioning correctly in Windows after installation, refer to the FireWire legacy driver FAQ for instructions on switching to the legacy IEEE 1394 driver: https://www.startech.com/faq/firewire-cards-windows-legacy-driver-swap .

Everything is hooked up but nothing is working. What should I do? (Windows)
When you troubleshoot issues with a FireWire controller card, there are some quick tests that you can complete to rule out potential problems. You can test to make sure that the following components are working correctly and are not the source of the issue: FireWire cables FireWire devices FireWire controller card To test your setup components, try the following: Use the FireWire cables, devices, and controller card in another setup to see if the problem is with the components or the setup. Use a different FireWire cable, device, and controller card in your setup to see if the problem persists. Ideally, you should test a component that you know works in another setup. When you test the FireWire device and controller card, it is recommended that you do the following: Press the Windows key + R , type devmgmt.msc , and press Enter to open Device Manager . Check to see if your devices are listed under IEEE 1394 controllers . If you do not see the FireWire controller card listed in Device Manager, refer to the following FAQ: https://www.startech.com/en-us/faq/pci-pcie-cannot-boot-os-or-detect-windows .

How do I install the Firewire 1394 Legacy Driver in Windows 10?
Download the Microsoft Firewire 1394 Legacy Driver Installer Double-click to run the 1394_OHCI_LegacyDriver.msi file. This will extract the drivers to: C:Program Files (x86)1394 OHCI Compliant Host Controller (Legacy) Open the folder: C:Program Files (x86)1394 OHCI Compliant Host Controller (Legacy)X64_driver Right-click on Legacy1394.inf and choose Install to install the drivers Press the Windows Key + R Type devmgmt.msc Click OK In Device Manager , expand IEEE 1394 Bus Host Controllers Right-click on 1394 OHCI Compliant Host Controller Click Update Driver Software Click Browse my computer for driver software Click Let me pick from a list of device drivers on my computer Click 1394 OHCI Compliant Host Controller (Legacy) Click Next (When Windows has finished installing the driver) click Close

How do I confirm that Windows detects my expansion card?
To confirm that Windows detects your expansion card, complete the following: Press the Windows key+ R , type devmgmt.msc , and press Enter . In Device Manager , under the appropriate heading, confirm that your expansion card is listed and that there isn't an exclamation mark next to it. For example, a USB controller card would be under Universal Serial Bus controllers . Your expansion card is listed according to the name of the chipset. To determine the name of the chipset of your expansion card, navigate to www.StarTech.com and look on the Technical Specifications tab for your product.

How can I check if my expansion card is properly detected by Mac OS?
To confirm that the Mac OS detects your expansion card, complete the following: In the upper-left screen, click the Apple icon. Click About This Mac . Click More Info or System Report . Under the appropriate heading, confirm that your expansion card is listed and that there isn't an error. For example, a network card would be under Ethernet Cards . You may need to refresh the System Information page after you plug in your device. To do so, press Command + R with the System Information page open. Your expansion card is listed according to the name of the chipset. To determine the name of the chipset of your expansion card, navigate to www.StarTech.com and look on the Technical Specifications tab for your product.

What DC barrel connector power plug types do StarTech.com products use, and what are their dimensions?
StarTech.com DC barrel connector plug types are defined in the “Plug Type” field of the technical specifications, using a letter code that specifies the connector’s outer diameter (OD) and inner diameter (ID) in millimeters for power adapter compatibility. Explanation: In StarTech.com technical specifications, the “Plug Type” field is a standardized identifier for the exact DC barrel connector size required to power a product. Each plug type is assigned a letter code that corresponds to a specific combination of outer diameter (OD) and inner diameter (ID), measured in millimeters. Common DC barrel plug type dimensions Plug Type OD ID A 2.35 mm 0.7 mm B 4.0 mm 1.7 mm C 4.75 mm 1.7 mm H 3.4 mm 1.3 mm L 5.0 mm 2.5 mm M 5.5 mm 2.1 mm N 5.5 mm 2.5 mm The DC barrel connector plug type must match both the outer diameter and inner diameter exactly. A mismatch between the StarTech.com product requirement and the power adapter connector can prevent proper fit or stable power delivery, which may result in device startup failure or intermittent operation. The plug type defines only the physical connector size. The plug type does not define electrical power requirements such as voltage, current, or polarity. The power adapter used with a StarTech.com product must match the product’s specified electrical requirements. Using an incompatible power adapter can cause device malfunction or permanent damage. This standardized DC barrel connector plug type system enables IT professionals and procurement teams to verify connector dimensions, ensure power adapter compatibility, standardize hardware deployments, and identify the correct replacement power supply for StarTech.com products.
