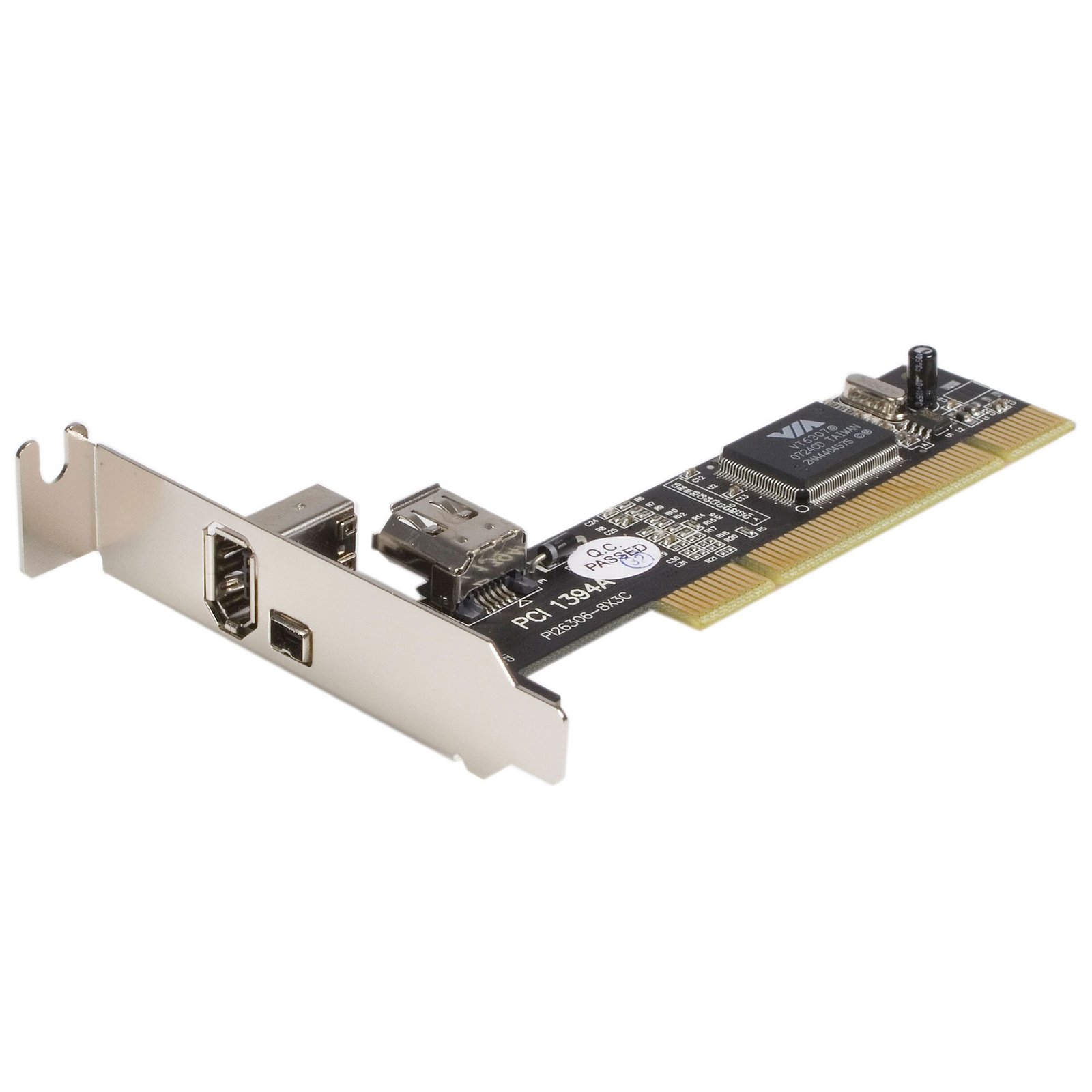

3 Port PCI Low Profile 1394a FireWire Adapter Card

3 Port PCI Low Profile 1394a FireWire Adapter Card

$29.99

Add 2 external and 1 internal FireWire400 port to any computer with a low profile PCI slot

SKU: PCI1394_2LP Category:

Specifications & Compliance

UPC
065030809931
Brand
StarTech.com
Included in Package
1 - 2 Port Low Profile Firewire Card, 1 - 4-pin to 6-pin Firewire Cable, 1 - Full Profile Bracket, 1 - Instruction Manual
Shipping (Package) Weight
7.8 oz [220 g]
Weight of Product
4.9 oz [140 g]
Package Depth
1.4 in [36 mm]
Package Width
7.1 in [18 cm]
Package Height
5.1 in [13 cm]
Warranty
Lifetime
Connector 1
PCI / PCI-X
Connector 1 (Quantity)
1
Package Quantity
1
Connector 2
FireWire 400 (6-Pin, 400Mbps, Bus Power)
Connector 2 (Quantity)
1
Maximum Data Transfer Rate
400 Mbps
Industry Standards
PCI 2.1, IEEE 1394, IEEE 1394a, OHCI
Chipset ID
VIA/VLI - VT6307
Special Notes
The internal port and the top external port share the same connection, meaning that only one of these two ports can be used at a time. Configured with low bracket and standard bracket included
Connector 3
FireWire 400 (4-Pin, 400Mbps, No Bus Power)
Connector 3 (Quantity)
1
Number of Ports
2
Interface
FireWire 400 (1394a)
Bus Type
PCI / PCI-X (5 / 3.3V)
System and Cable Requirements
1 x Free PCI slot
Connector 4 (Quantity)
1
Card Type
Low Profile (SP bracket incl.)

Questions & Answers

Everything is hooked up but nothing is working. What should I do? (Windows)
When you troubleshoot issues with a FireWire controller card, there are some quick tests that you can complete to rule out potential problems. You can test to make sure that the following components are working correctly and are not the source of the issue: FireWire cables FireWire devices FireWire controller card To test your setup components, try the following: Use the FireWire cables, devices, and controller card in another setup to see if the problem is with the components or the setup. Use a different FireWire cable, device, and controller card in your setup to see if the problem persists. Ideally, you should test a component that you know works in another setup. When you test the FireWire device and controller card, it is recommended that you do the following: Press the Windows key + R , type devmgmt.msc , and press Enter to open Device Manager . Check to see if your devices are listed under IEEE 1394 controllers . If you do not see the FireWire controller card listed in Device Manager, refer to the following FAQ: https://www.startech.com/en-us/faq/pci-pcie-cannot-boot-os-or-detect-windows .

How do I confirm that Windows detects my expansion card?
To confirm that Windows detects your expansion card, complete the following: Press the Windows key+ R , type devmgmt.msc , and press Enter . In Device Manager , under the appropriate heading, confirm that your expansion card is listed and that there isn't an exclamation mark next to it. For example, a USB controller card would be under Universal Serial Bus controllers . Your expansion card is listed according to the name of the chipset. To determine the name of the chipset of your expansion card, navigate to www.StarTech.com and look on the Technical Specifications tab for your product.

How do I confirm that my expansion card is detected by the Mac OS?
To confirm that the Mac OS detects your expansion card, complete the following: Click the Apple icon. Click About This Mac . Click More Info or System Report . Under the appropriate heading, confirm that your expansion card is listed and that there isn't an error. For example, a network card would be under Ethernet Cards . Your expansion card is listed according to the name of the chipset. To determine the name of the chipset of your expansion card, navigate to www.StarTech.com and look on the Technical Specifications tab for your product.
