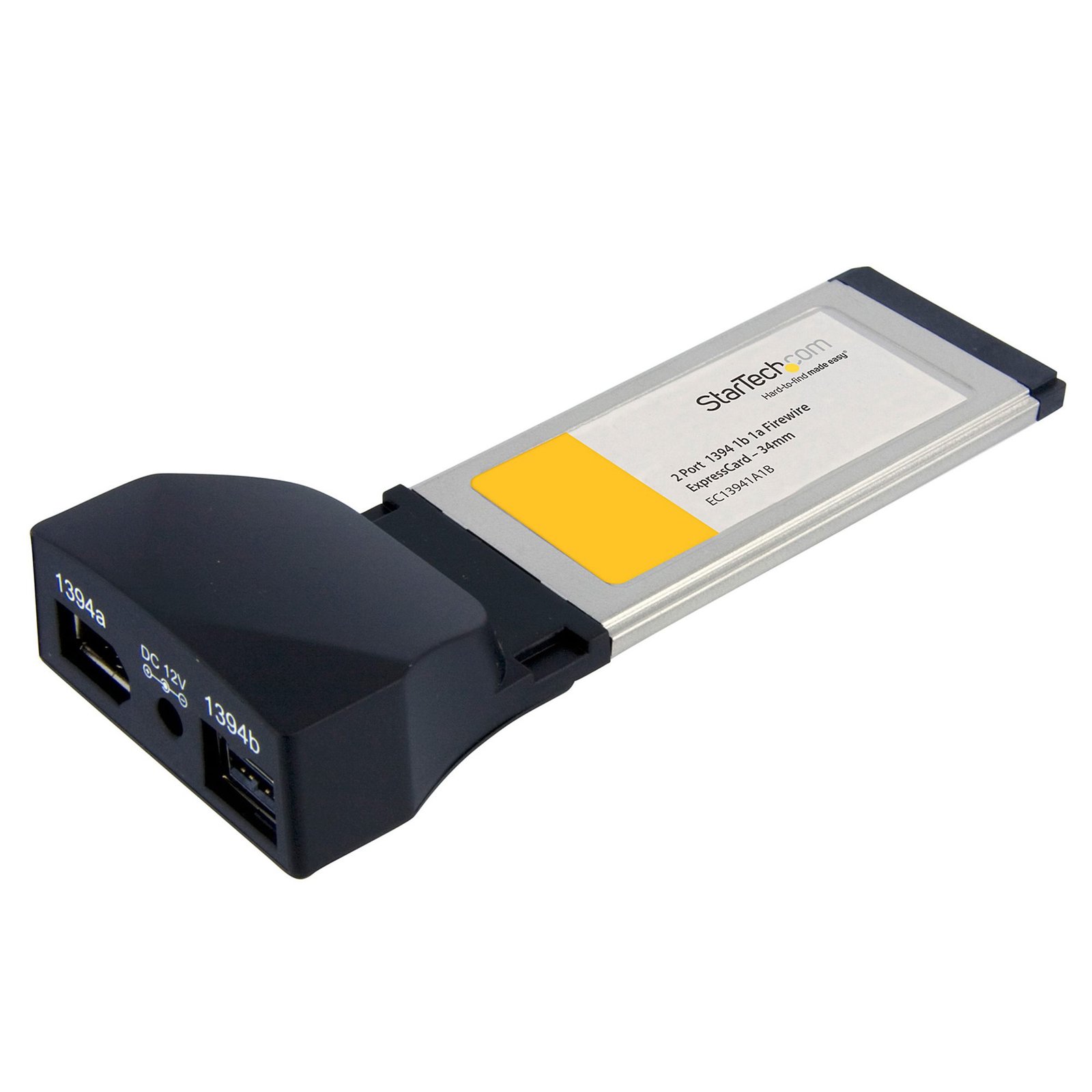

2 Port 1b 1a ExpressCard 34mm Laptop 1394 FireWire Adapter Card

Specifications & Compliance

UPC

065030832809

Brand

StarTech.com

Included in Package

1 - ExpressCard FireWire Card, 1 - FireWire Cable, 1 - Software CD, 1 - Instruction Manual

Shipping (Package) Weight

6.3 oz [178 g]

Weight of Product

1.1 oz [31 g]

Product Length

4.5 in [11.5 cm]

Product Width

1.7 in [44 mm]

Product Height

0.8 in [20 mm]

Package Depth

5.7 in [14.5 cm]

Package Width

9.3 in [23.5 cm]

Package Height

2.4 in [60 mm]

Warranty

Lifetime

Connector 1

ExpressCard/34

Connector 1 (Quantity)

1

Connector 2

FireWire 400 (6-Pin, 400Mbps, Bus Power)

Connector 2 (Quantity)

1

Maximum Data Transfer Rate

1394A - Up to 400Mbps <br> 1394B - Up to 800Mbps

Power Source

Not Included (not required for standard applications)

Chipset ID

LSI - FW643

Special Notes

Optional power adapter specifications: 12VDC, 2000+ mA, Center positive, Type H plug

Connector 3

FireWire 800 (9-Pin, 800Mbps, Bus Power)

Connector 3 (Quantity)

1

Number of Ports

2

Interface

FireWire 400 (1394a)

Bus Type

ExpressCard

Card Type

34mm ExpressCard
