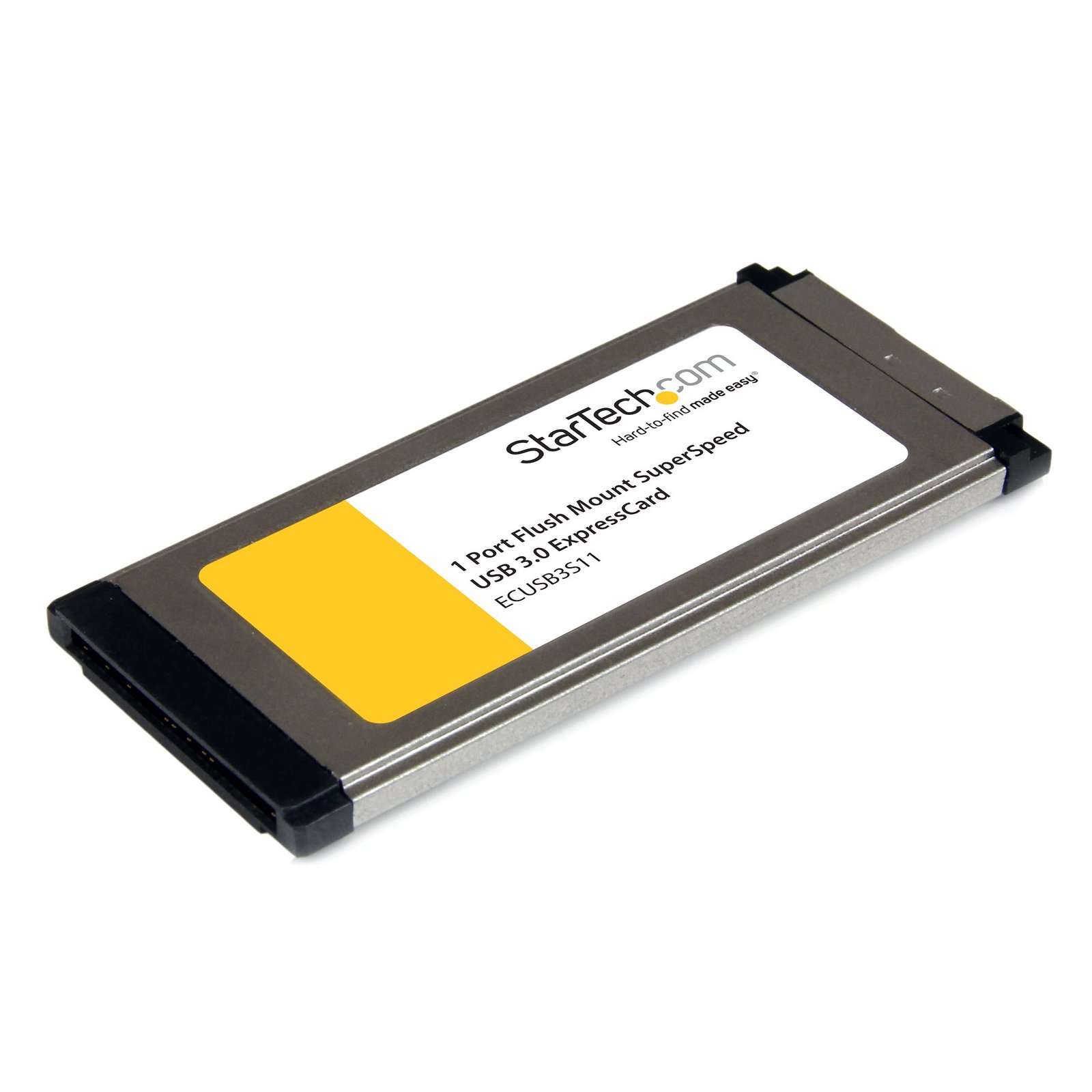

1 Port Flush Mount ExpressCard SuperSpeed USB 3.0 (5Gbps) Card Adapter with UASP Support - TAA

Specifications & Compliance

UPC

065030849890

Brand

StarTech.com

Included in Package

1 - Slim ExpressCard adapter, 1 - DC to USB Adapter Cable, 1 - 34mm to 54mm Stabilizer Bracket, 1 - Driver CD, 1 - Instruction Manual

Shipping (Package) Weight

3.8 oz [108 g]

Weight of Product

0.8 oz [24.0 g]

Product Length

3.0 in [75.0 mm]

Product Width

1.3 in [34.0 mm]

Product Height

0.2 in [5.0 mm]

Package Depth

5.1 in [13 cm]

Package Width

6.2 in [15.8 cm]

Package Height

1.2 in [30 mm]

Color

Black & Silver

Warranty

2 Years

Connector 1

ExpressCard/34

Connector 1 (Quantity)

1

Package Quantity

1

Connector 2

USB-A (5Gbps, 4.5W)

Connector 2 (Quantity)

1

Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage Temperature

-10°C to 85°C (14°F to 185°F)

Humidity

5% ~ 95% RH

Material

Steel

Chipset ID

Renesas/NEC - µPD720202

Special Notes

The maximum throughput of this card is limited by the host bus interface. If used with ExpressCard Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with ExpressCard Gen 2.0 enabled computers, the max throughput is 5 Gbps.

Number of Ports

1

Interface

USB 3.2 Gen 1 (5Gbps)

Bus Type

ExpressCard

Type and Rate

USB 3.0 (5Gbps)

System and Cable Requirements

Available ExpressCard slot

Card Type

34mm ExpressCard

UASP Support

Yes

Port Style

Integrated on Card
