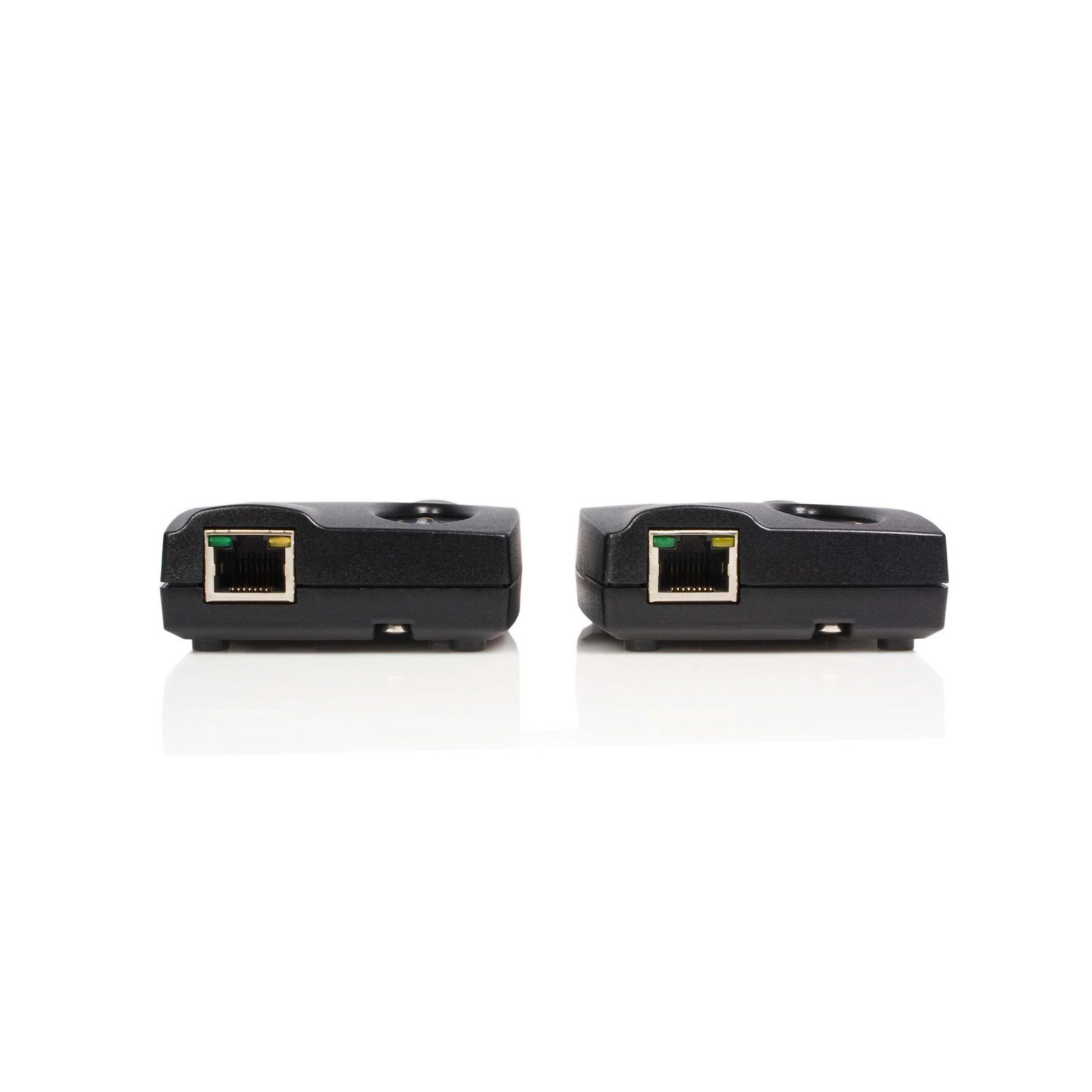

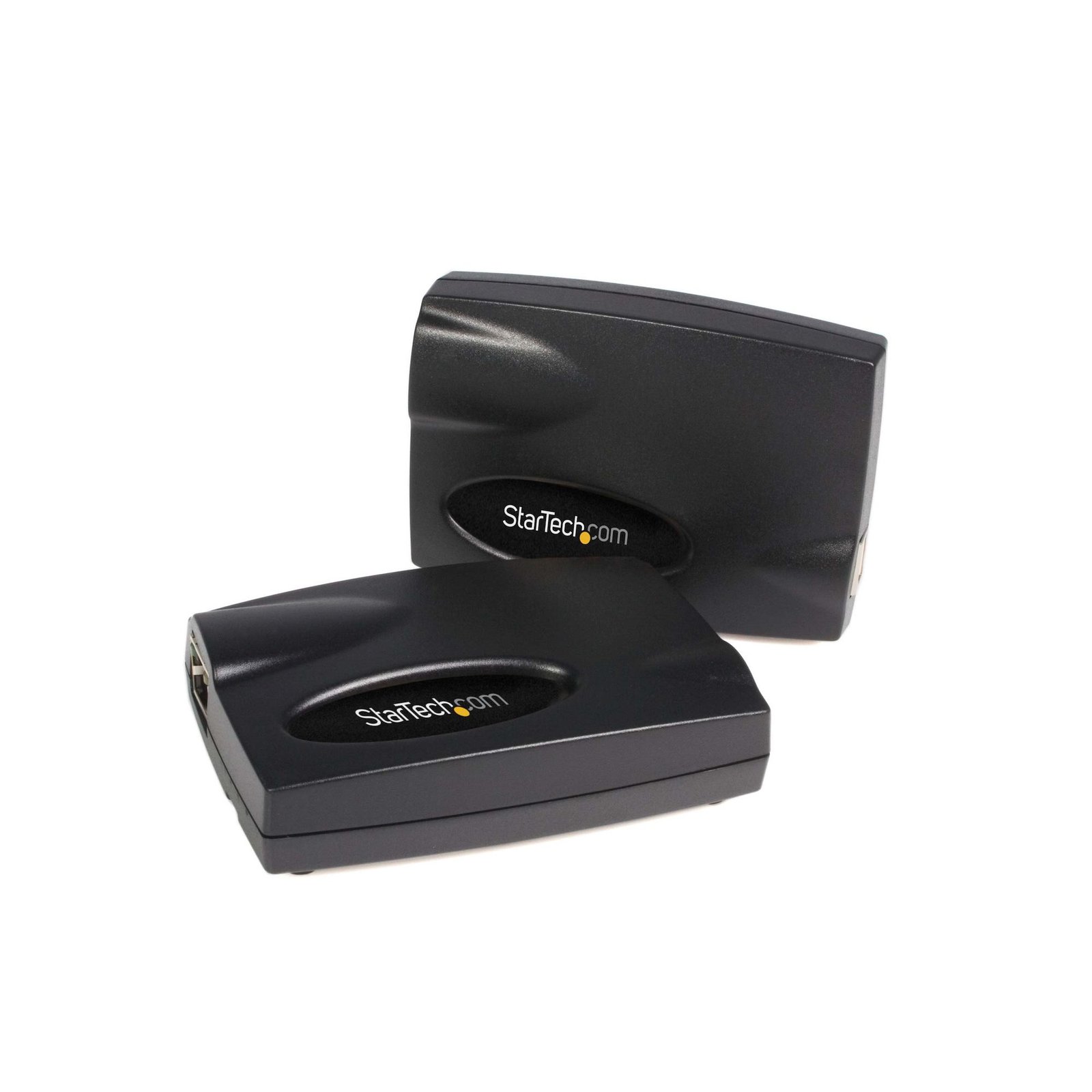

1 Port Cat 5/6 USB Extender - Up to 165 ft (50 Meters)

Specifications & Compliance

UPC

065030803519

Brand

StarTech.com

Included in Package

1 - USB Extender Local Unit, 1 - USB Extender Remote Unit, 1 - USB Cable, 1 - Instruction Manual

Shipping (Package) Weight

14.1 oz [400 g]

Weight of Product

3.5 oz [100 g]

Product Length

3.9 in [100 mm]

Product Width

2.8 in [70 mm]

Product Height

1.2 in [30 mm]

Package Depth

2.2 in [55 mm]

Package Width

9.7 in [24.6 cm]

Package Height

6.1 in [15.6 cm]

Color

Black

Warranty

2 Years

Connector 1

USB-A (480Mbps, 2.5W)

Connector 1 (Quantity)

1

Connector 2

RJ-45

Connector 2 (Quantity)

1

Operating Temperature

4 to 40

Material

Plastic

Maximum Data Transfer Rate

12 Mbps

Industry Standards

USB 1.1

Special Notes

Maximum power available to USB at the Remote Unit: 300 mA when the Local Unit is supplied with 500 mA

Number of Ports

1

Host Connector 1

USB-B (480Mbps, 2.5W)

Host Connector 1 (Quantity)

1

General Specifications

USB Hub Support: Up to 5 hubs connected to the local unit

Maximum Cable Length

164.0 ft [50 m]

Host Connector 2

RJ-45

Host Connector 2 (Quantity)

1

Max Distance

50m [164ft]

Cabling

Cat 5 UTP
