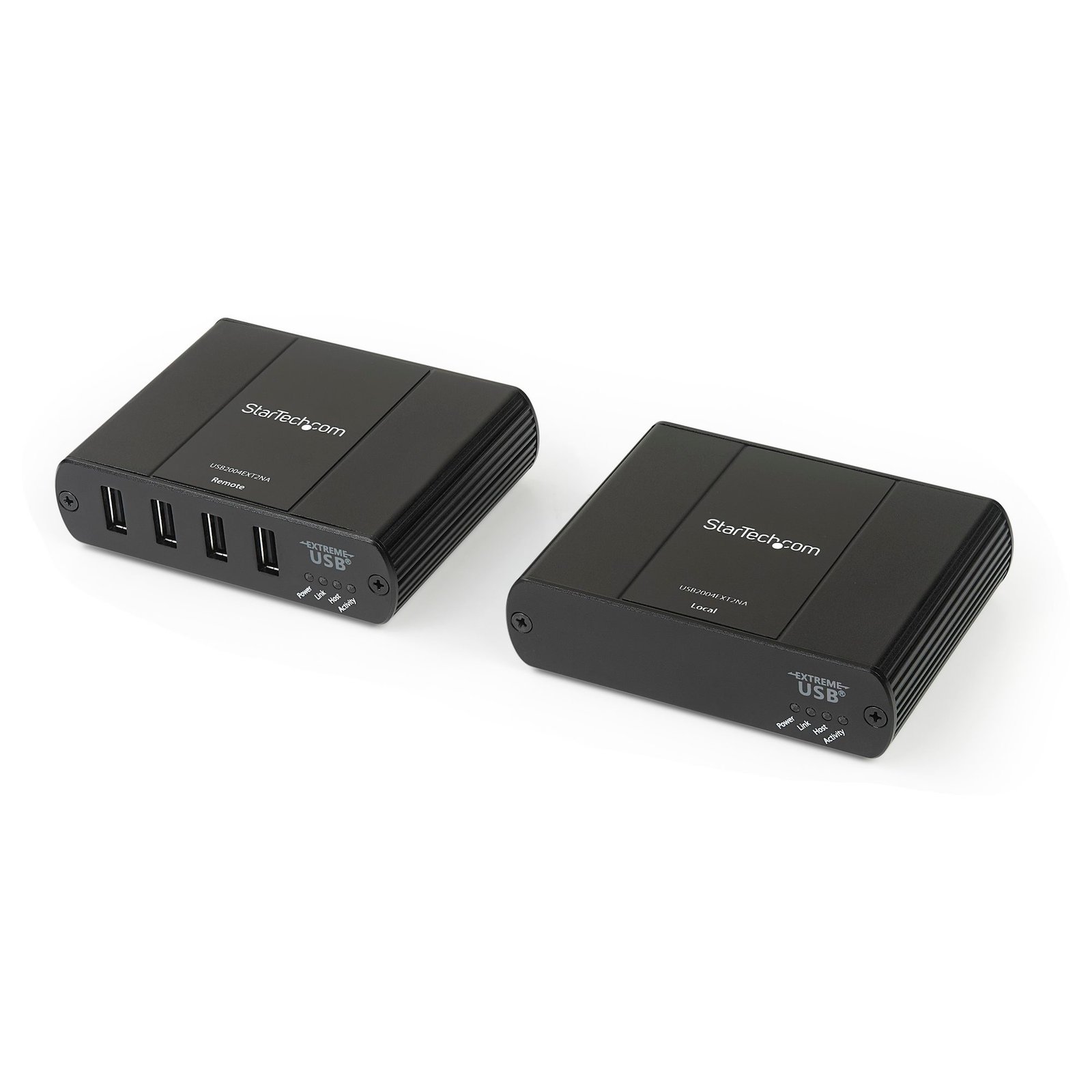

4 Port USB 2.0 Extender Hub over Cat5e/Cat6 Ethernet Cable (RJ45) - 330ft/100m Industrial Metal USB Extender Adapter Kit w/ ESD Protection
4 Port USB 2.0 Extender Hub over Cat5e/Cat6 Ethernet Cable (RJ45) - 330ft/100m Industrial Metal USB Extender Adapter Kit w/ ESD Protection - Externally Powered - 480 Mbps - Image 2

4 Port USB 2.0 Extender Hub over Cat5e/Cat6 Ethernet Cable (RJ45) - 330ft/100m Industrial Metal USB Extender Adapter Kit w/ ESD Protection - Externally Powered - 480 Mbps

$621.99

USB Extender Over CAT5e/CAT6/CAT7 | Rugged Enclosure | ESD Protection | 2-Year Warranty

SKU: USB2004EXT2NA Category:

Specifications & Compliance

UPC
065030889681
Brand
StarTech.com
Included in Package
1 - Local Unit, 1 - Remote Unit, 1 - Mounting Bracket, 1 - 5.75 ft [175 cm] USB 2.0 Cable, 1 - Universal Power Adapter with 5.6 ft [170 cm] Cable, 1 - 6 ft [180 cm] North America Power Cord, 1 - Quick Start Guide
Shipping (Package) Weight
33.3 oz [942 g]
Weight of Product
6.7 oz [190 g]
Product Length
3.9 in [100.0 mm]
Product Width
3.0 in [76 mm]
Product Height
1.0 in [26 mm]
Package Depth
9.5 in [24.2 cm]
Package Width
7.8 in [19.9 cm]
Package Height
3.1 in [79 mm]
Color
Black
Warranty
2 Years
Connector 1
USB-A (480Mbps, 2.5W)
Connector 1 (Quantity)
4
Package Quantity
1
Connector 2
RJ-45
Connector 2 (Quantity)
1
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Humidity
10~90% RH
Material
Aluminum and Plastic
Maximum Data Transfer Rate
480 Mbps
Power Source
AC Adapter Included
Input Voltage
100 - 240 AC
Output Voltage
24 DC
Power Consumption
15
LED Indicators
1 - Link, 1 - Host Connection, 1 - Activity, 1 - Power, 4 - USB Link
Number of Ports
4
Input Current
0.58 A
Output Current
1
System and Cable Requirements
USB enabled computer system with available USB port
Host Connector 1
USB-B (480Mbps, 2.5W)
Host Connector 1 (Quantity)
1
Plug Type
M
Center Tip Polarity
Positive
Maximum Cable Length
328.1 ft [100 m]
Host Connector 2
RJ-45
Host Connector 2 (Quantity)
1
Cabling
Cat 5 UTP

Questions & Answers

What DC barrel connector power plug types do StarTech.com products use, and what are their dimensions?
StarTech.com DC barrel connector plug types are defined in the “Plug Type” field of the technical specifications, using a letter code that specifies the connector’s outer diameter (OD) and inner diameter (ID) in millimeters for power adapter compatibility. Explanation: In StarTech.com technical specifications, the “Plug Type” field is a standardized identifier for the exact DC barrel connector size required to power a product. Each plug type is assigned a letter code that corresponds to a specific combination of outer diameter (OD) and inner diameter (ID), measured in millimeters. Common DC barrel plug type dimensions Plug Type OD ID A 2.35 mm 0.7 mm B 4.0 mm 1.7 mm C 4.75 mm 1.7 mm H 3.4 mm 1.3 mm L 5.0 mm 2.5 mm M 5.5 mm 2.1 mm N 5.5 mm 2.5 mm The DC barrel connector plug type must match both the outer diameter and inner diameter exactly. A mismatch between the StarTech.com product requirement and the power adapter connector can prevent proper fit or stable power delivery, which may result in device startup failure or intermittent operation. The plug type defines only the physical connector size. The plug type does not define electrical power requirements such as voltage, current, or polarity. The power adapter used with a StarTech.com product must match the product’s specified electrical requirements. Using an incompatible power adapter can cause device malfunction or permanent damage. This standardized DC barrel connector plug type system enables IT professionals and procurement teams to verify connector dimensions, ensure power adapter compatibility, standardize hardware deployments, and identify the correct replacement power supply for StarTech.com products.
