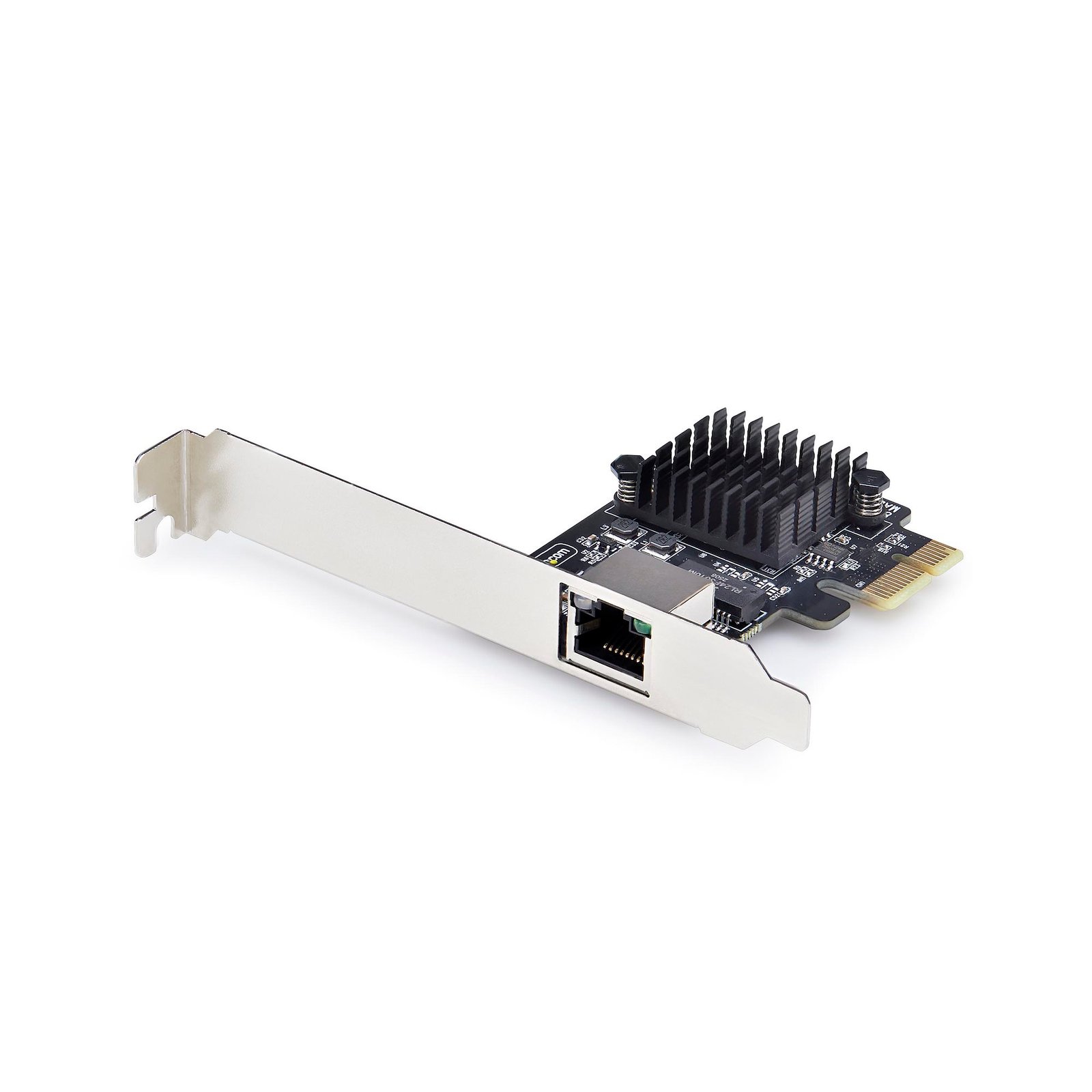

1-Port 5G Gigabit PCIe Network Adapter Card, 5G/2.5G/1G/100M/10M PCI Express LAN Card, Realtek RTL8126, Windows and Linux, TAA Compliant

Questions & Answers

I am having issues with my new network interface card (NIC) and my on-board NIC is still enabled. What do I do in Windows?
Sometimes an on-board network interface card (NIC) conflicts with a new NIC. In these cases it is best to disable the on-board NIC. The best way to disable your on-board NIC is to go into your BIOS and disable it there if possible. To do this, consult your motherboard manual. You can also disable any NIC in Windows. Here is how you do this: First click Start , or, in Windows 10 and 8, hold down the Windows key and press X . Then click Control Panel . Windows 10 Click Network and Internet . Click Network and Sharing Center . On the left, click Change adapter settings . Right-click the NIC that you would like to disable and select Disable . Windows 8 Click Network and Sharing Center . On the left, click Change adapter settings . Right-click the NIC that you would like to disable and select Disable . Windows 7 Click Network and Internet . Click Network and Sharing Center . On the left, click Change adapter settings . Right-click the NIC that you would like to disable and select Disable . Windows Vista Click Network and Sharing Center . On the left, click Manage network connections . Right-click the NIC that you would like to disable and select Disable . Windows XP Click Network Connections . Right-click the NIC that you would like to disable and select Disable .

Why do I have speed or connectivity issues?
If you are experiencing speed or connectivity issues, it is best to set a specific speed at half or full duplex in your settings. You can set your network adapter to perform at a certain speed, but the device that the adapter is connected to (whether it is a router, switch, or computer) must also be able to perform at the same speed. Note : You must log in as the local administrator before you continue. To open Device Manager: Press Windows key + R . Type devmgmt.msc . Click OK . Open the Networking adapters section. Right-click the network adapter that you want to change and select Properties . Click the Advanced tab. Scroll down to Speed & Duplex . By default, it is set to Auto-Negotiate . Select any of the speeds that you see in the list. Click OK and restart your computer.

Can I use my network card for a Preboot Execution Environment (PXE)?
StarTech.com does not support a Preboot Execution Environment (PXE) as this requires third-party software. However, our devices can be used as long as the following conditions are met: The BIOS must support PXE. The BIOS must see the card. The environment must have drivers for the chipset used in the card. If using a USB networking card, the environment must have support for USB devices as well.

How to Set a Virtual Local Area Network (VLAN) Tag With a Network Card in Windows
Virtual local area network (VLAN) tagging requires that the network interface card (NIC) and the router or switch that you use support protocol IEEE 802.1q. Depending on the NIC, you can set your VLAN ID in Device Manager. Not all NICs that support VLAN tagging have this option. Setting your VLAN ID in Device Manager Note: Log in as the local administrator before continuing. To open Device Manager: Press Windows key + R Type devmgmt.msc Click OK . In Device Manager, open Network adapters . Right-click on the NIC and choose Properties . Click the Advanced tab. Scroll down to VLAN ID . Set the ID that you would like the NIC to have and click OK . Setting up your VLAN Tagging and Setting a VLAN ID How you perform this task depends on your router or switch. Consult the manual or manufacturer of your router or switch for more details. In your router or switch, you can VLAN tag a device by the VLAN ID if you set one previously, or by the MAC address of the computer. Your router or switch will list all IP devices by MAC address. For products related to this article, click here .
