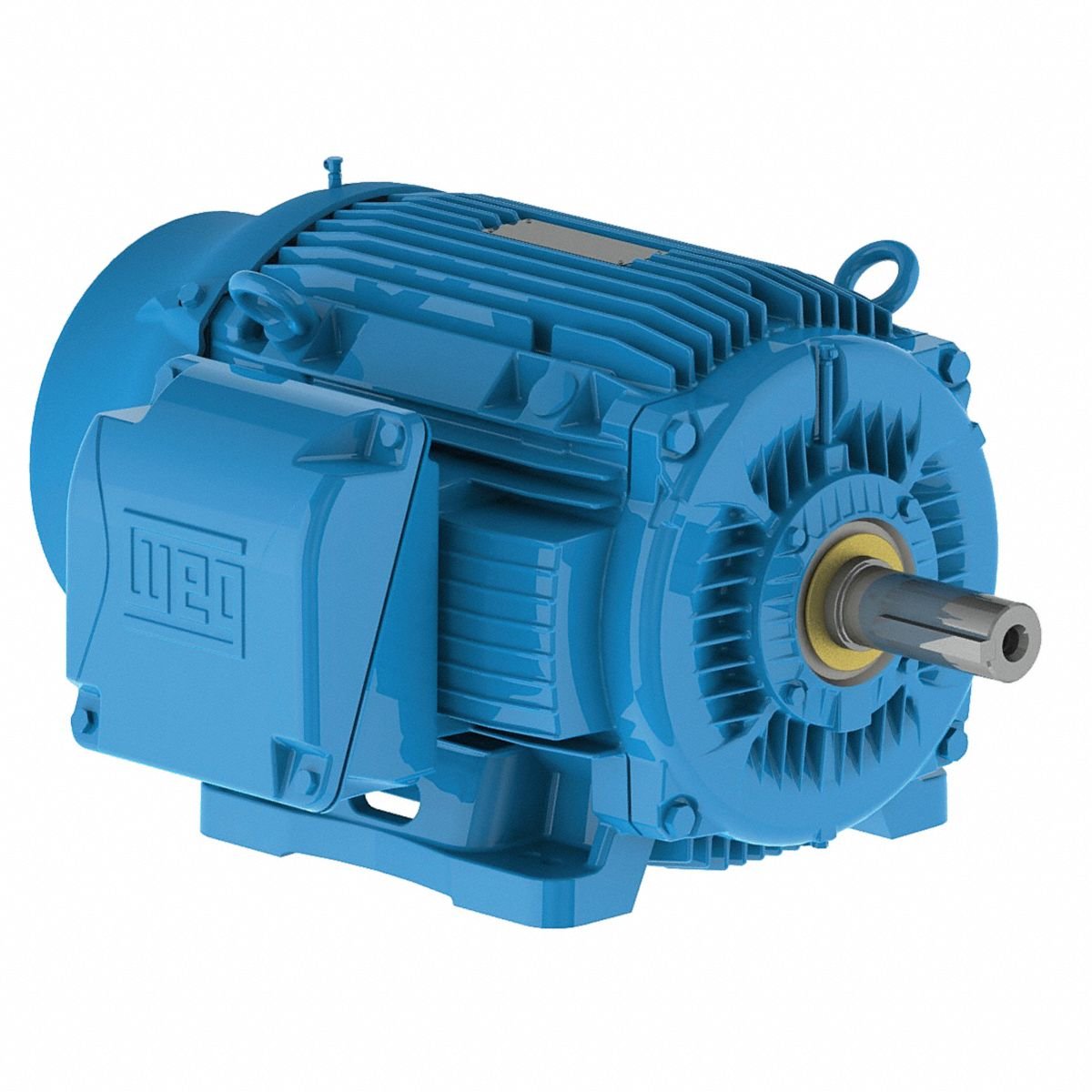

WEG Severe Duty Motor: 20 hp Horsepower, 1,800 RPM RPM, 460V AC, 256T Frame Size, Rigid Base, TEFC

Specifications & Compliance

Manufacturer #

02018ST3QAP256T-W22

Brand

WEG

Nameplate Horsepower @ 60 Hz

20 hp

Nameplate RPM @ 60 Hz

1,800 RPM

Nameplate Voltage @ 60 Hz

460V AC

Frame Size

256T

Full Load Amps @ 60 Hz

24.1 A

Motor Enclosure Type (Abbreviated)

TEFC

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1.25

Output Shaft (Dia x L)

1-5/8 in x 4 in

Frame Family [B]

NEMA 250
