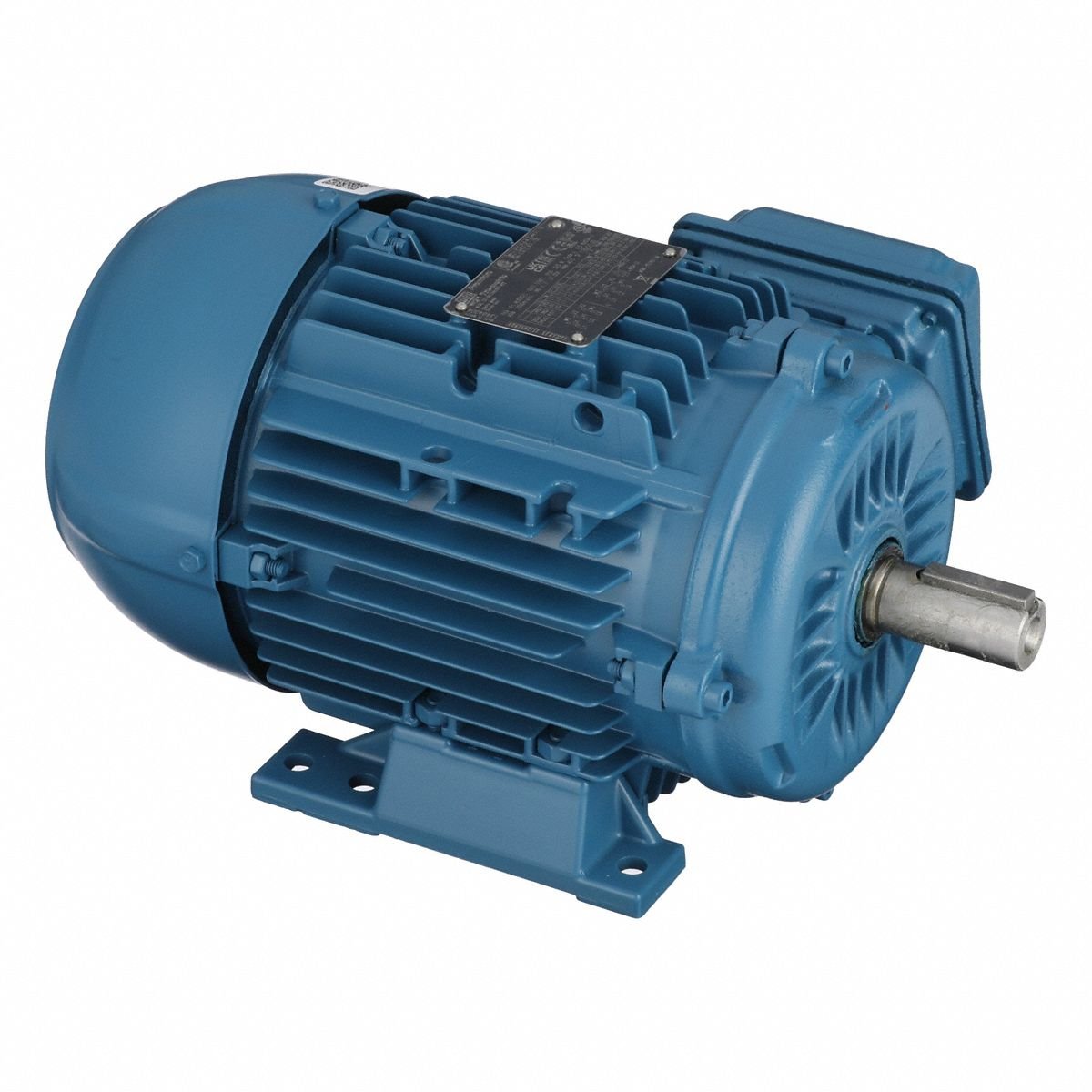

WEG Metric Motor: 1 1/2 hp, Rigid Base Mount, 90S Frame Size, Totally Enclosed Fan Cooled, 460V AC

Specifications & Compliance

Manufacturer #

13984004

Brand

WEG

Nameplate Horsepower @ 60 Hz

1-1/2 hp

Nameplate RPM @ 60 Hz

1,765 RPM

Frame Size

90S

Nameplate Voltage @ 60 Hz

460V AC

Full Load Amps @ 60 Hz

2.05 A

Motor Enclosure

TEFC

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1.25

Output Shaft (Dia x L)

24 mm x 50 mm
