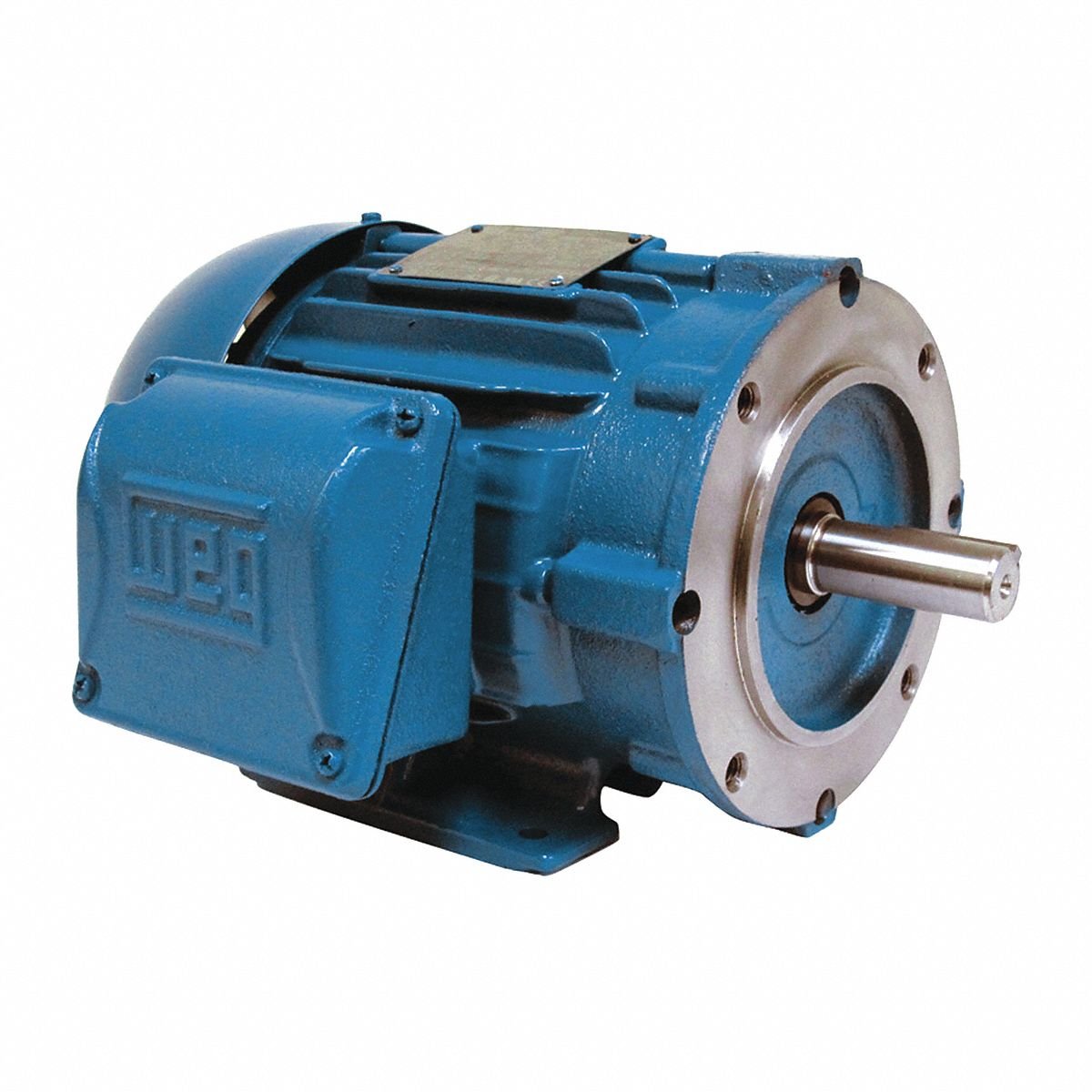

WEG General Purpose Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 15 hp, 208-230/460V AC

Specifications & Compliance

Manufacturer #

01536ET3E215TC-W22

Brand

WEG

Nameplate Horsepower @ 60 Hz

15 hp

Nameplate RPM @ 60 Hz

3,480 RPM

Frame Size

213-5TC

Nameplate Voltage @ 60 Hz

208-230/460V AC

Full Load Current @ 60 Hz

37.7-34.1/17.0 A

Motor Enclosure

TEFC

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1.25

Output Shaft (Dia x L)

3-3/8 in

Frame Family

NEMA 210

Motor Enclosure Type

Totally Enclosed Fan Cooled

Mounting Type

Rigid Base
